ASUS GUI RAID Manager: Basic Operations at Startup
3.2 Connecting and Disconnecting from a Disk Array 3-5

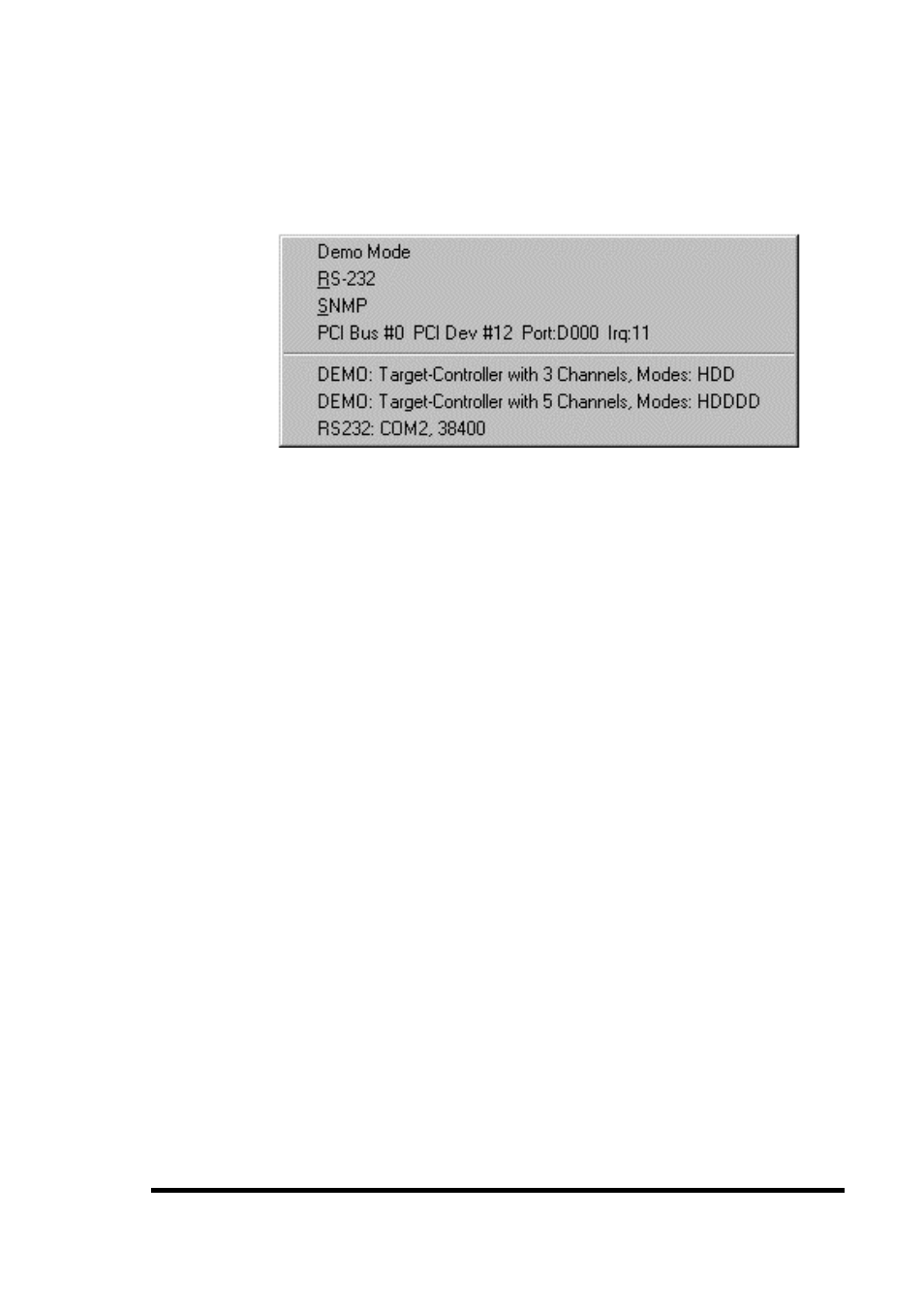

Click on the Connect/Open command button. The
following submenu appears on the screen:
Note that there will be one PCI Bus entry for each PCI-to-
SCSI controller installed. If none are installed, then no PCI
Bus entries will be displayed.
2. Select the corresponding entry for a PCI-to-SCSI controller.
Based on the previous figure, the entry should be PCI Bus
#0 PCI Dev#12 Port:D000 Irq:11.
The enabling of the toolbar buttons signifies a successful
connection.
4 4Connecting to a SCSI-to-SCSI controller from the local host
1. From the File menu, select Connect.
-or-
Click on the Connect/Open command button. The
following submenu appears on the screen:
