ASUS GUI RAID Manager: Basic Operations at Startup
3.6 Working with Windows
3-29
How Does SAF-TE work?

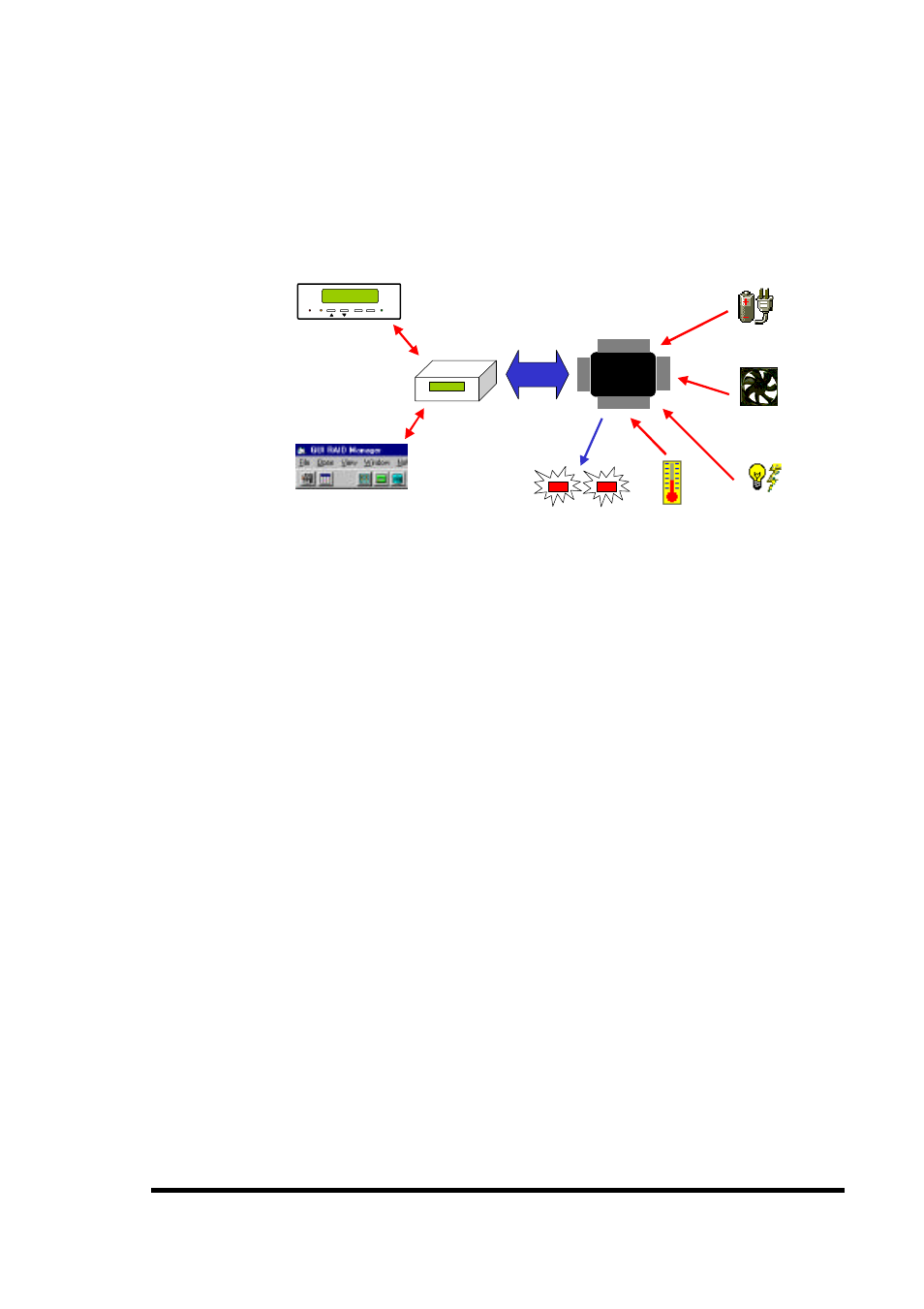

The SAF-TE device (often a back plane within a drive-bay
enclosure) must occupy a connector on one of the drive
channels’ SCSI cables. The presence of a SAF-TE device
will be detected and its presence will be displayed in the
GUI RAID Manager program in place of the Fault Bus
icon.
SAF-TE Support
Drive Status
Indicators
UPS Failure
Signal Input
Power Supply
Failure
Signal Input
Cooling Fan
Failure
Signal Input
Temperature Alert
Signal Input
SAF-TE
Chipset
SCSI
RAID
Controller
Front Panel
error alert
GUI RAID Manager
error alert
•
SAF-TE chipset connects to the drive channel of the
controller together with the other SCSI drives.
