ASUS GUI RAID Manager: Basic Operations at Startup
3.2 Connecting and Disconnecting from a Disk Array 3-11
From the COM Port# drop-down list box, specify which
COM port on the local host is used to connect to the disk
array system. To select, click on the down-arrow button at
the right of the box, then select the option you need.
From the Baud Rate drop-down list box, select the baud rate
setting on the RS-232 port of the controller. To select,
perform the same procedure described previously. If you
wish to modify the baud rate setting on the controller, use
the on-board console interface or the GUI RAID Manager.
For information on the latter, see Chapter 4, Array
Management.
6. Click OK.
The enabling of the toolbar buttons signifies a successful
connection.
4 4Connecting to a SCSI-to-SCSI controller from a remote
station (via telephone line)
1. From the File menu, select Connect.
-or-

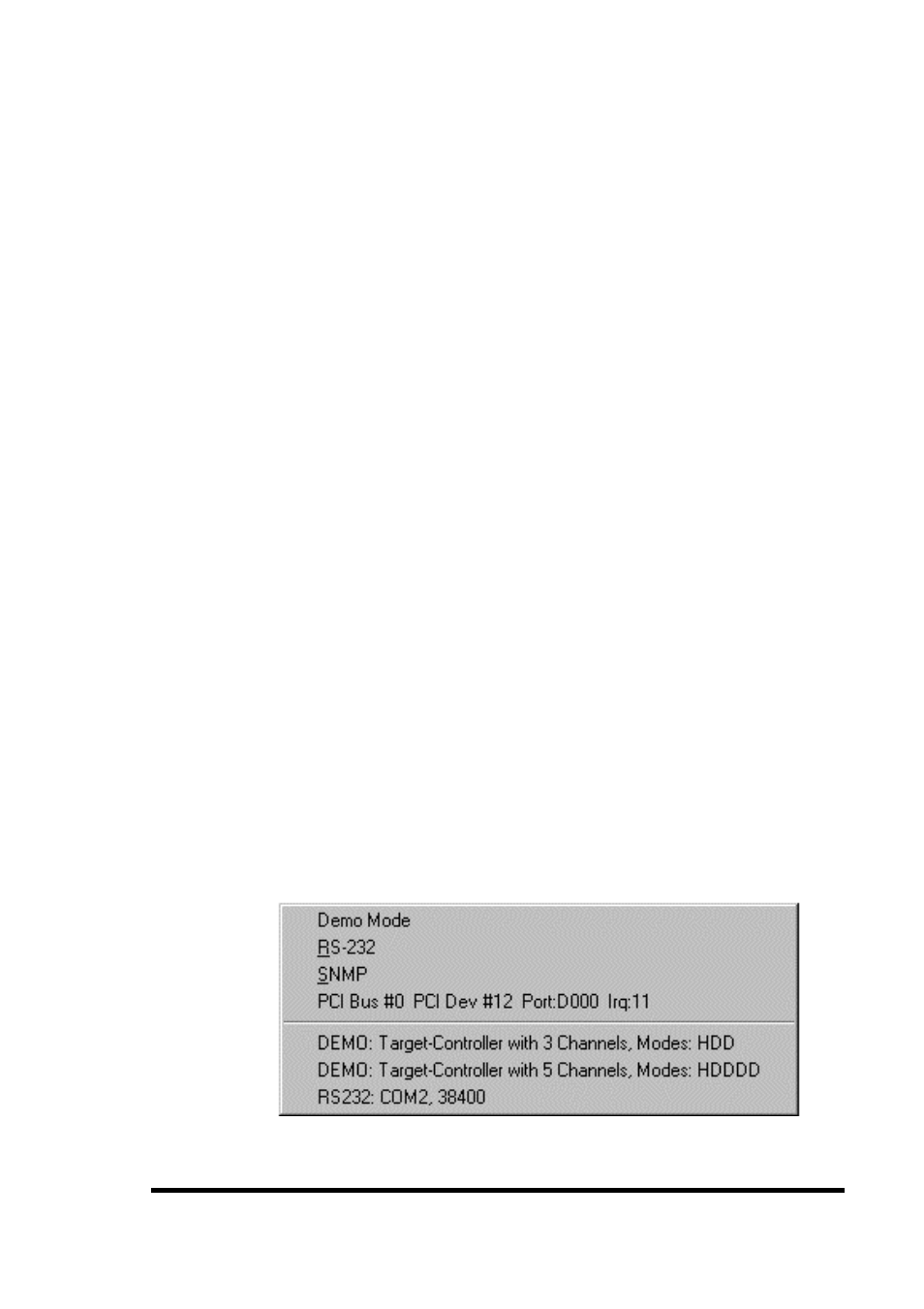

Click on the Connect/Open command button. The
following submenu appears on the screen:
