4 scsi drive’s status – Asus PCI-DA2200 User Manual
Page 70
8-4
ASUS PCI-DA2200 User’s Manual
REBUILDING Rebuilding the logical drive.
DRV ABSENT One of the drives cannot be
detected.
INCOMPLETE Two or more drives failed in the
logical drive.
#OnLine
Total drive members in the logical drive.
#STB
Standby drives available for the logical drive. This
includes all the spare drives available for the logical
drive.
#Fail
Failed drive member in the logical drive.
Name
Logical drive name.

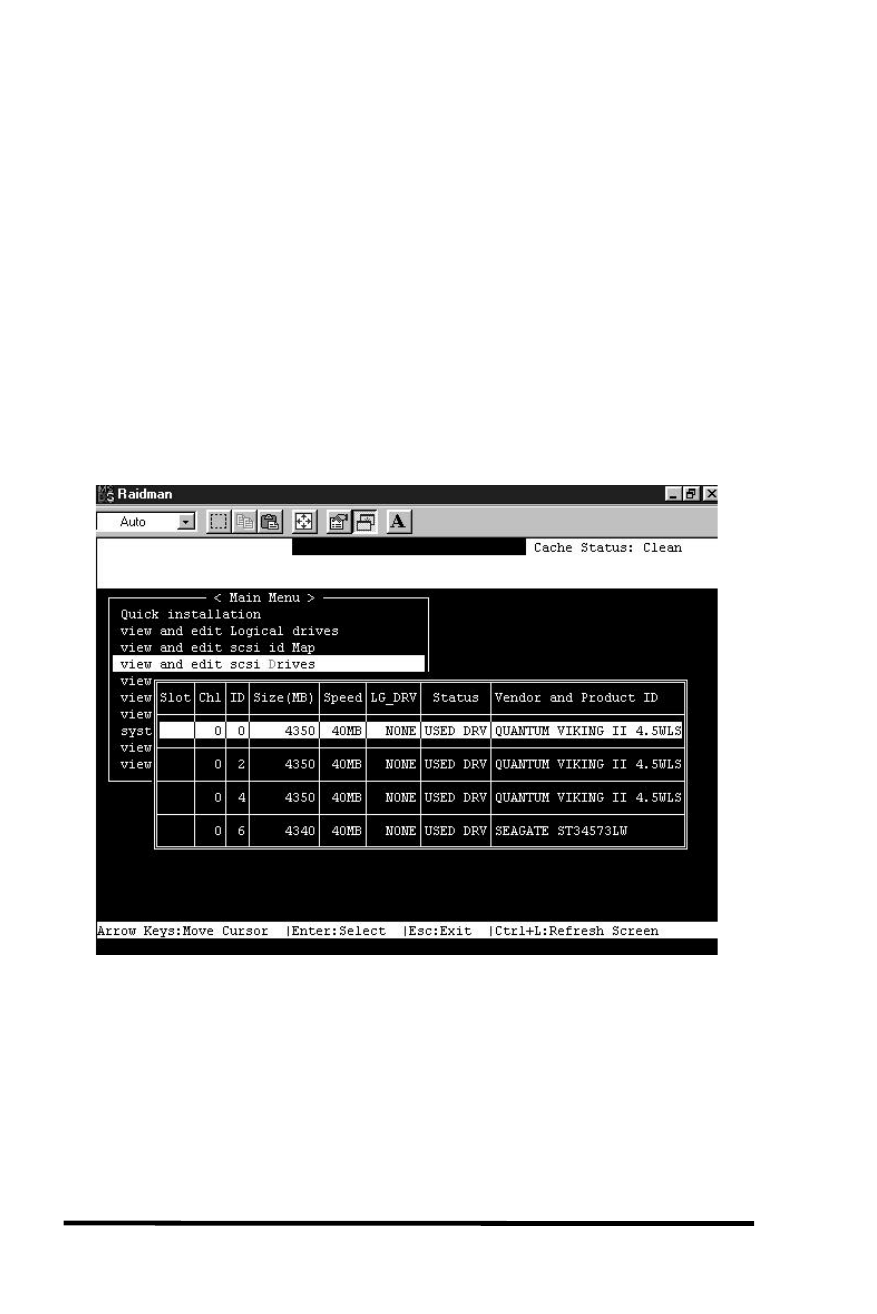

8.1.4 SCSI Drive’s Status
Slot
Slot number of the SCSI drive.
Chl
The SCSI Channel of the connected drive.
ID
The SCSI ID of the drive.
Size (MB)
Drive Capacity.
