ASUS GUI RAID Manager: Basic Operations at Startup
3-12 3.2 Connecting and Disconnecting from a Disk Array

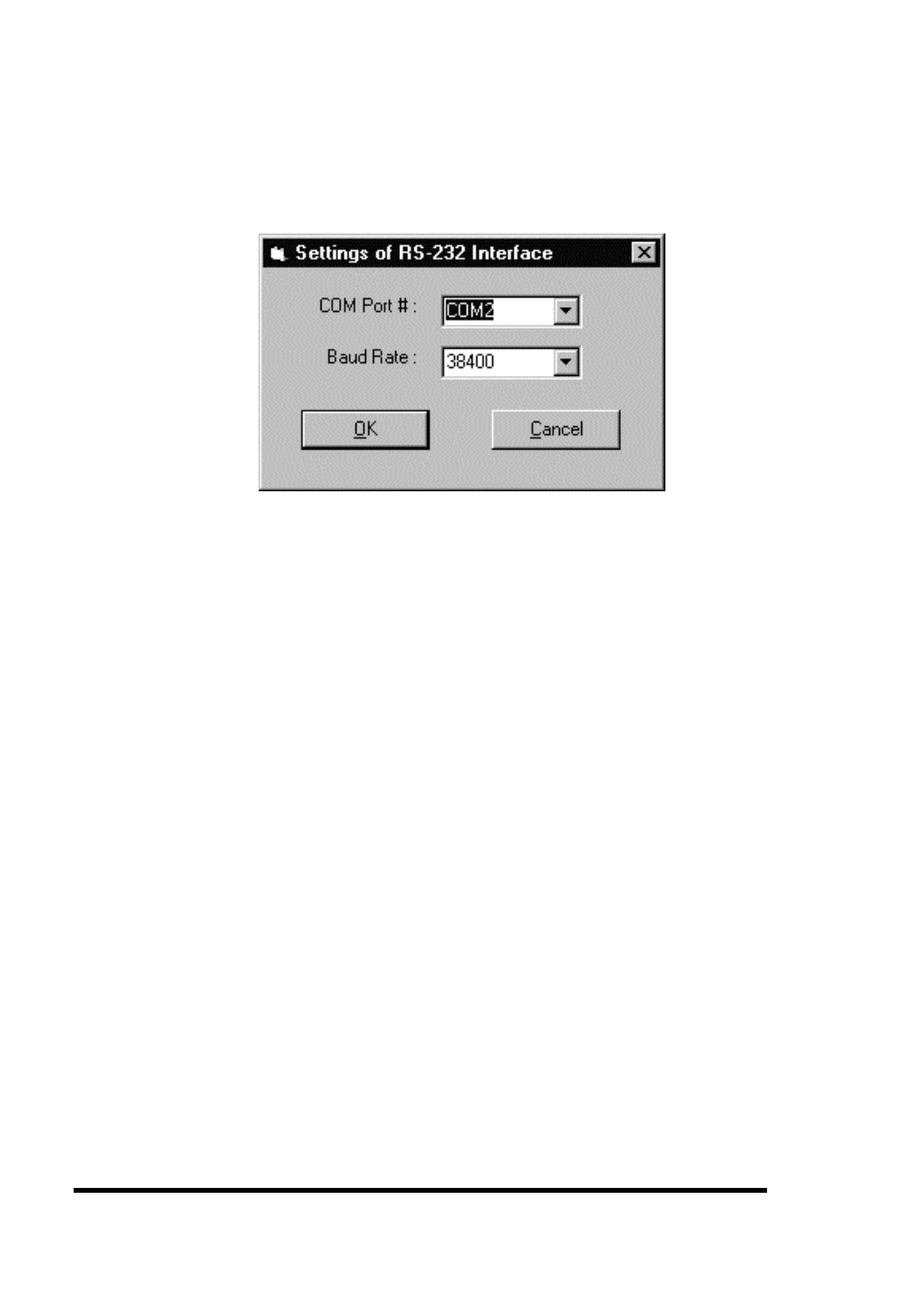

2. Select RS-232. The Settings of RS-232 Interface dialog box
appears on the screen:
3. From the COM Port# drop-down list box, select which
COM port on your GUI RAID Manager station you
connected the modem. To select, click on the down-arrow
button at the right of the box, then select the option you
need.
4. From the Baud Rate drop-down list box, specify the baud
rate of the modem connected to your GUI RAID Manager
station. To select, perform the same procedure described in
step 3.
5. Click OK.
The enabling of the toolbar buttons signifies a successful
connection.
4 4 Disconnecting from the disk array system
•
From the File menu, select Disconnect.
All toolbar buttons, except the Connect/Open and Notification
command buttons, turn gray signifying disconnection from the
current disk array system.
