4-6 ASUS PCI-DA2200 User’s Manual

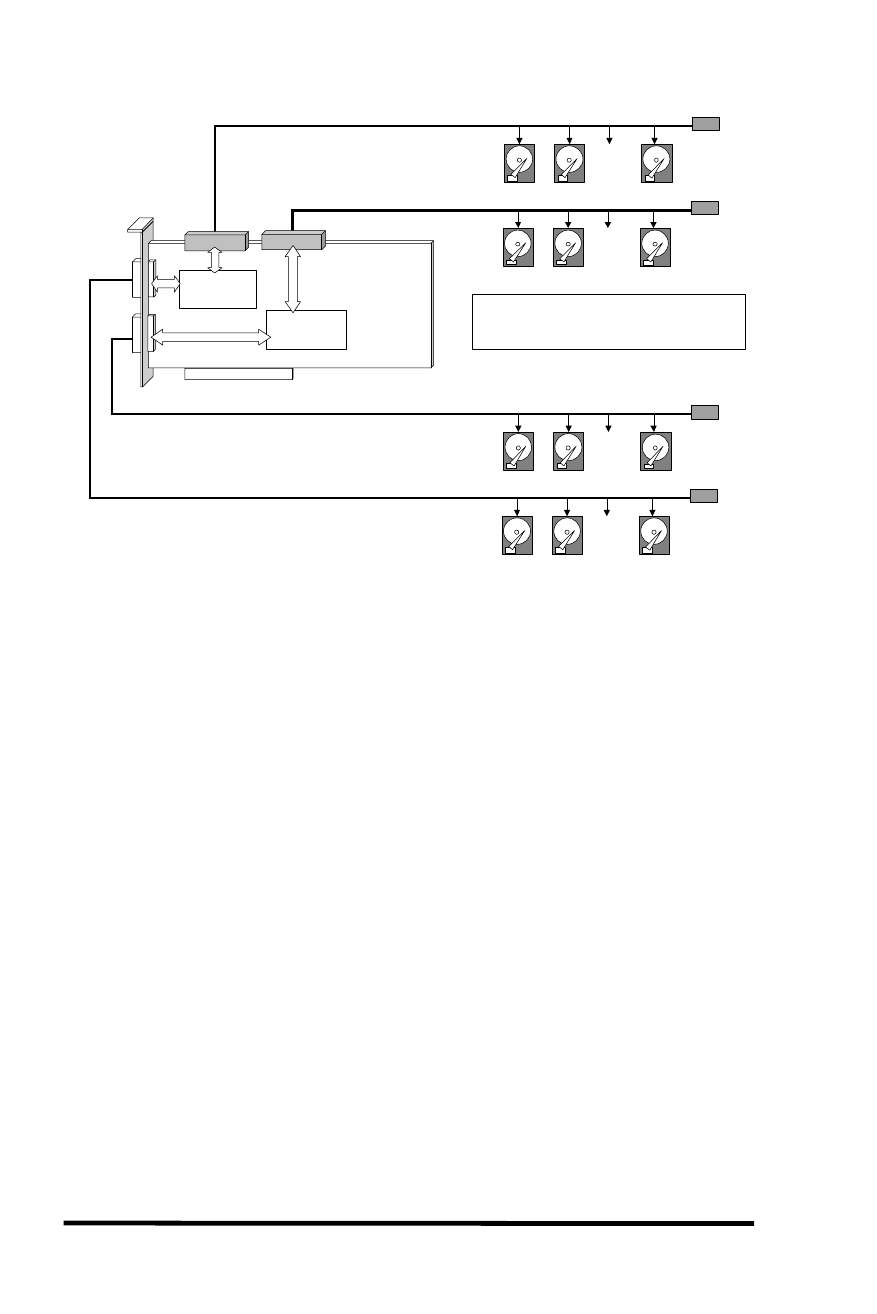

4.4.3 Mixing Internal and External Drives
…..
SCSI cable
* All drives, terminators and SCSI cables
should use Ultra2 Wide SCSI (LVD)
compliant devices only.
Ultra2 Wide SCSI Bus (LVD)
Terminator
Disabled
Terminator
Disabled
CH0
CH1 CH0
CH1
External
LVD
Terminator
…..
SCSI cable Ultra2 Wide SCSI Bus (LVD)
External
LVD
Terminator
…..
SCSI cable Ultra2 Wide SCSI Bus (LVD)
External
LVD
Terminator
…..
SCSI cable Ultra2 Wide SCSI Bus (LVD)
External
LVD
Terminator
Internal and External Channel 0 totally Up to 15 drives
Internal and External Channel 1 totally Up to 15 drives
The termination should be disabled if both internal and external SCSI
connectors of the same channel are being used.
All devices (including SCSI drives, cables and terminators) should be
Ultra2 Wide LVD SCSI compliant. It is not recommended to connect any
Single-ended devices to the LVD drive SCSI bus directly.
