ASUS GUI RAID Manager: Basic Operations at Startup
3.6 Working with Windows 3-35

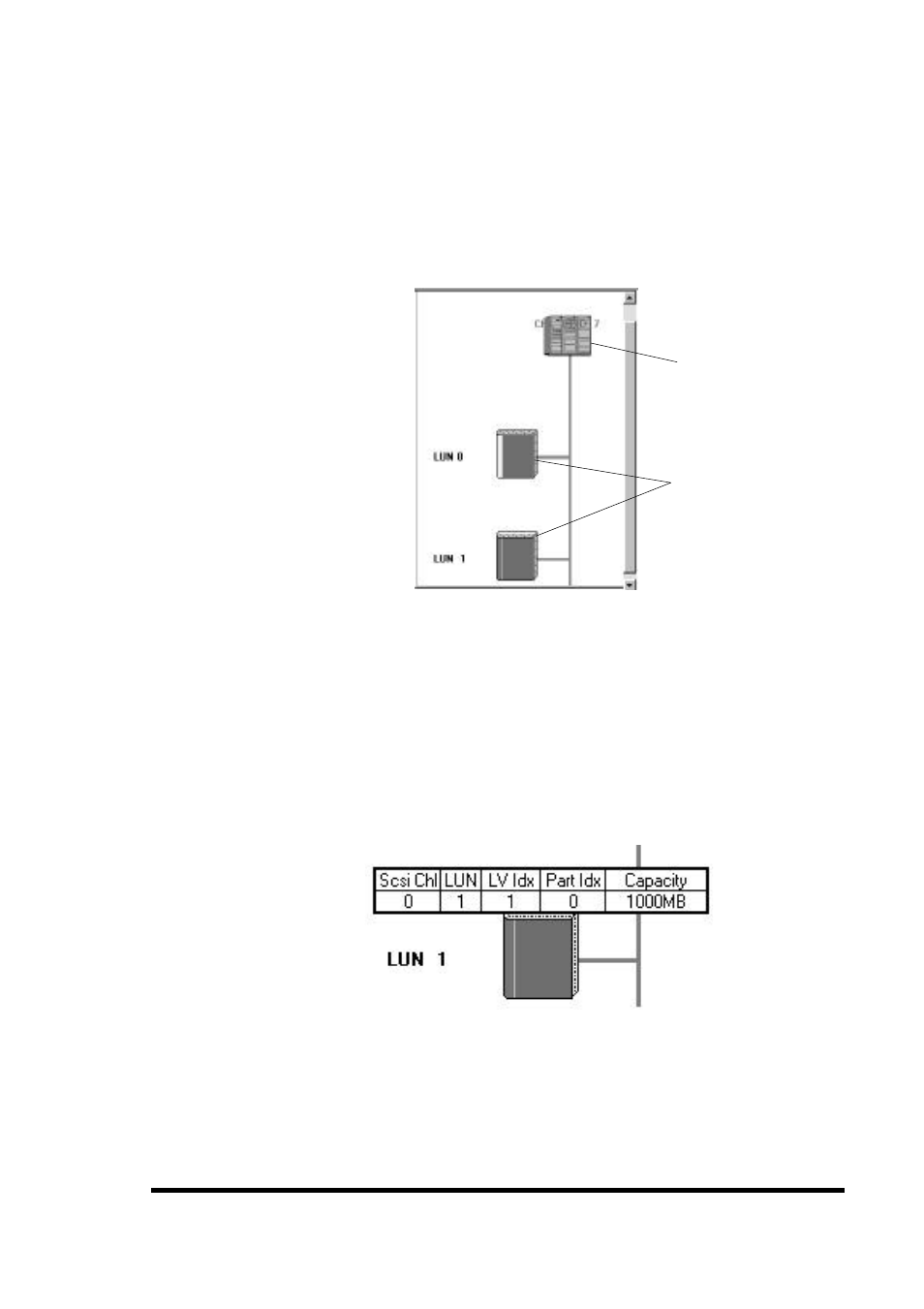

To display the Host LUN Assignment window, you can either
click on the Host LUN Assignment command button or select
the Host LUN Assignment command from the Open menu. A
window similar to the following appears on the screen:
Host Channel
LUN ID Number
LUN Mapping
This window displays the available host channels and their
respective LUN assignments. LUNs with mapped volumes or
partitions appear with book icons on their connectors. These
icons are similar to those used for logical volumes only that they
appear smaller. If you need information on any of these
mappings, just place the mouse pointer on the target book icon.
A table similar to the following appears on the screen:
This table displays the SCSI number for the respective host
channel, the LUN number, the index number of the logical
volume used in this mapping, the partition index, and the
capacity.
