4.3.12 Alarm History and Factors

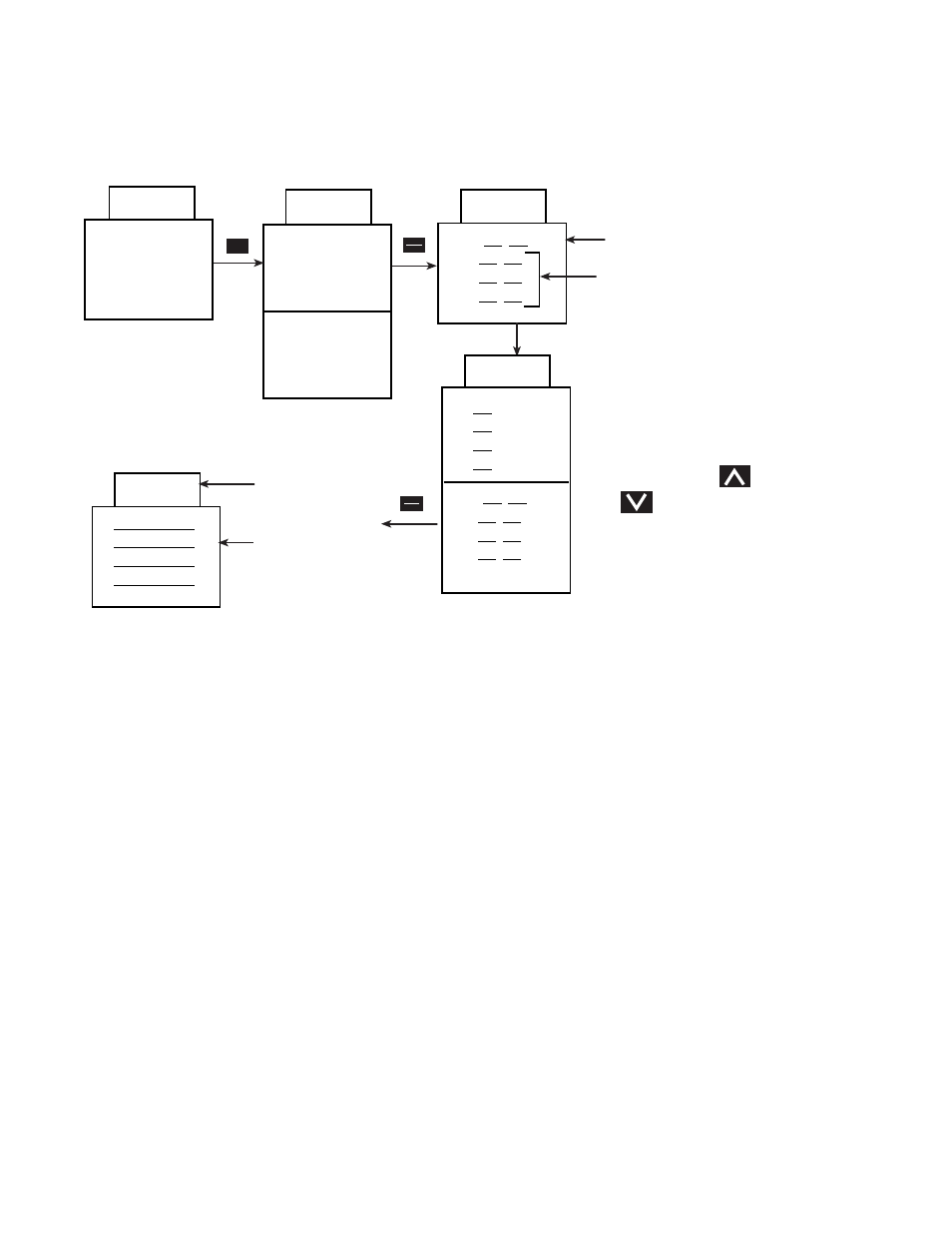

Select 8. Alarm Cause on the Program Menu screen, to display the alarm history.
Press FUNC/DATA to display troubleshooting information for the alarm selected.
60.00
1.DATA SETTING
2.DATA CHECK
3. OPR MNTR
4. I/O CHECK
5. MAINTENANCE
6. LOAD FCTR
7. ALM INF
> 8. ALM CAUSE
60.00
0.1=xxx xxx
-1=xxx xxx
-2=xxx xxx
-3=xxx xxx
RUN
PRG > PRG MENU
F/D > LED SHIFT
FWD
60.00
Lastest alarm
Alarm history
60.00
5=xxx
4=xxx
3=xxx
2=xxx
0.1=xxx xxx
-1=xxx xxx
-2=xxx xxx
-3=xxx xxx
Multiple alarms
(simultaneously occuring alarms)
Move the cursor using
and to select one of the
alarm occured
Alarm code of the
selected alarm
Alarm occurence factor
of the selected alarm
xxxxxxxxxxxxx
xxxxxxxxxxxxx
xxxxxxxxxxxxx
xxxxxxxxxxxxx
