GE Industrial Solutions AF-300 P11 User Manual
Page 147
13-4
Data subject to change without notice 7/07. © 2007 GE Drives
Name
Relay Output Card
Type
Card type
OPCG11SRY
Unit type
Function
• Converts transistor output signals from drive control output terminals Y1 to Y4 to relay (1SPDT) output signals.
Specifications
Input
None
Output
Four-channel contact (12 terminals from Y1A to Y4C) 250 VAC, 0.3A, ocs dia. = 0.3
Power source
The power source to drive the relay card is supplied from the drive.

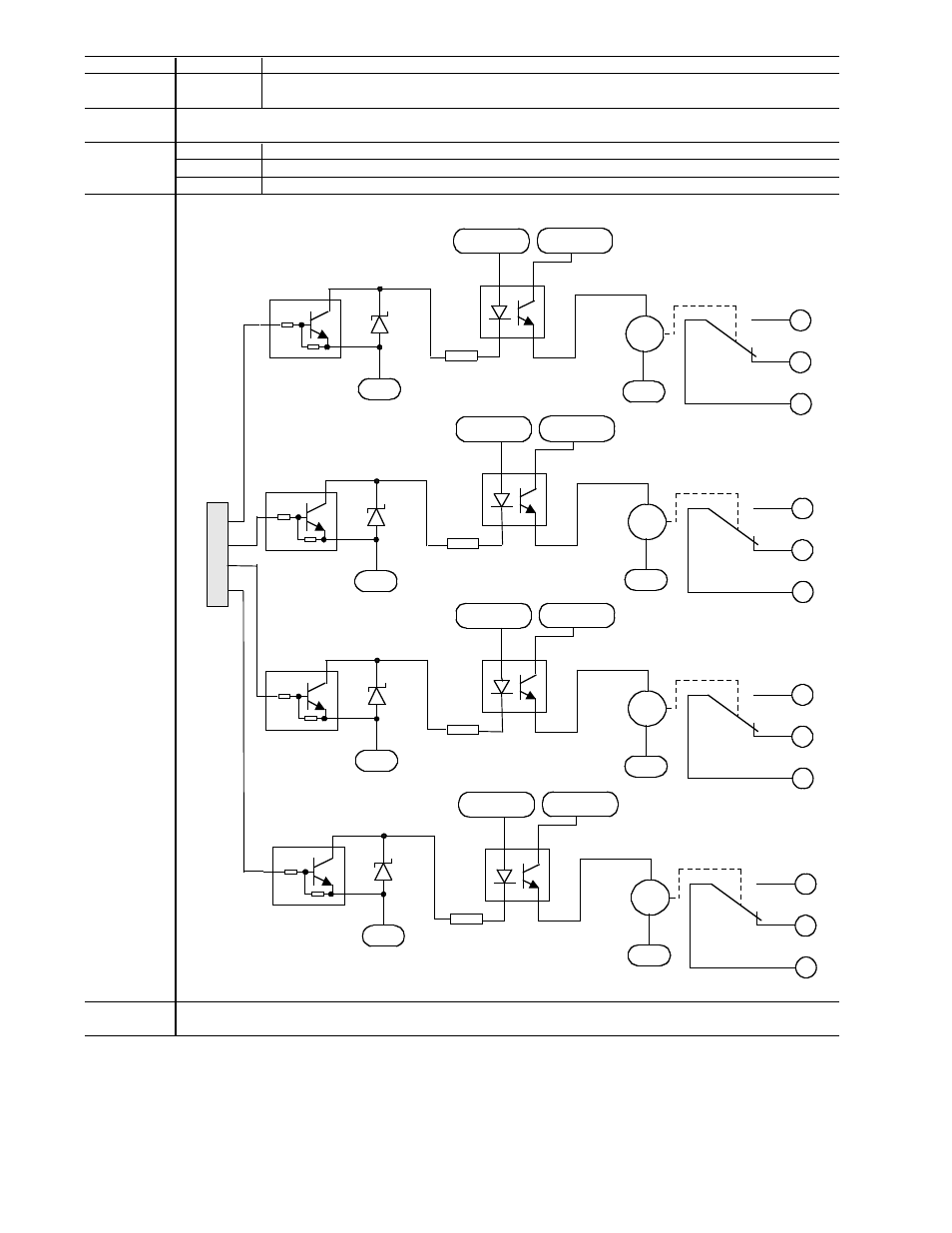

Connection
diagram
Remarks
• Includes 4 relay output circuits
RY
+ 13Vdc
5G
Y1A
Y1C
Y1B
5G
5G
5G
Connector
+ 24Vdc
CM
RY
+13Vdc
Y2A
Y2C
Y2B
+24Vdc
CM
RY
+13Vdc
Y3A
Y3C
Y3B
+24Vdc
CM
RY
+13Vdc
Y4A
Y4C
Y4B
+24Vdc
CM
