GEl-100343

1.3.2.

Bricks:

aboutDGFC

DGFC Win+Drive:

FWA:

47
48

is a programming language implemented on the DGFC. With this lan-
guage it is possible to make an application by connecting elementary

blocks (Bricks) together.

is a graphic programming interface for the DGFC. This allows you to
make an application by connecting graphically the blocks. When this
document refers to Bricks, the same considerations may be made also
for Win+Drive, unless otherwise specified.

(Fixed Word Area) is a data area of the DGFC where the slave DGFC
receives/transmits its information. The figure below shows how it is
divided:

FWA

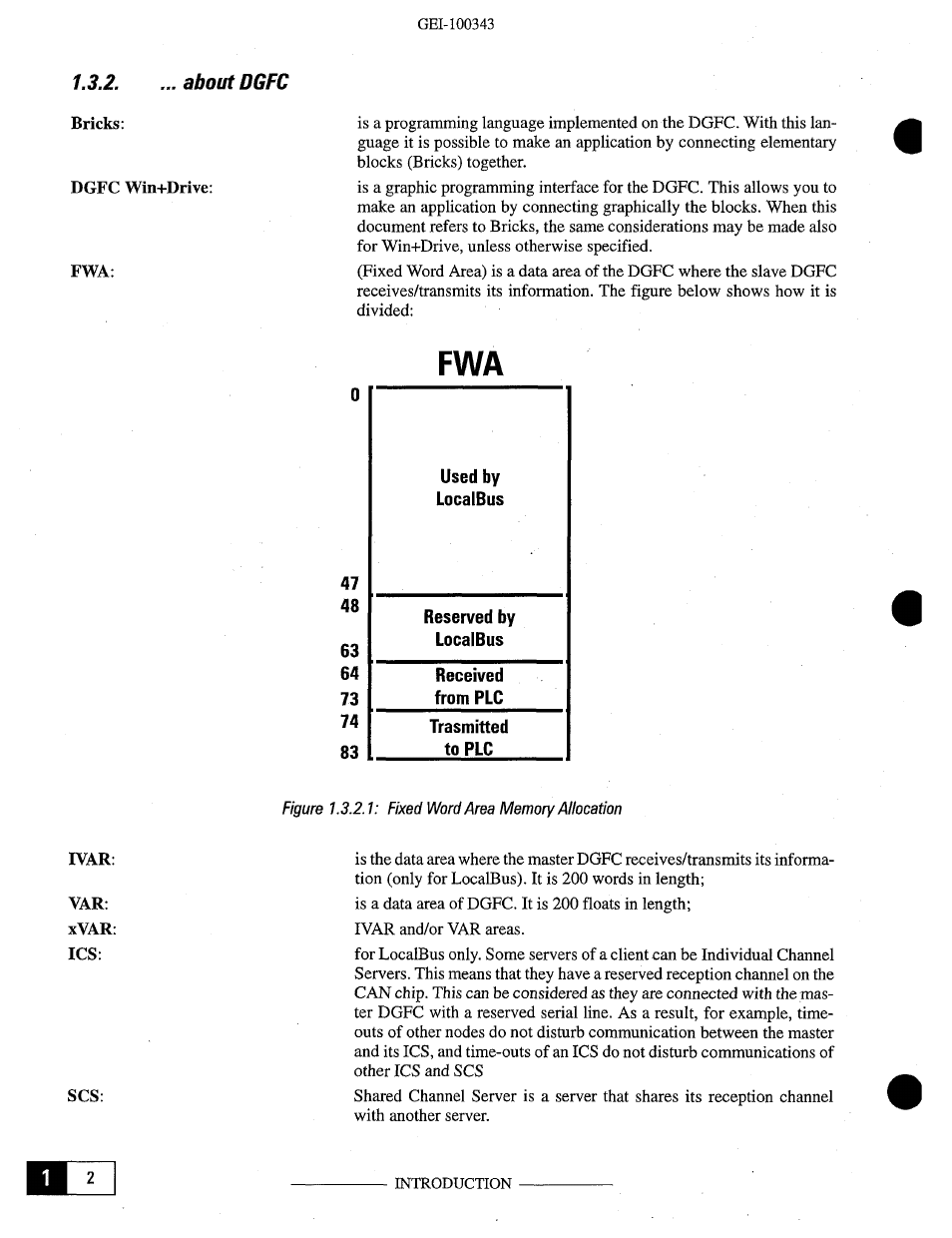

Figure 1.3.2.1: Fixed WordArea Memory Allocation

is the data area where the master DGFC receives/transmits its informa-
tion (only for LocalBus). It is 200 words in length;

is a data area of DGFC. It is 200 floats in length;

IVAR and/or VAR areas.

for LocalBus only. Some servers of a client can be Individual Channel
Servers. This means that they have a reserved reception channel on the
CAN chip. This can be considered as they are connected with the mas-
ter DGFC with a reserved serial line. As a result, for example, time-
outs of other nodes do not disturb communication between the master
and its ICS, and time-outs of an ICS do not disturb communications of
other ICS and SCS

Shared Channel Server is a server that shares its reception channel
with another server.

Used by

LocalBus

Reserved by

LocalBus

Received

from

PLC

Trasmitted

PLC

WAR:

VAR:

xVAR:

ICS:

SCS:

MIlE

INTRODUCTION
