DeviceNet
Ni
TT7~TT
Power
lap
I-I
-‘-
Power
Supply
~1~
E
N6

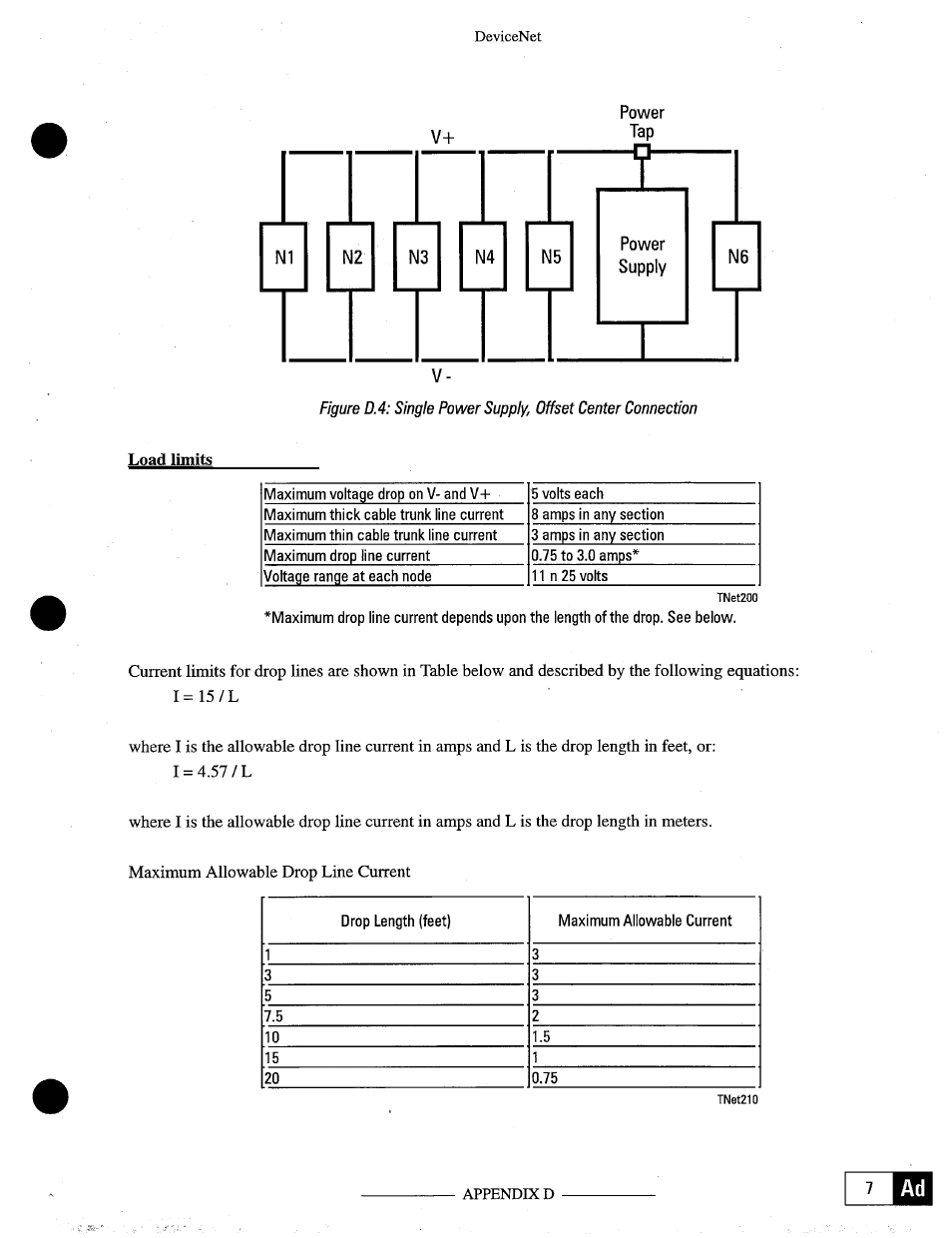

Figure D.4: Single Power Supply, Offset Center Connection
Load limits
Maximum voltage drop on V- and V+ 5 volts each
Maximum thick cable trunk line current 8 amps in any section
Maximum thin cable trunk line current 3 amps in any section
Maximum drop line current 0.75 to 3.0 amps*
Voltage range at each node 11 n 25 volts
TNet200
*Maximum drop line current depends upon the length of the drop. See below.
Current limits for drop lines are shown in Table below and described by the following equations:
1= 15/L
where I is the allowable drop line current in amps and L is the drop length in feet, or:
I=4.57/L
where I is the allowable drop line current in amps and L is the drop length in meters.
Maximum Allowable Drop Line Current
Drop Length (feet) Maximum Allowable Current
1 3
3 3
5 3
7.5 2
10 1.5
15 1
20 0.75
TNet2l 0
