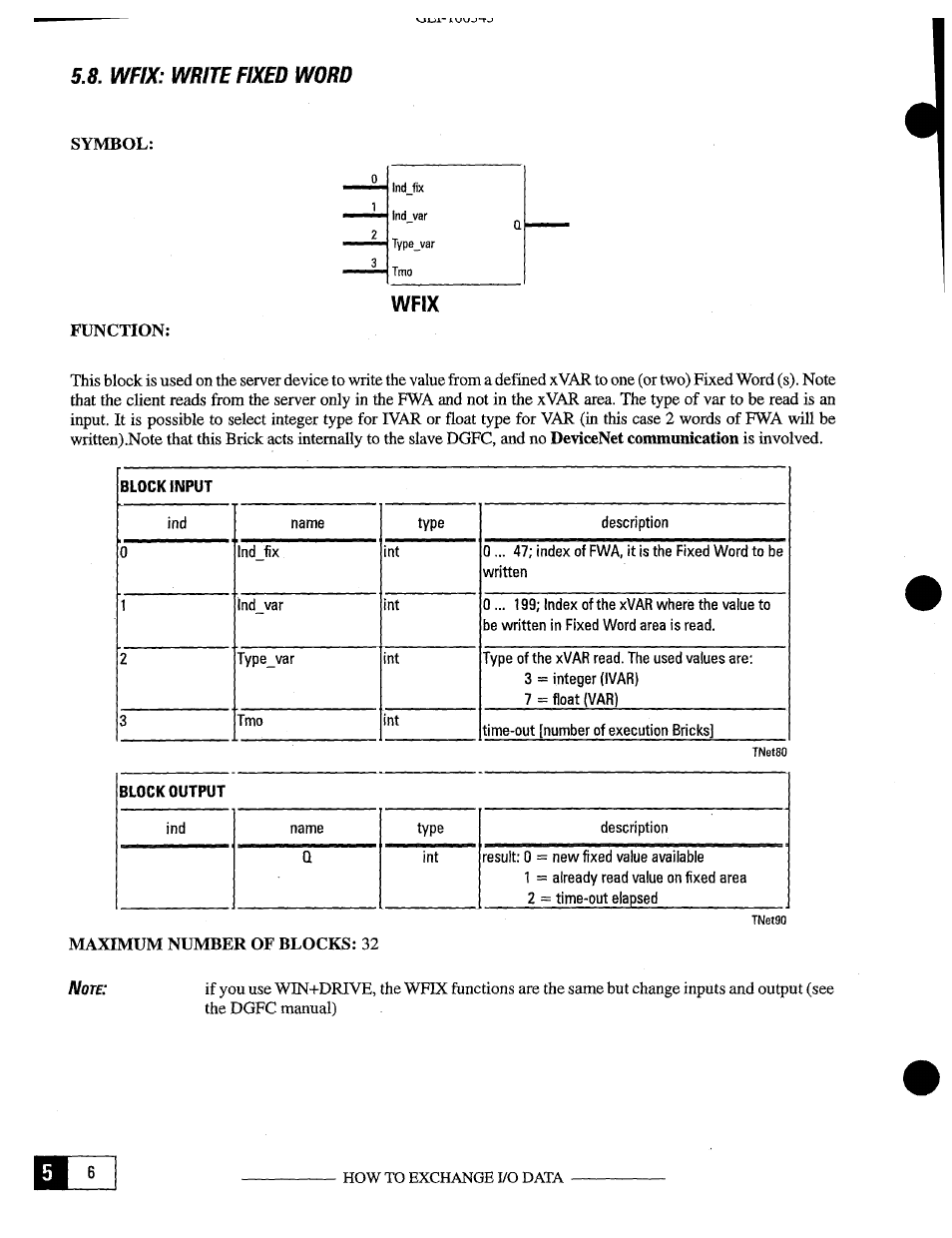

5.8. WFIX: WRITE FIXED WORD
SYMBOL:
0
2
3
WFIX
FUNCTION:
This block is used on the server device to write the value from a defined xVAR to one (or two) Fixed Word (s). Note
that the client reads from the server only in the FWA and not in the xVAR area. The type of var to be read is an
input. It is possible to select integer type for IVAR or float type for VAR (in this case 2 words of FWA will be
written).Note that this Brick acts internally to the slave DGFC, and no DeviceNet communication is involved.
BLOCK INPUT
md name type description
0 Ind_fix
mt
0 ... 47; index of FWA, it is the Fixed Word to be
written
1 Ind_var
mt
0 ... 199; Index of the xVAR where the value to
be written in Fixed Word area is read.
2 Type var
mt
Type of the xVAR read. The used values are:
3 = integer (IVAR)
7 =_float_(VAR)
time-out [number of execution Bricks] 3 Tmo
mt
TNet8O
BLOCK OUTPUT
md name type description
Q
mt
result: 0 = new fixed value available
1 = already read value on fixed area
2 tmme-out_elapsed
TNet9O
if you use WIN+DRIVE, the WFD( functions are the same but change inputs and output (see
the DGFC manual)
HOW TO EXCHANGE 110 DATA
• md fix
• md_var
_
0’
Type var
• Tmo
MAXIMUM NUMBER OF BLOCKS: 32
