DeviceNet

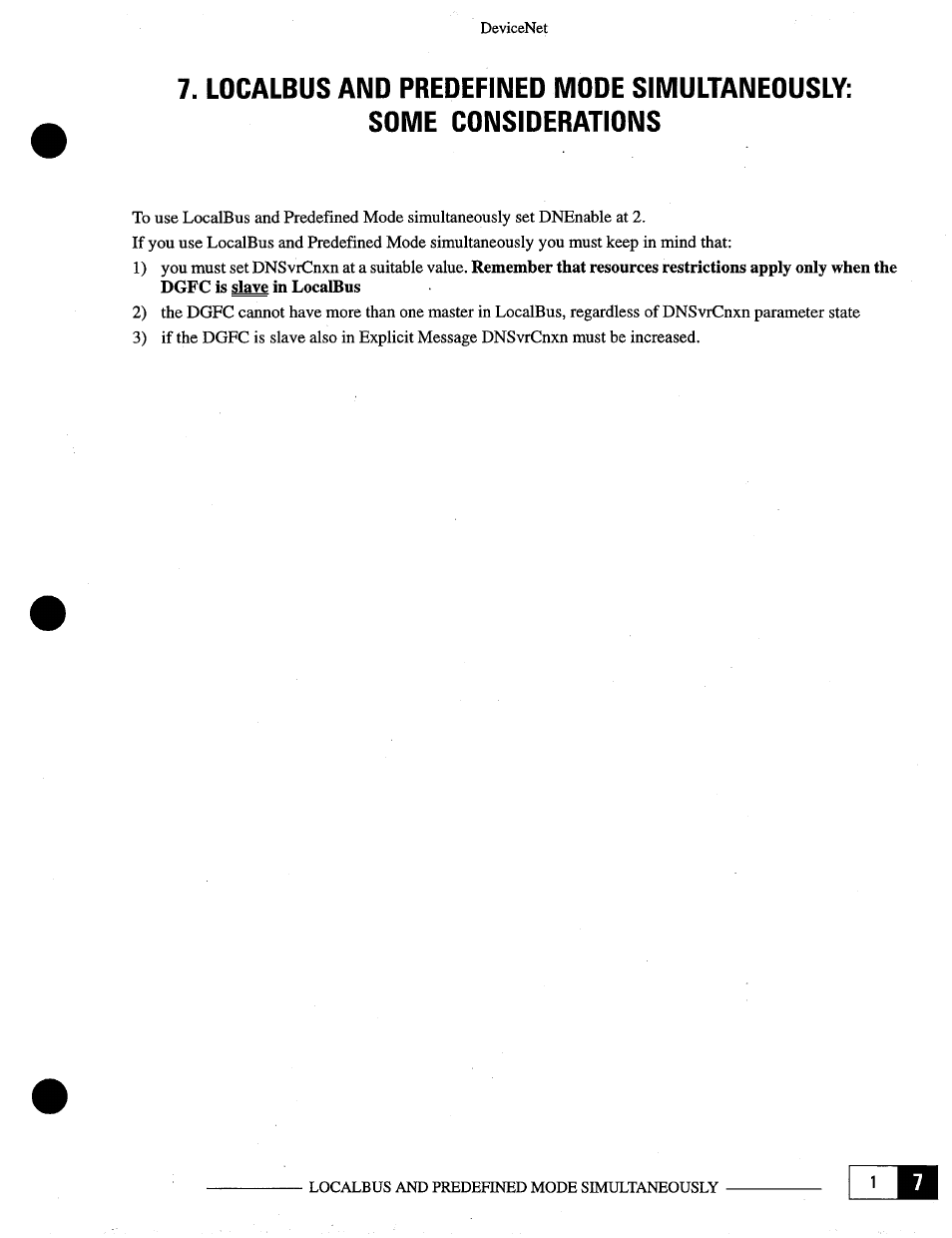

7. LOCALBUS AND PREDEFINED MODE SIMULTANEOUSLY:

SOME CONSIDERATIONS

To use LocalBus and Predefined Mode simultaneously set DNEnable at 2.

If you use LocalBus and Predefined Mode simultaneously you must keep in mind that:

1)

you must set DNSvrCnxn at a suitable value. Remember that resources restrictions apply only when the

DGFC is slave in LocalBus

2)

the DGFC cannot have more than one master in LocalBus, regardless of DNSvrCnxn parameter state

3)

if the DGFC is slave also in Explicit Message DNSvrCnxn must be increased.

LOCALBUS AND

PREDEFINED MODE SIMULTANEOUSLY

EllA
