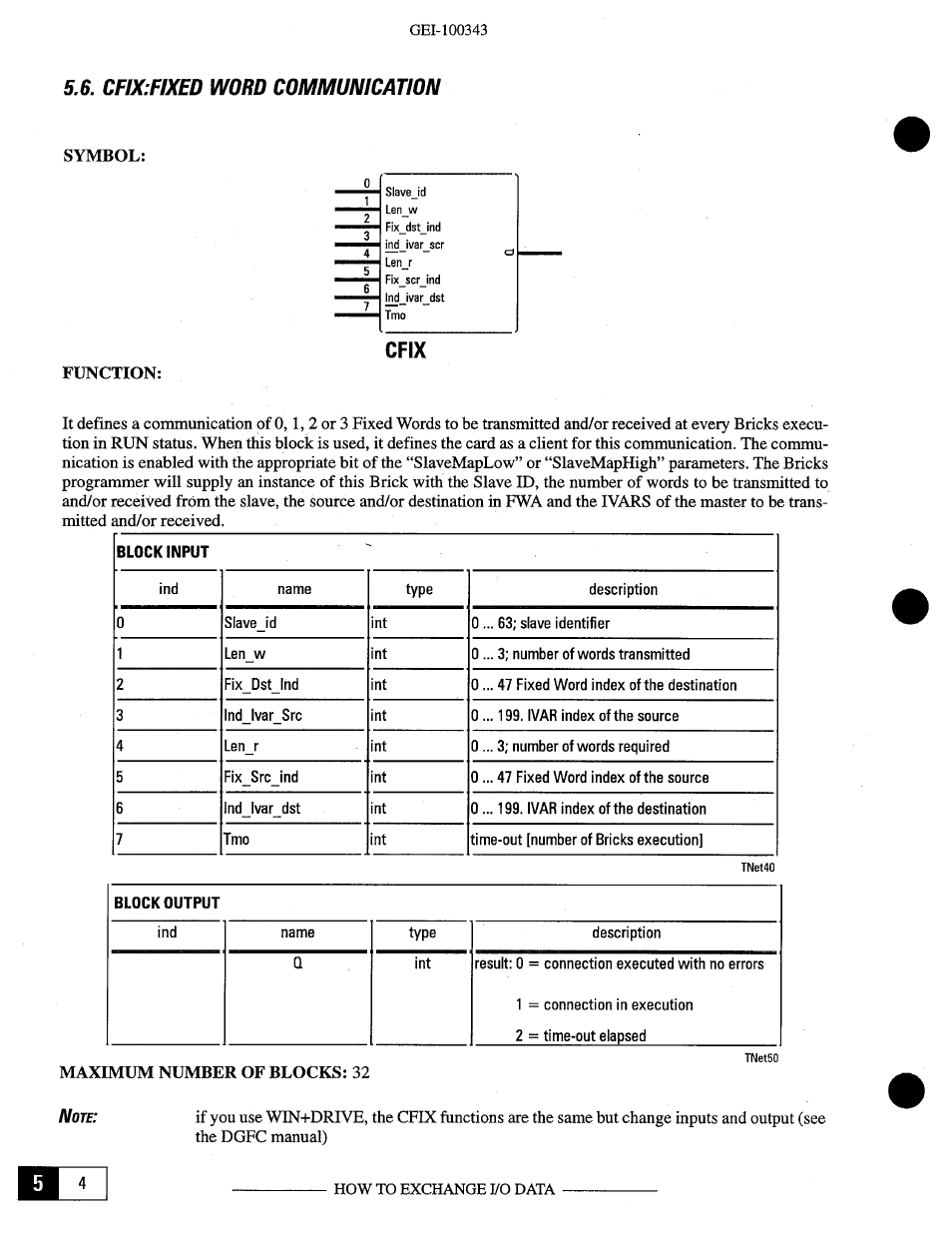

5.6. CFIX:HXED WORD COMMUNICATION
SYMBOL:
0
2
3 _
4 _
5
6 _
7
CFIX
FUNCTION:
It defines a communication of 0, 1, 2 or 3 Fixed Words to be transmitted and/or received at every Bricks execu-
tion in RUN status. When this block is used, it defines the card as a client for this communication. The commu-
nication is enabled with the appropriate bit of the “SlaveMapLow” or “SlaveMapHigh” parameters. The Bricks
programmer will supply an instance of this Brick with the Slave ID, the number of words to be transmitted to
and/or received from the slave, the source and/or destination in FWA and the IVARS of the master to be trans-
mitted and/or received.
BLOCK INPUT
md name type description
0 Slave_id
mt
0 ... 63; slave identifier
1 Lenw
mt
0 ... 3; number of words transmitted
2 Fix_Dst md
mt
0 ... 47 Fixed Word index of the destination
3 md Ivar Src
mt
0... 199. IVAR index of the source
4 Len_r
mt o ... 3; number of words required
5 Fix_Src md
mt
0 ... 47 Fixed Word index of the source
6 md_Ivar_dst
mt
0... 199. IVAR index of the destination
7 Tmo
mt
time-out [number of Bricks executioni
TNet4O
BLOCK OUTPUT
md name type description
Q
mt
result: 0 = connection executed with no errors
1 = connection in execution
2 = time-out elapsed
TNet5O
MAXIMUM NUMBER OF BLOCKS: 32
if you use WIN+DRIVE, the CFIX functions are the same but change inputs and output (see
the DGFC manual)
HI”’
HOW TO EXCHANGE 110 DATA
Sieve_id
Len_w
Fix_dst_md
md var_scr
Len_r
Fix_scr_md
md var_dst
Tmo
NOTE:
