GE Industrial Solutions GPS4827 User Manual
Page 31
Galaxy Power System GPS4827
29
300A Shunt (in back
of panel) per Position
5 Large TPL-B
Fuse Positions
9" REF
(229mm)
Connects to
Charge Return Bus
Alarm/Terminal Card
Maximum Panel Capacity
1125A
800A with LVLD

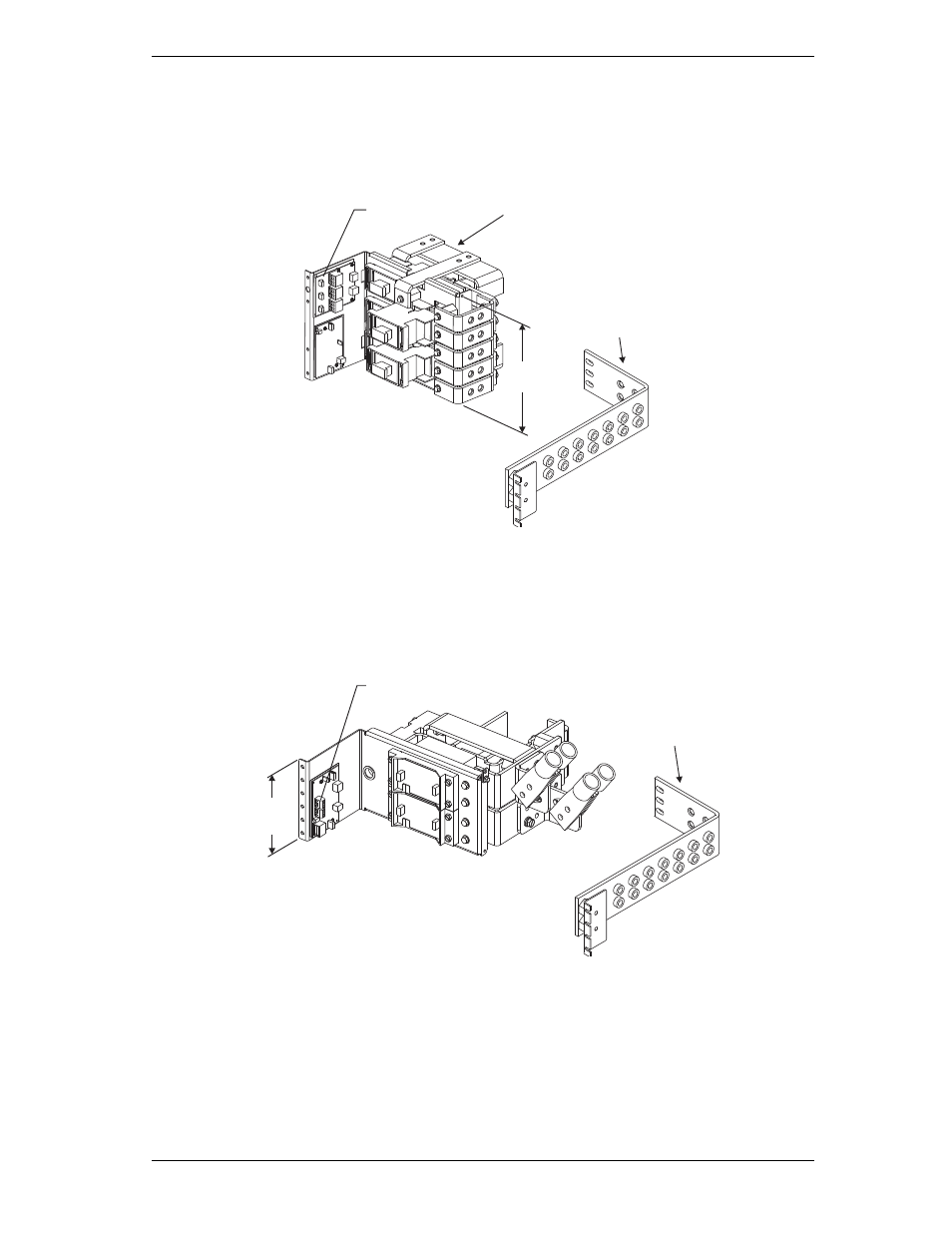

Figure 7-11 H569-4827 G54 (ED83143-31 G21)
DC Distribution Panel
Shunt Monitoring Connection
Points to RPMs
6" REF
(152mm)
TPL-C Fuse Head Furnished with Block.
Order 408472322 TPL-B Fuse
Block Head for 70A - 250A Fuses.
Connects to
Charge Return Bus
Figure 7-12 H569-4827 G59 (ED83143-31 G21)
DC Distribution Panel
