(i.e. it is served by a shared medium LAN segment). This function
allows the P2P status of the link to be manipulated administratively.
True is P2P enabling. False is P2P disabling.
 Admin Edge: The port directly connected to end stations cannot create
a bridging loop. To configure the port as an edge port, set the port to
“True” status.
 Admin Non Stp: The port includes the STP mathematic calculation.
True does not include the STP mathematic calculation. False includes
the STP mathematic calculation.
 Click
Apply
[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.

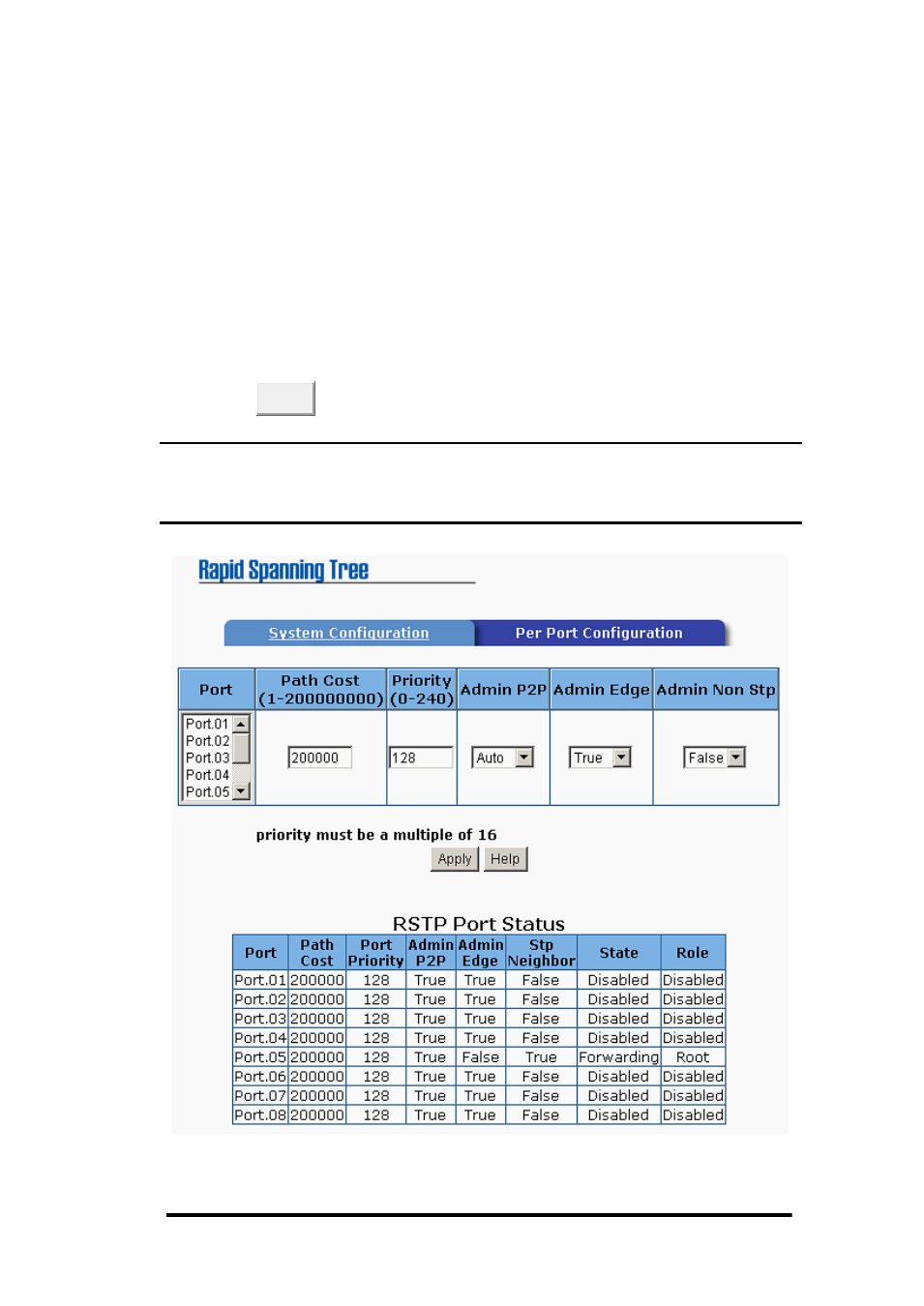

RSTP – Per Port Configuration interface
