Hardware Description
Physical Dimension (W x H x D)
2.3 x 5.7 x 4.3 in (5.8 x 14.5 x 10.9 cm)

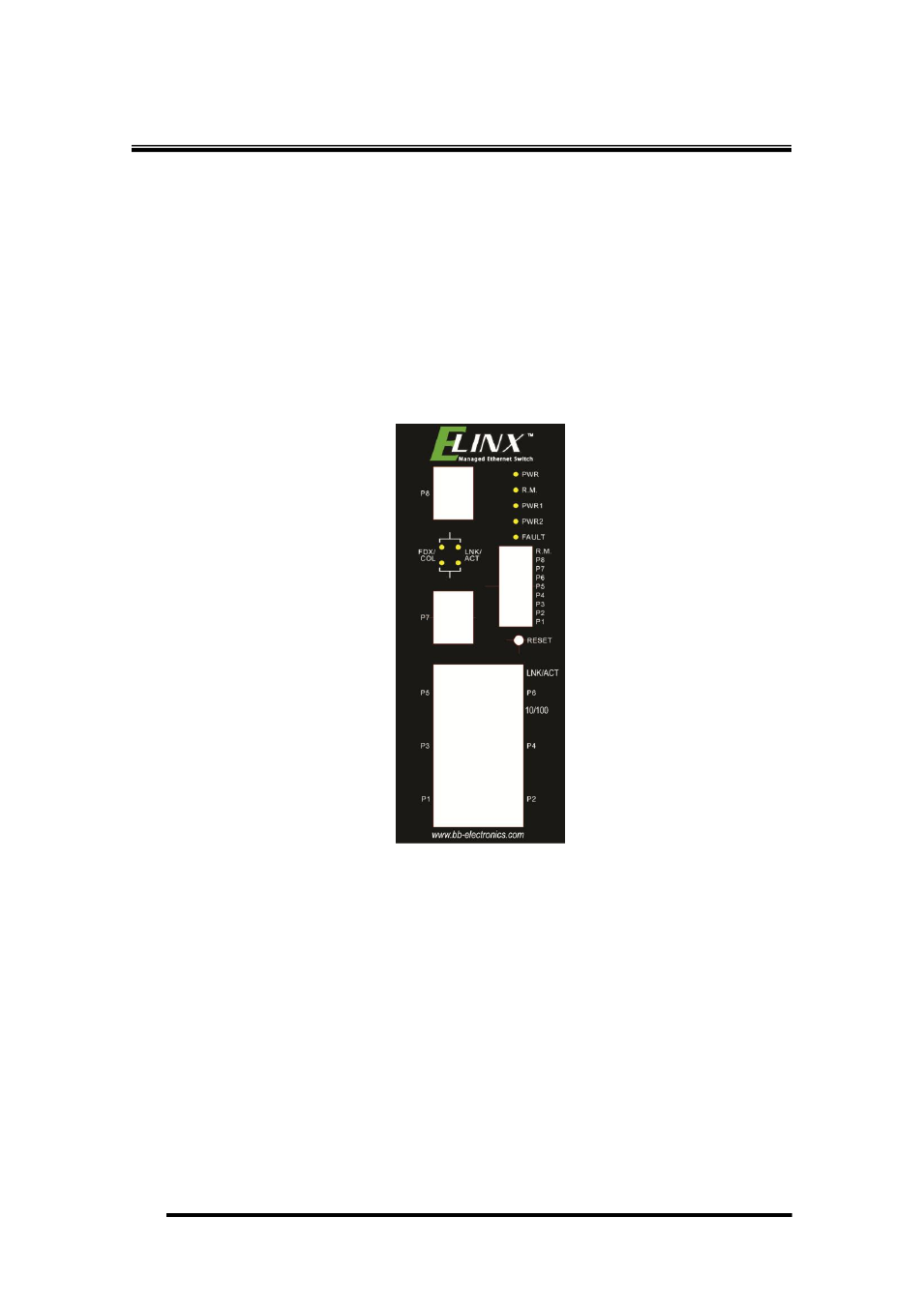

Front Panel
Front Panel of the industrial switch
Reset Button
The reset button is used to restart the reboot the switch or restore it to the
factory default configuration.
 Restart: Press the button for 2 seconds and release.
 Set to factory default value: Press the button for 5 seconds and
release.
