Panel Mounting
1. Remove the DIN-Rail.

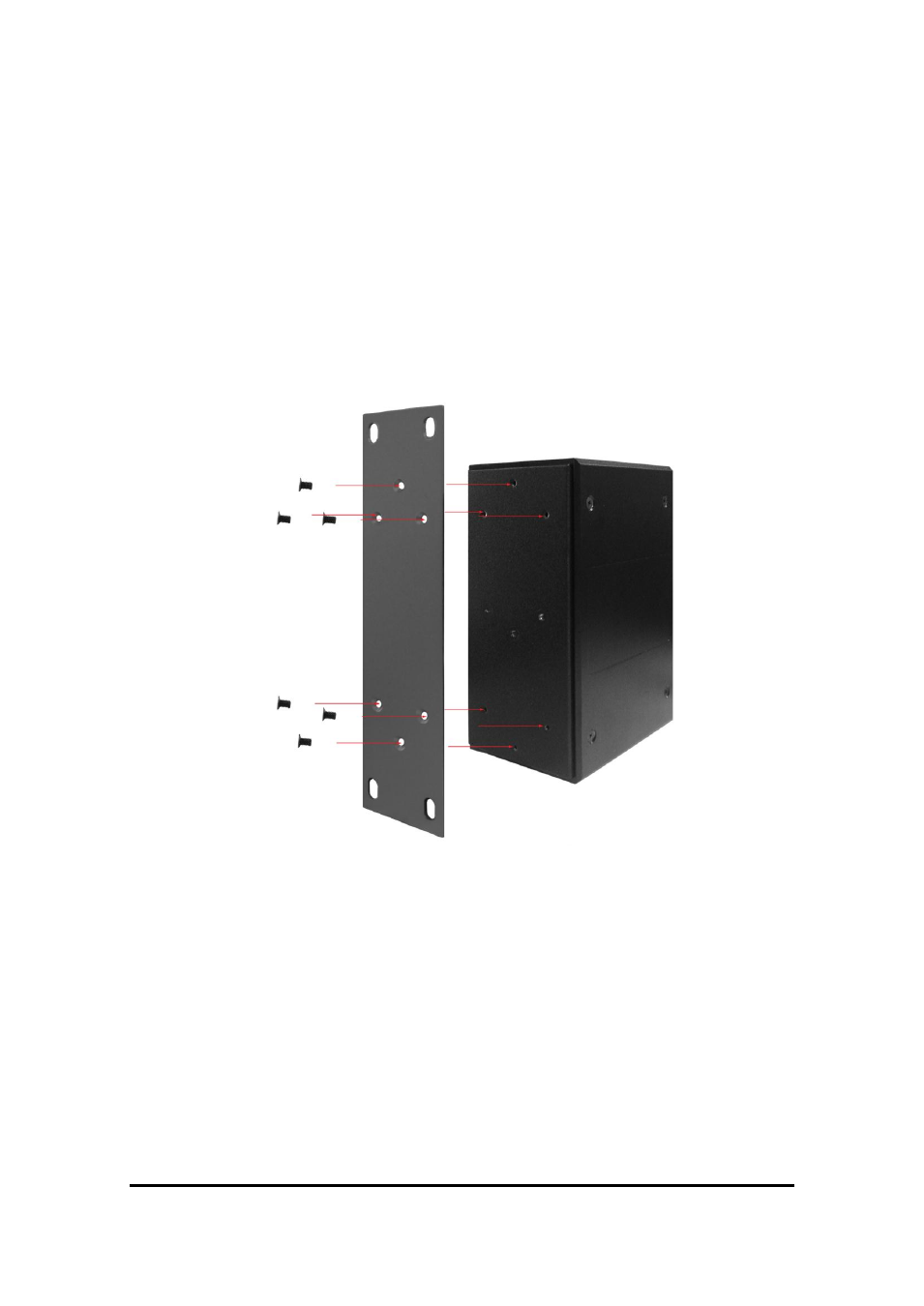

2. Place the panel mount plate on the rear panel of the industrial switch.
3. Attach the plate with the screws provided.
4. Use the hook holes at the corners of the plate to mount the switch to the
panel.
5. To remove the panel mount plate, reverse steps above.
