number in Management VLAN ID column, check the box, and click the
apply button. Example: If the management VLAN ID is 101 and the
VLAN Group ID 101 includes ports 1, 2, and 4, only ports 1, 2, and 4 can
perform remote management functions on the switch. If a port is in
multiple VLAN groups, it can still perform management functions as long
as one VLAN group ID is equal to the Management VLAN ID.
3. Group Name: Assign a name for the new VLAN
4. VLAN ID: Enter a VLAN ID (2~4094). The default is 1
5. From the available ports box, select ports to add to the VLAN Group and
click the Add button

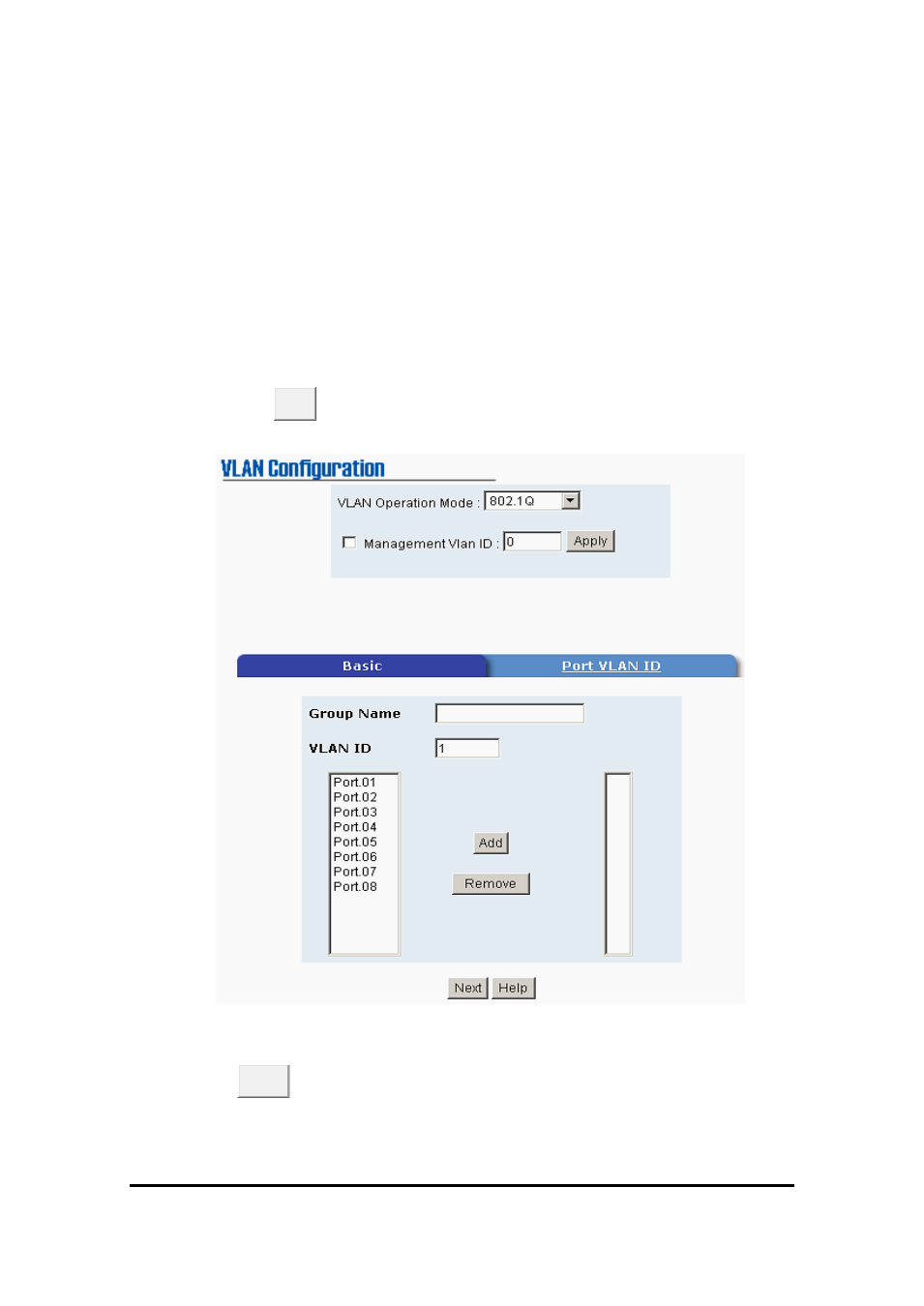

802.1q VLAN –Add interface
6. Click Next to bring up the configuration interface.
