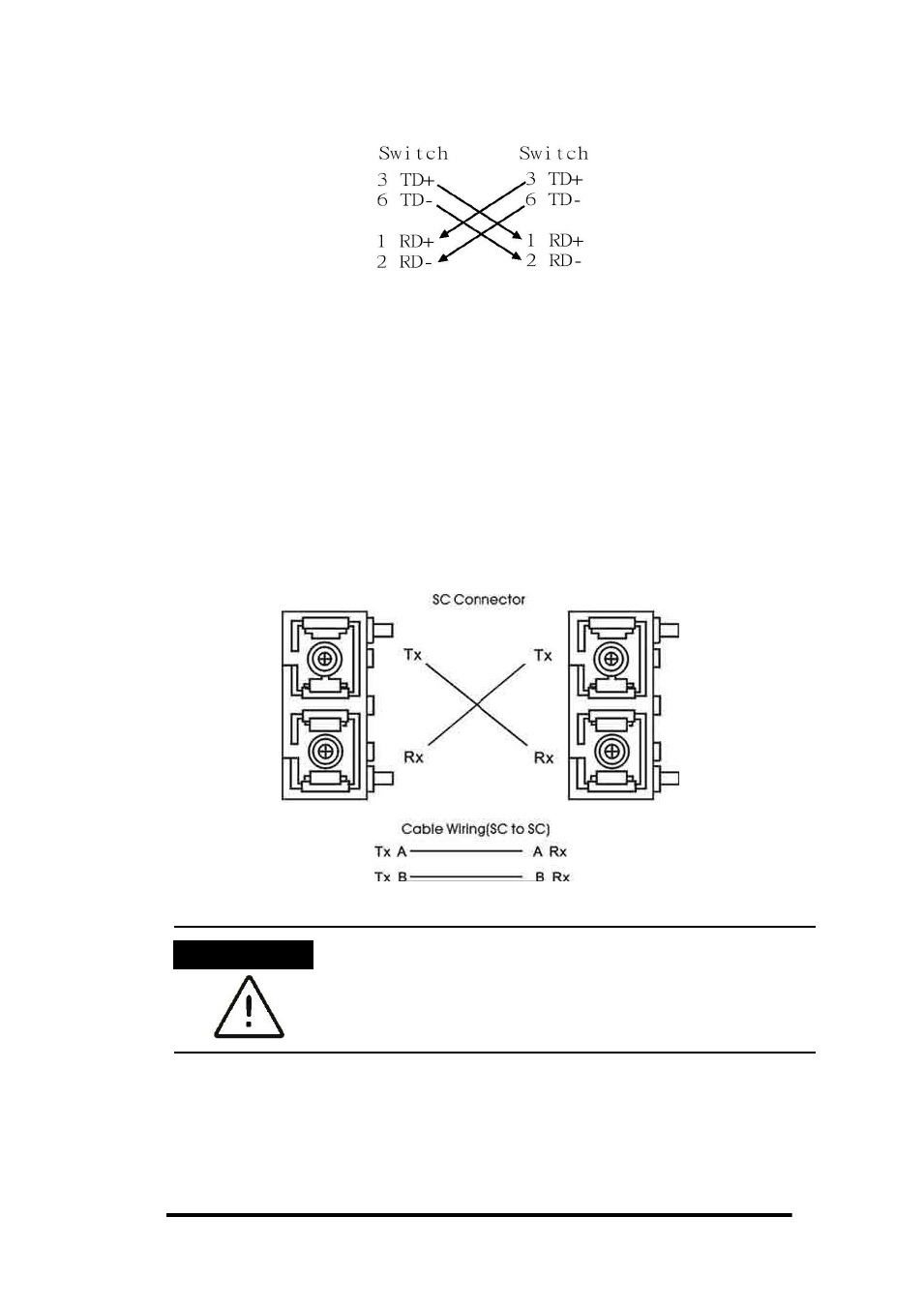

Straight Through Cable Schematic
Cross Over Cable Schematic
 Fiber Port (Fiber Models Only)
There are two 100Base-FX ports. Depending on the model, the fiber ports
have either SC or ST type connectors and use multi-mode (2Km) or single
mode (30Km) cable.
Connect the fiber ports as described below.
ATTENTION
This is a Class 1 Laser/LED product. Do not stare into
the Laser/LED Beam.
