802.1Q VLAN
Tagged-based VLAN is an IEEE 802.1Q specification which allows VLANs
to be created across devices from different venders. IEEE 802.1Q VLAN
uses a technique to insert a “tag” into the Ethernet frame. The tag contains a
VLAN Identifier (VID).
When the 802.1Q VLAN is enabled, all ports on the switch belong to a
default VLAN (VID 1). The default VLAN
can’t be deled. The EIR508 series
will support up to 64 VLAN groups.

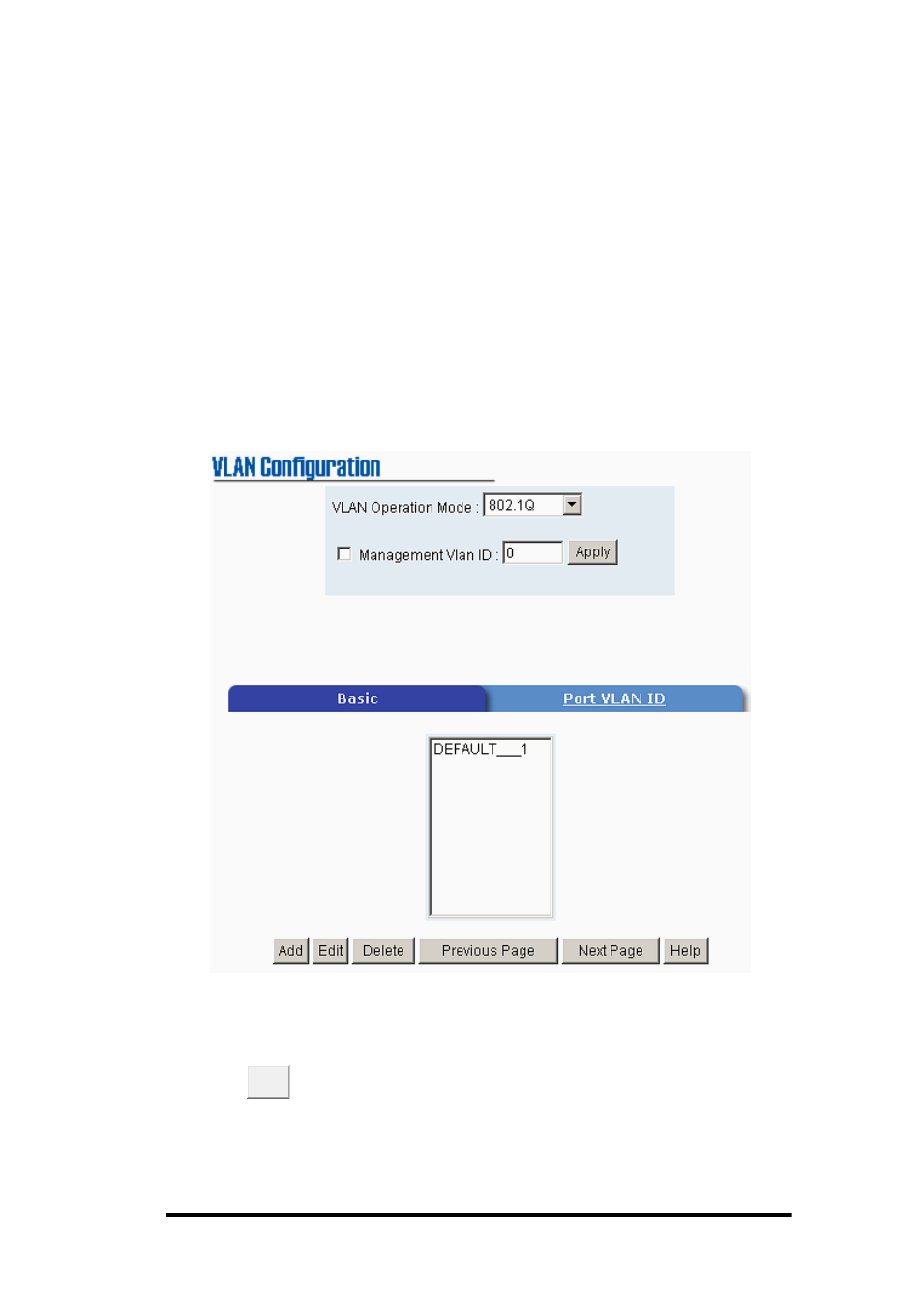

802.1q VLAN interface
 Basic
1. Click Add
2. Management VLAN ID: Used for Remote Management Security. When
this option is selected, remote management is only available to the
members of the indicated VLAN Group. Enter the specific VALN ID
