Cabling
 Use Category 5 cabling for RJ-45 port connections. The cable must be
less than 328 ft (100 meters) long.
 Use 9/125 um cable for single-mode fiber. Distances up to 30
Kilometers are supported.
 Use 50/125 or 62.5/125 cable for multi-mode fiber. Distances up to
2Km are supported.

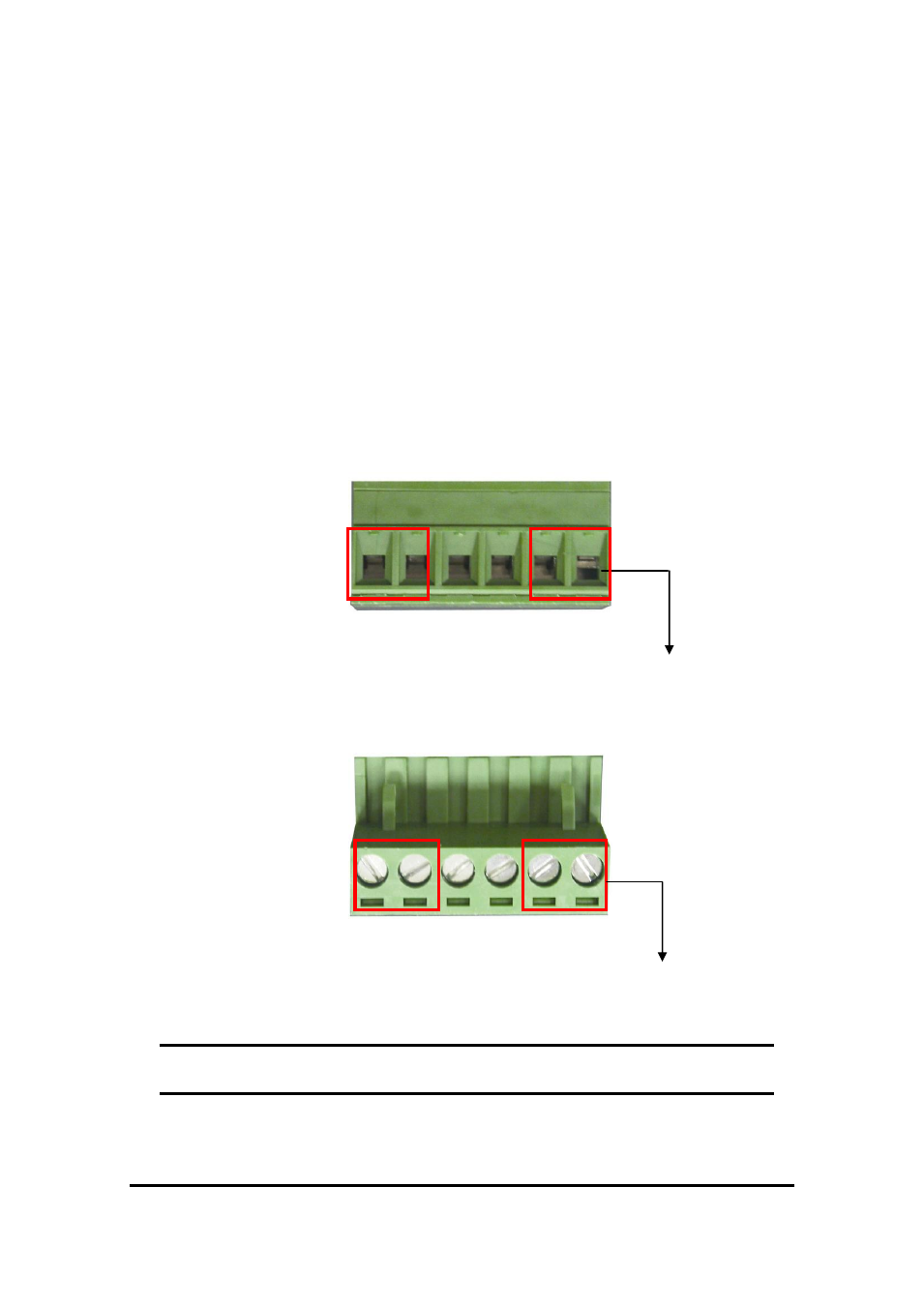

Wiring the Power Inputs
[NOTE] Use 12~ 24 AWG wire.
V- V+ V- V+
1. Insert the positive and negative wires into the V+ and V-
connector on the terminal block connector.
2. Tighten the wire-clamp screws.
