30
Manual Documentation Number: EIR508-2xx-T 1713m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
 Click
Clear button to reset.

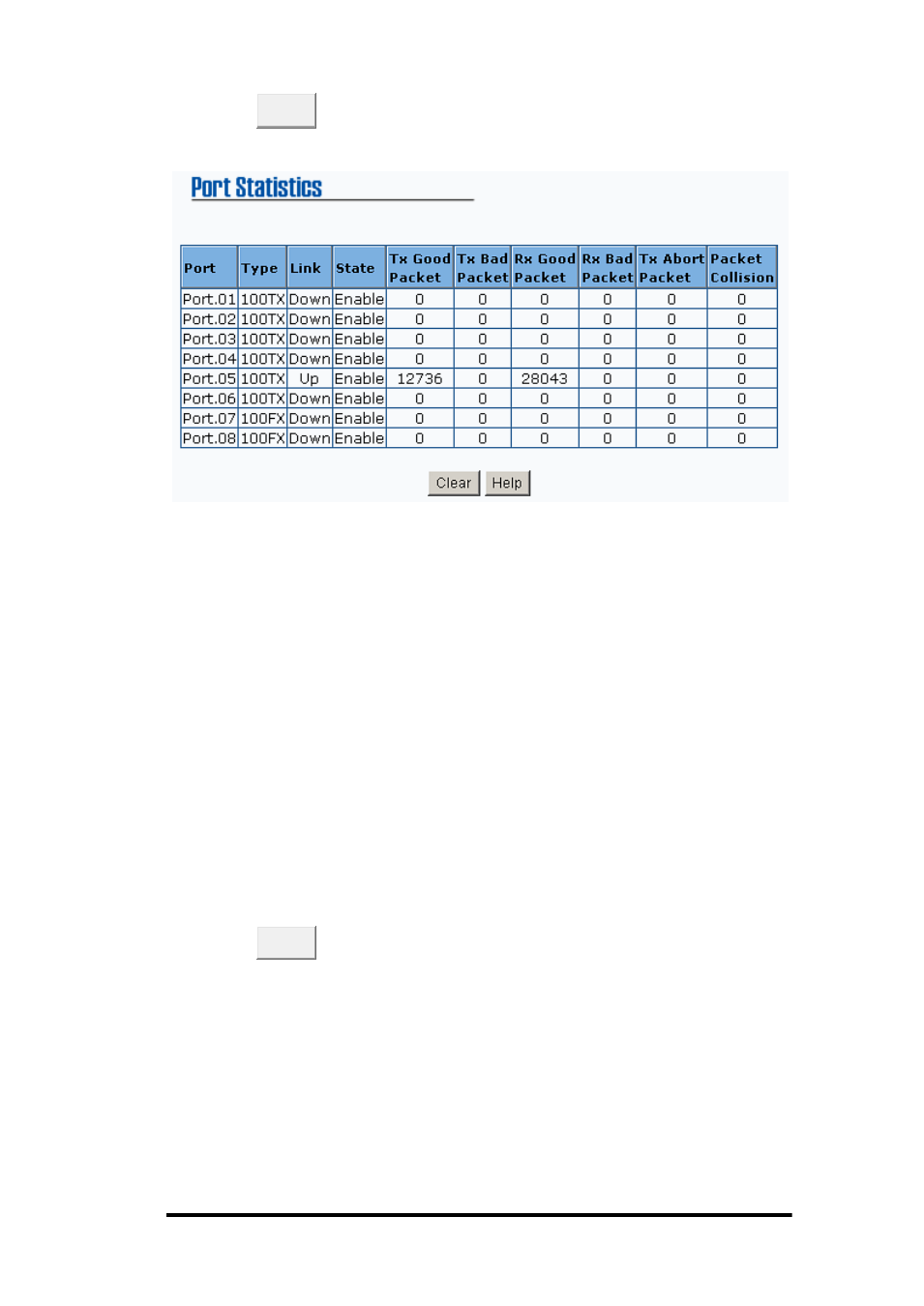

Port Statistics Interface
Port Control
Use to set up the port.
1. Select the port by scrolling down the Port column. The current port
information will be displayed in the table below.
2. State: Enables or disables the port.
3. Negotiation: Sets the negotiation mode to Auto, Nway (specify the
speed/duplex of the port and enable auto-negotiation), or Forced.
4. Speed: Sets the transmit speed of the port
5. Duplex: Sets the port to full-duplex or half-duplex
Flow control: Sets flow control function to Symmetric or Asymmetric
in Full Duplex mode (The default value is Disable)
6. Click Apply button to apply configuration
7. Select the port again to verity the configuration.
