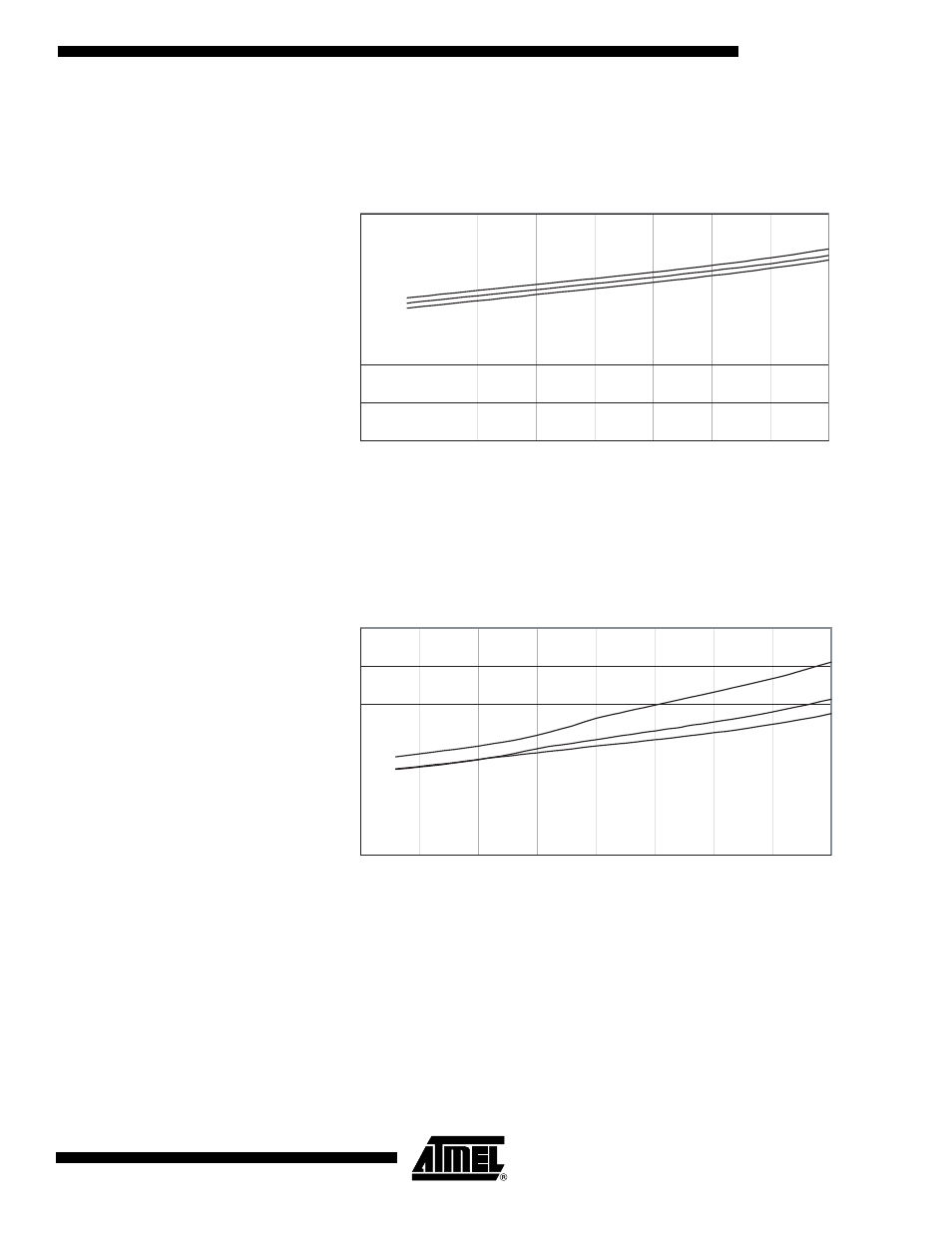

Current Consumption of
Peripheral Units Figure 109. Brownout Detector Current vs. V
CC
Figure 110. Analog Comparator Current vs. V
CC
BROWNOUT DETECTOR CURRENT vs. V
CC
0
5
10
15
20
25
30
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(m
A
)
25 °C
85 °C
-40 °C
ANALOG COMPARATOR CURRENT vs. V
CC
0
20
40
60
80
100
120
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(u
A
)
85 °C
25 °C
-40 °C
