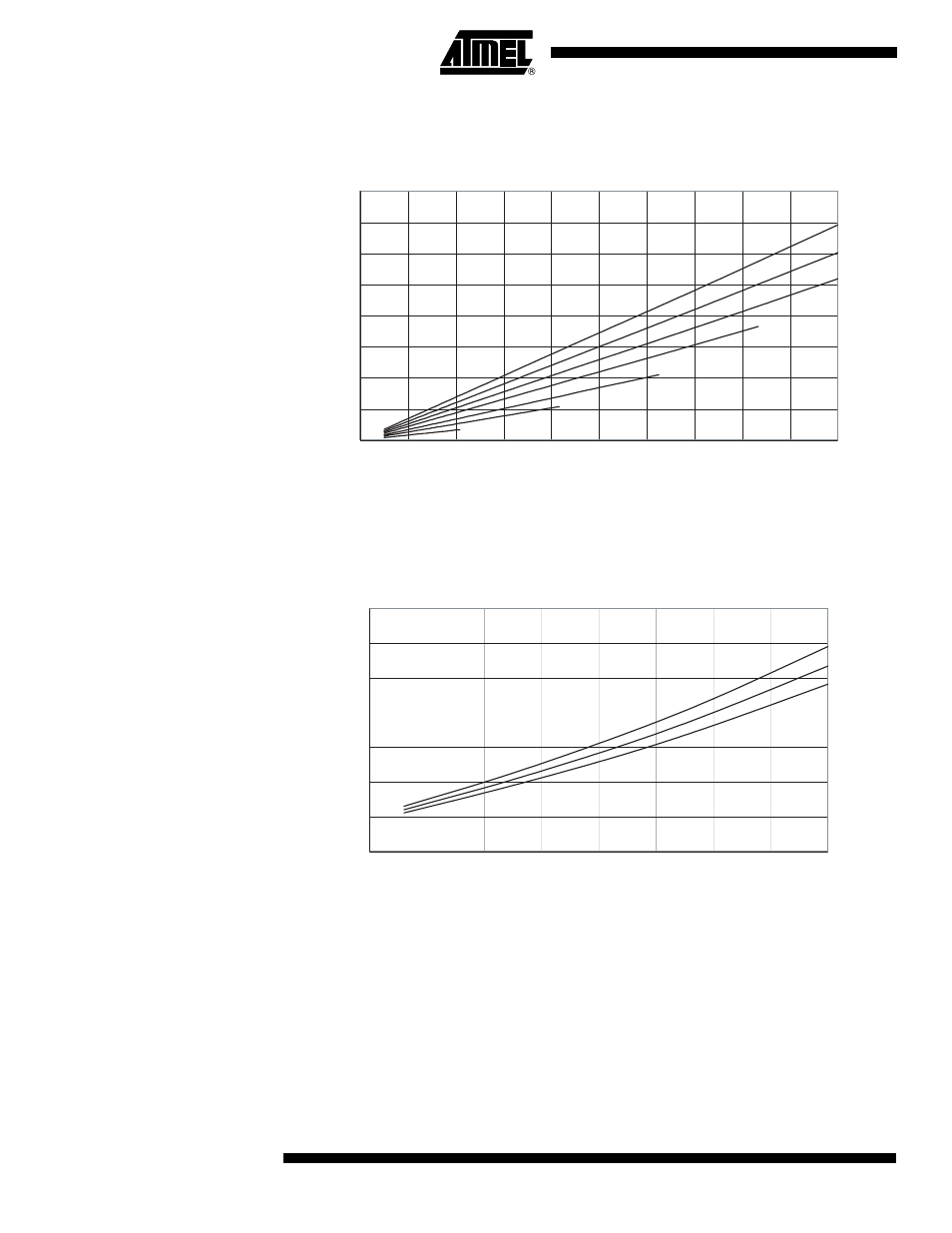

Figure 87. Idle Supply Current vs. Frequency (1 - 16 MHz)
Figure 88. Idle Supply Current vs. V
CC
(Internal RC Oscillator, 8.0 MHz)
IDLE SUPPLY CURRENT vs. FREQUENCY
1 - 20 MHz
0
1
2
3
4
5
6
7
8
0 2 4 6 8 10 12 14 16 18 20
Frequency (MHz)
I CC
(m
A
)
5.5V
4.5V
4.0V
3.3V
2.7V
1.8V
5.0V
IDLE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 8.0 MHz
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(m
A
)
85 °C
25 °C
-40 °C
