Taurus 3 User’s Manual - The Basics
Page 9
T3 User’s Manual - The Basics
Front Panel (con’t):
6. The Control Footwheel - A performance control for the real-time adjustment of parameter values. The
accompanying LED bargraph indictor displays the approximate parameter value.
7. Four ‘Quick Access’ footswitches to select four Presets in a given bank.
8. Footswitches for Bank selection, for Transpose, Glide, and Decay ON/OFF, and for Octave UP/DOWN.
Side Panel:

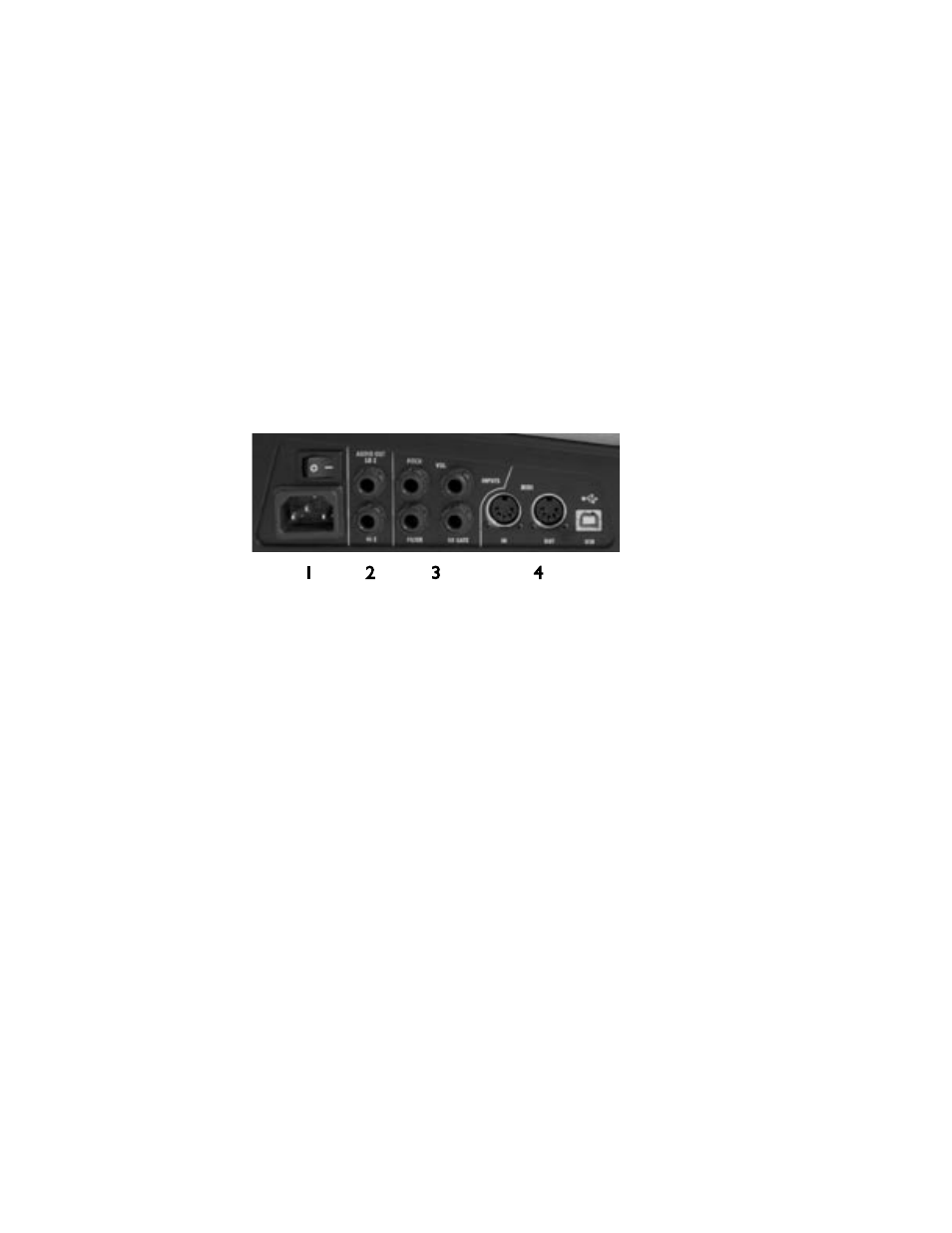

The side panel provides connections for Power, MIDI, Control Voltage Input and Audio Output:
1. Power Socket/Switch – Power input to the T3.
2. Audio Output jacks – Two monophonic audio output connections (Hi Z/Lo Z).
3. Control Voltage jacks – Control Voltage inputs for Pitch, Filter, and Volume, and a Gate input to trigger
the Filter and Volume envelope generators. CV inputs allow the T3 to be controlled from expression
pedals (like the Moog EP-2), or CV devices like the Moogerfooger® CP-251 Control Processor or
MP-201 Multi-Pedal. The Gate input can be triggered with a gate signal.
4. MIDI – Provides MIDI Input/Output connections to other MIDI devices through either standard
MIDI DIN or USB connections (software selectable).
