Taurus 3 User’s Manual - The Components
Page 25
Taurus 3 User’s Manual - The Components

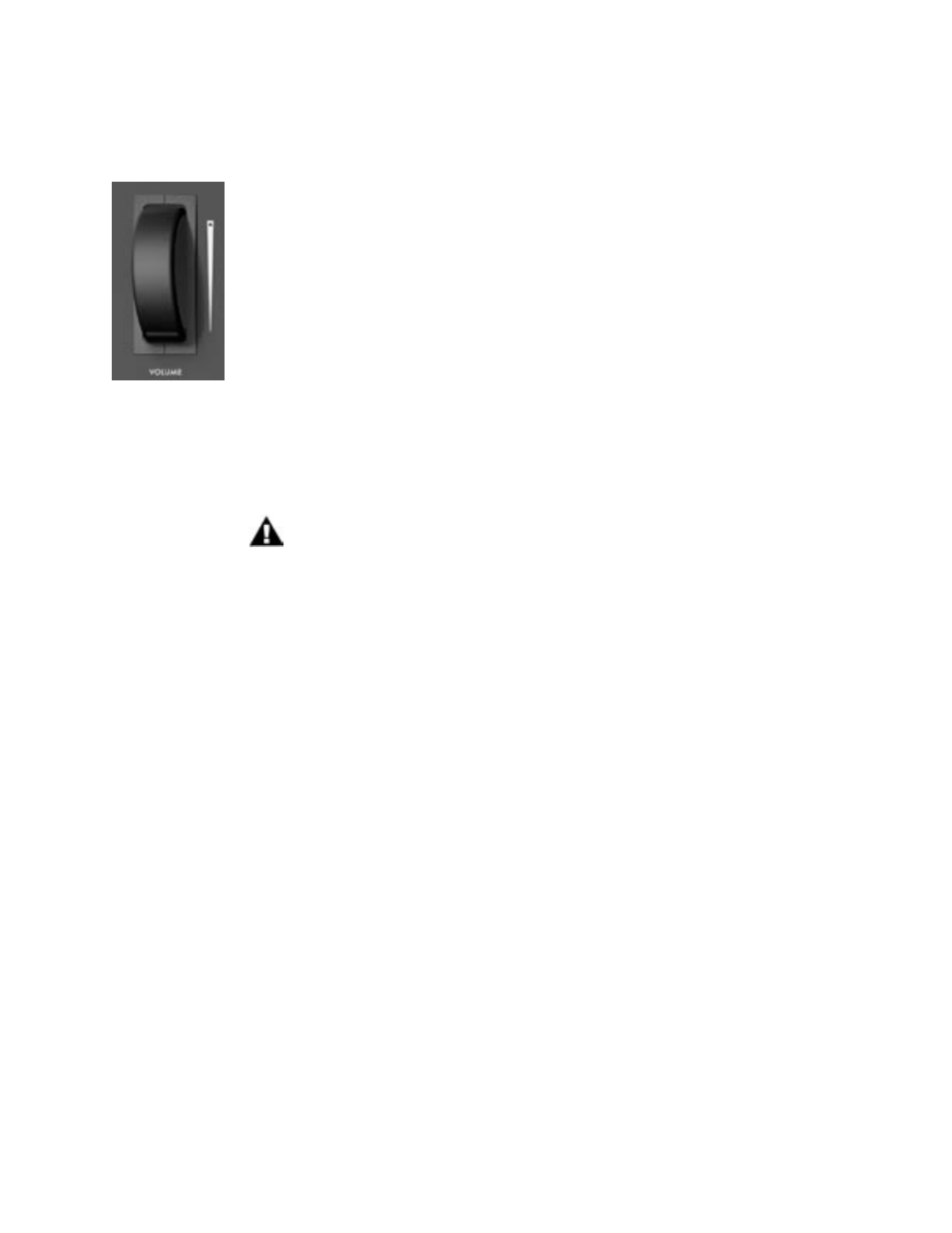

F – Volume Footwheel
The Taurus 3 has two independent monophonic outputs. The level of both audio outputs
is adjusted by the VOLUME footwheel, although the actual output level depends on a
combination of the VOLUME footwheel setting, the Master Volume parameter, and any
external control voltage applied to the VOLUME jack.
An illuminated slot in the wheel’s face helps to identify the position of the wheel in dim
environments.
External CV Control: The VOLUME jack on the side panel is a control voltage input for
external control of the Output level. The jack accepts a positive control voltage from 0 to
+ 5 volts, or an expression pedal like the EP-2. A voltage of 0 volts silences the Taurus 3,
and a voltage of +5 volts corresponds to the maximum output level set by the VOLUME
footwheel and the Master Volume parameter.
NOTE: The VOLUME footwheel transmits MIDI CC #07
