1. Main Structure Assembly
PNEG-545 100 Series Portable Dryer 9

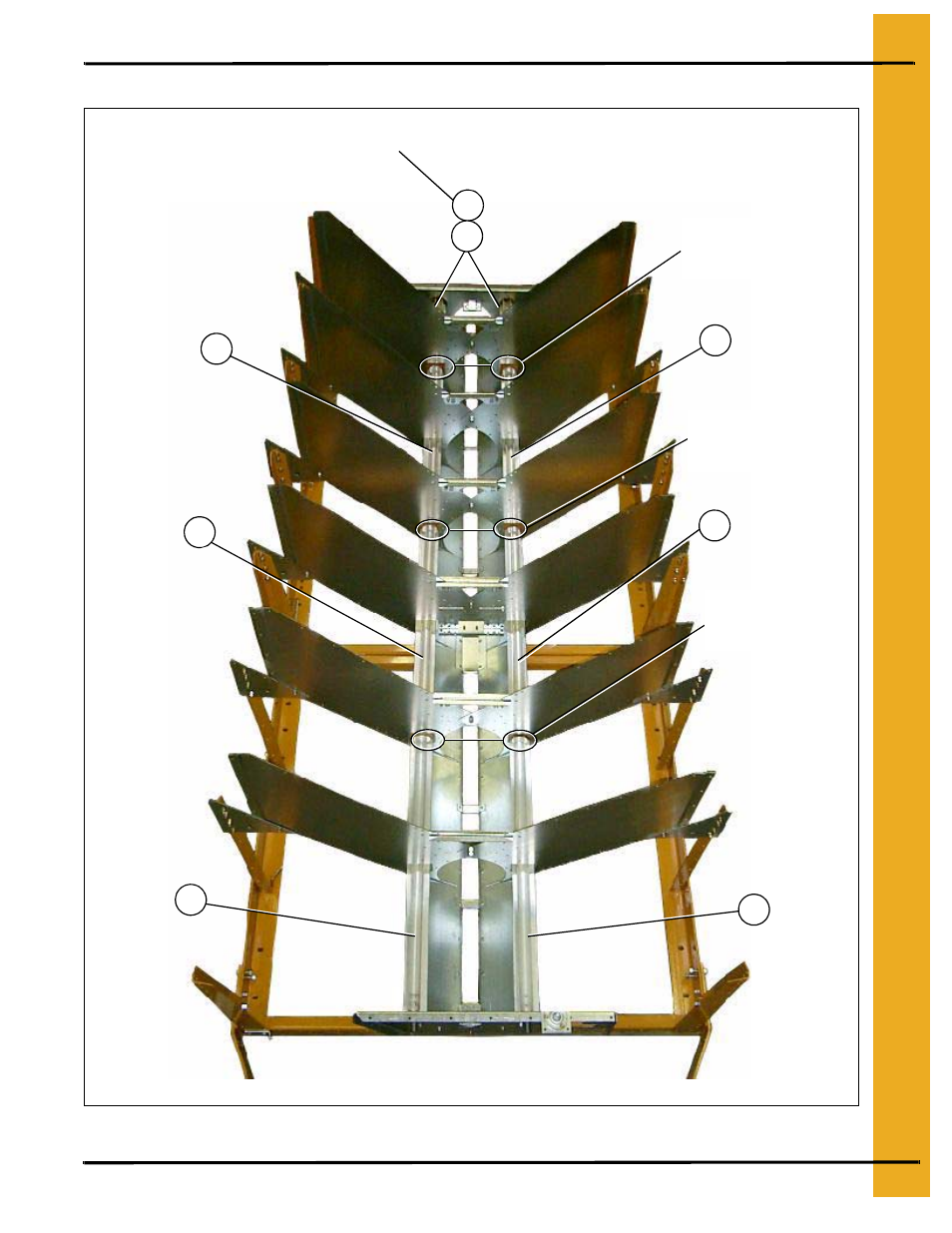

Metering Rolls and their Placement in the Dryer
Figure 1G
Meter roll bearing
Ref # 16,17 and 18
on page 10.
This end is the front (fan/heater) end of the dryer.
NOTE: Ref # 22 at the rear of dryer is a
front section meter roll that is used as a
rear section on 16 and 20 foot dryers only.
Meter roll bearing
Ref # 16,17 and 18
on page 10.
Meter roll bearing
Ref # 16,17 and 18
on page 10.
22
24
23
23
23
23
22
22
