2. Auger and Meter Roll Drive Trains
PNEG-545 100 Series Portable Dryer 27
Bottom Auger Drive (Continued)

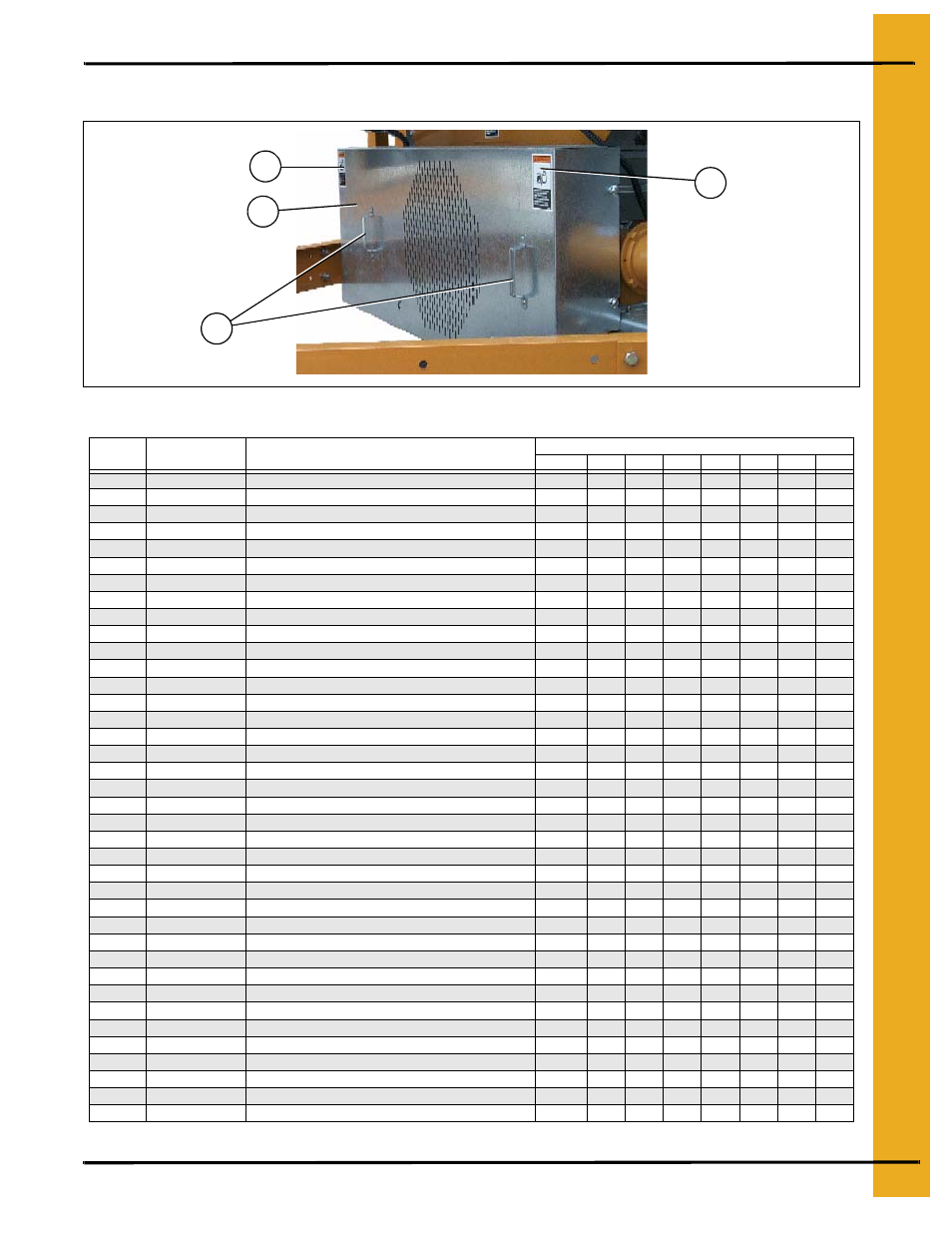

Figure 2B Bottom Auger and Metering Roll Drive Guard
REF # PART # DESCRIPTION
QTY
108T 112 114 116 118 120 122 126
1 D01-1376 BOTTOM FRONT ANGLE BRACKET 1 1 1 1 1 1 1 1
2 D02-0067 BELT - V BX85 2 2
2 MHC00490 BELT - V BX82 2 2 2 2 2 2
3 D03-0174 SHEAVE 2.5 D x 7/8" BORE 1 1
3 2818-2 SHEAVE 2 GR 3.35 D x 1-1/8" 1 1 1
3 D62-0003 SHEAVE 2 GR 4.25 D x 1-3/8" 1 1 1
4 D01-0012 HITCH BRACKET, RIGHT 1 1 1 1 1 1 1 1
5 D01-1373 BELTGUARD, UNLOAD MOTOR SHROUD 1 1 1 1 1 1 1 1
6 D01-0029 HITCH WELDMENT 1 1 1 1 1 1 1 1
7 D01-0011 HITCH BRACKET, LEFT 1 1 1 1 1 1 1 1
8 D01-2435 BOTTOM AUGER BEARING PLATE 1 1 1 1 1 1 1 1
9 D03-0304 SHEAVE 2 GR 20" GRIPBELT 1 1 1 1 1 1 1 1
10 D32-0019 BUSHING Q1-1 1/2" SPLIT TAPER 1 1 1 1 1 1 1 1
11 D01-0065 SPACER, BEARING SHIELD 2 2 2 2 2 2 2 2
*12 D03-1106 MOTOR 1.5 HP 1 PH 1800 RPM 1 1
12 112-3 MOTOR 1.5 HP 3 PH 1800 RPM 1 1
*12 D03-1109 MOTOR 5 HP 1 PH 1800 RPM 1 1 1
12 500-3 MOTOR 5 HP 3 PH 1800 RPM 1 1 1
*12 D03-1010 MOTOR 7.5 HP 1 PH 1800 RPM 1
12 712-3 MOTOR 7.5 HP 3 PH 1800 RPM 1 1
12 1000-3 MOTOR 10 HP 3 PH 1800 RPM 1
13 D01-0081 MOTOR MOUNT - BOTTOM AUGER 1 1 1 1 1 1 1 1
14 D01-0008 FRONT AND REAR FRAME TIE CHANNEL 2 4 4 4 4 4 6 6
15 D01-0007 CORNER LEG 4 4 6 6 6 6 8 8
16 D01-0017 MOTOR ADJUSTMENT BRACKET 2 2 2 2 2 2 2 2
17 D11-0005 FRAME RAIL, 8' RIGHT 1
17 D51-0002 FRAME RAIL, 12' RIGHT 1
17 D21-0011 FRAME RAIL, 14' R.H. 1
17 D01-0538 FRAME RAIL, 16' R.H. 1
17 D31-0044 FRAME RAIL, 18' R.H. 1
17 D61-0002 FRAME RAIL, 20' R.H. 1
17 D101-0002 FRAME RAIL, 22' R.H. 1
17 D71-0002 FRAME RAIL, 26' R.H. 1
18 D01-0016 MOTOR MOUNT SUPPORT BRACKET 1 1 1 1 1 1 1 1
19 D01-1372 BELTGUARD, UNLOAD FRONT SHIELD 1 1 1 1 1 1 1 1
20 PR-331 PEAK CAP HANDLE 2 2 2 2 2 2 2 2
21 DC-971 DECAL, BELT DRIVE WARNING 2 2 2 2 2 2 2 2
22 DC-972 DECAL, CHAIN WARNING 2 2 2 2 2 2 2 2
* Ref # 12, Part # D03-1109 and D03-1010 are Single Phase Motors.
21
19
20
22
