1. Main Structure Assembly
PNEG-545 100 Series Portable Dryer 13
Outer Screens and Meter Roll Access Door
Outer Screens

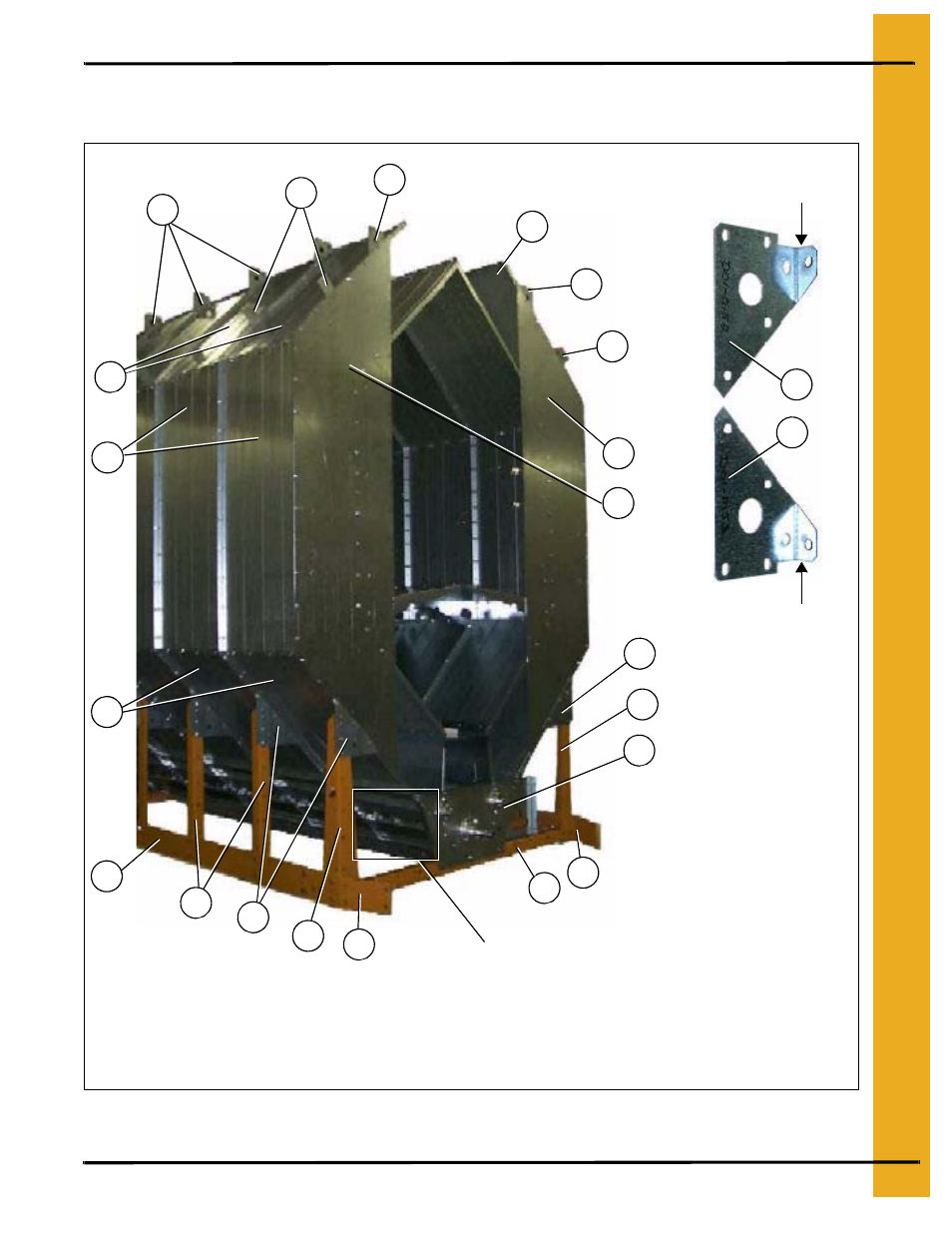

Figure 1J Outer Screens (View from Front End)
13
*
*
See Figure 1K on Page 14
NOTE: Ref # 3 is pointing to the top edge angle gusset. There are two types of gusset on the dryer. The photo above will
help distinguish the difference between the two. The arrows are pointing to a tab on the gusset that makes them
different (tabs are “bent” up in photo). Ref # 3a is used in two places only; 1) front right of dryer; 2) rear left of dryer, all
others are Ref # 3.
3a
3
4
1B
9
10
14
12
11
10
9
8
7
5
4
3
2
3a
2
3
*
6
1A
