3. Fan/Heaters
PNEG-545 100 Series Portable Dryer 43
NG Pipe Train Assemblies

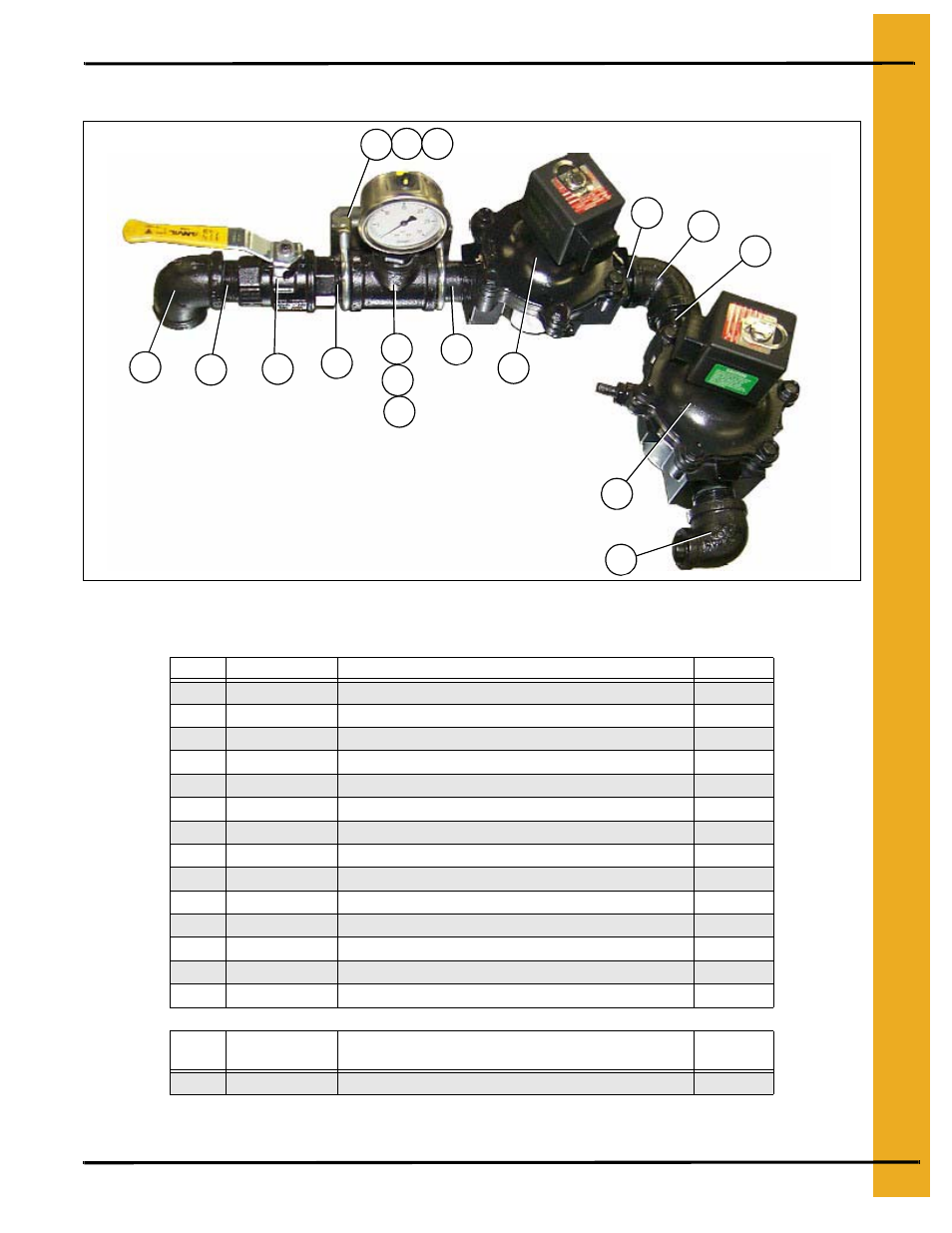

Figure 3I 36" Fan/Heater NG Pipe Train Assembly
36'' Fan/Heater NG Pipe Train Assembly
REF # PART # DESCRIPTION 36'' FAN
1 007-1307-3 ELBOW, 1"-3/4" 1
2 007-1104-4 NIPPLE, CLOSE 1" 3
3 007-1296-8 BALL VALVE, 1" W/LEVER HANDLE 1
4 007-1106-9 TEE, 1" x 1" x 3/4" 1
5 D07-0027 REDUCER, 3/4"-1/4" HEX BUSHING 1
6 D08-0022 GAUGE, PRESSURE 0-15# 1
7 007-1242-2 NIPPLE, 1" x 2" SCH 40 2
8 THH-4115 ELBOW, 1"-90° SCH 40 1
9 056-2224-6 VALVE, SOLENOID 1" NPT 115V DIN 1
10 056-2230-3 VALVE, SOLENOID 1" NPT 115V W/BYP 1
11 THH-4164 ELBOW, 1"-90° STREET SCH 40 1
12 326-1047-9 U-BOLT 5/16"-18 x 1-3/8" x 2-3/16" 2
13 401-5503-8 PLUMBING MOUNTING BRACKET 1
14 401-5255-5 PLUMBING MOUNTING BASE BRACKET 1
REF # PART # DESCRIPTION
ORIFICE
SIZE
* THF-3244 ORIFICE FOR 36" FANS W/15 HP MOTORS .500"
* NOT SHOWN
13 14
5
6
1 2 3
2
4 7
9
7
8
2
10
11
12
