1. Main Structure Assembly
PNEG-545 100 Series Portable Dryer 15
Clean-Out Doors
Figure 1L

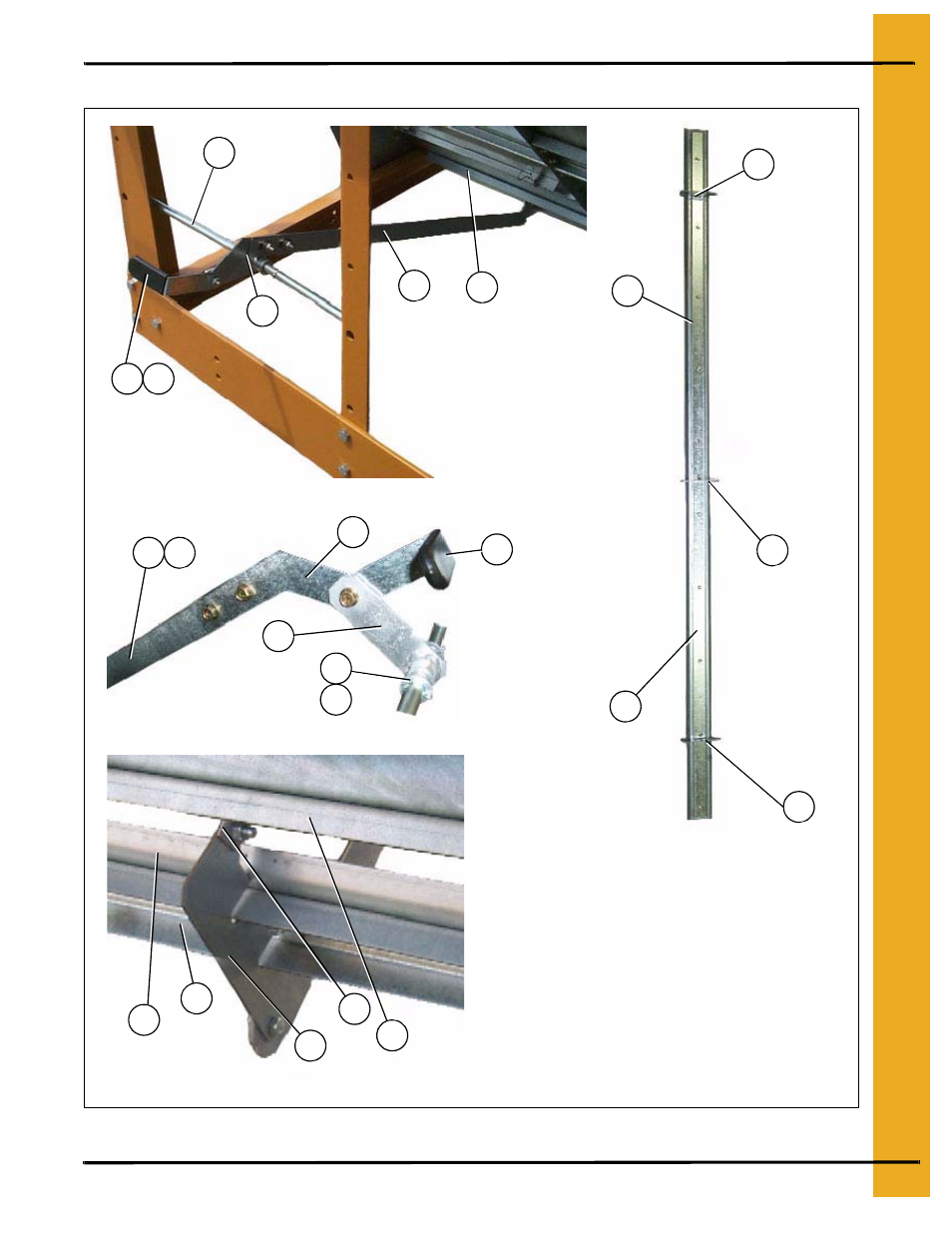

Front and rear handle mechanisms (rear shown in photo)
1
9
11
3a
4
3 5
2
NOTE: Ref # 9, 10 and 11 together create the clean-out door
assembly. There are three different clean-out door
assemblies that are used on GSI Network dryers:
1) 3-column clean-out door assembly (D51-0077). Ref # 8a
on the part # listing (Page 16).
2) 4-column clean-out door assembly (D11-0032). Ref # 8b
on the part # listing (Page 16).
3) 5-column clean-out door assembly (D01-0349). Ref # 8c
on the part # listing (Page 16).
A 5-column clean-out door assembly (D01-0349) is shown in
the photograph above.
4
2
13 3
7
5
12
11
10
9
13
10
11
11
6
Clean-out door hinge
Clean-out door handle mechanism
