6 PNEG-545 100 Series Portable Dryer
1. Main Structure Assembly
Frame Assembly (Continued)

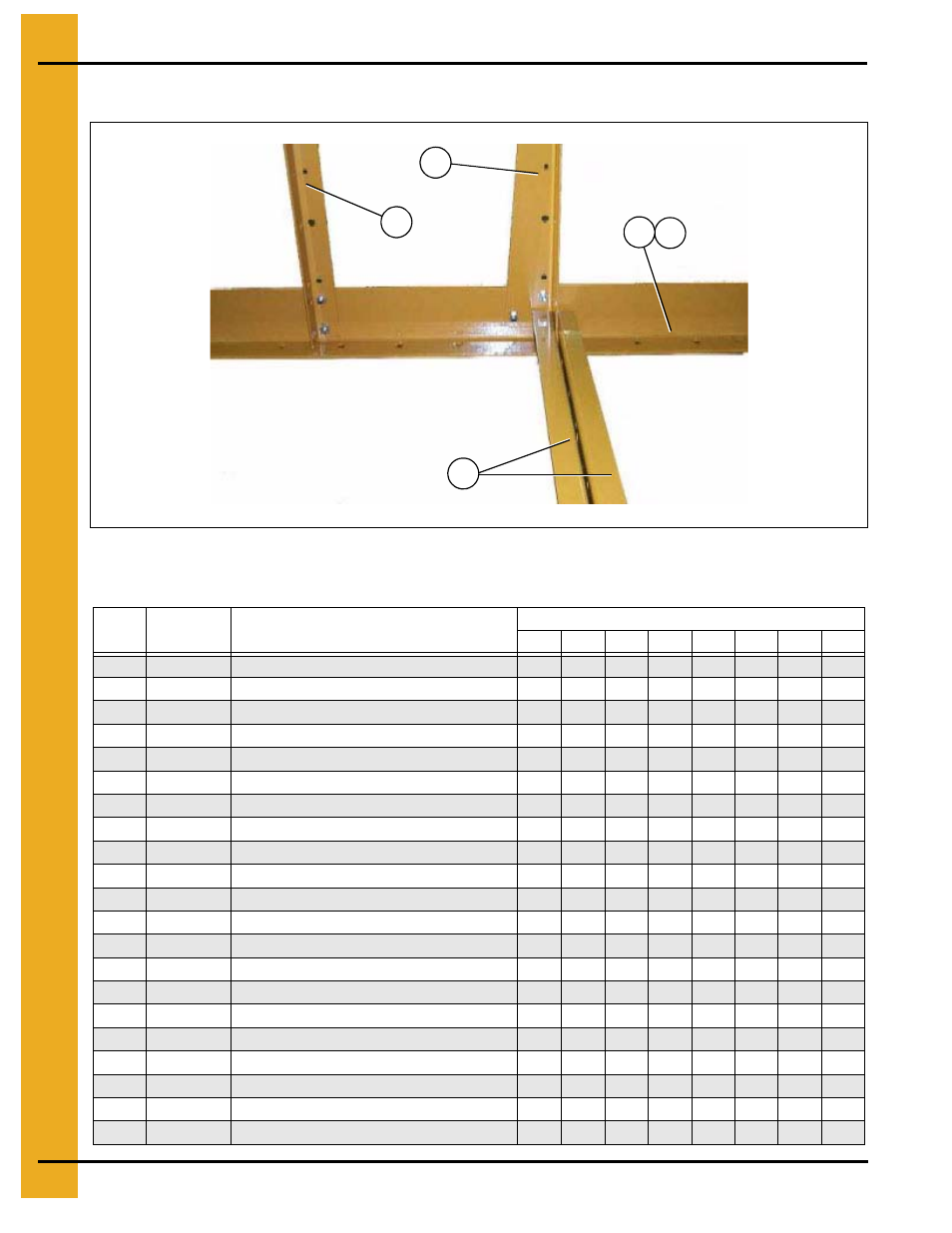

Figure 1D Center Cross Ties
Frame Assembly Parts List (See Figure 1A , 1B , 1C and 1D)
REF # PART # DESCRIPTION
QTY
108T 112 114 116 118 120 122 126
1 D01-0012 HITCH BRACKET RIGHT 1 1 1 1 1 1 1 1
1a D01-0011 HITCH BRACKET LEFT 1 1 1 1 1 1 1 1
2 D01-0008 FRONT AND REAR FRAME TIE CHANNEL 2 4 4 4 4 4 6 6
3 D01-0007 CORNER LEG PORTABLE DRYER 4 6 6 6 6 6 8 8
4 D11-0005 FRAME RAIL, 8' RIGHT 1
4a D11-0004 FRAME RAIL, 8' LEFT 1
4 D51-0002 FRAME RAIL, 12' RIGHT 1
4a D51-0001 FRAME RAIL, 12' LEFT 1
4 D21-0011 FRAME RAIL, 14' RIGHT 1
4a D21-0010 FRAME RAIL, 14' LEFT 1
4 D01-0538 FRAME RAIL, 16' RIGHT 1
4a D01-0537 FRAME RAIL, 16' LEFT 1
4 D31-0044 FRAME RAIL, 18' RIGHT 1
4a D31-0043 FRAME RAIL, 18' LEFT 1
4 D61-0002 FRAME RAIL, 20' RIGHT 1
4a D61-0001 FRAME RAIL, 20' LEFT 1
4 D101-0002 FRAME RAIL, 22' RIGHT 1
4a D101-0001 FRAME RAIL, 22' LEFT 1
4 D71-0001 FRAME RAIL, 26' RIGHT 1
4a D71-0002 FRAME RAIL, 26' LEFT 1
5 D01-0005 SIDE LEG PORTABLE DRYER 6 8 10 12 14 16 16 20
5
4a 4
3
2
