22 PNEG-545 100 Series Portable Dryer
1. Main Structure Assembly
Bottom Auger (Continued)

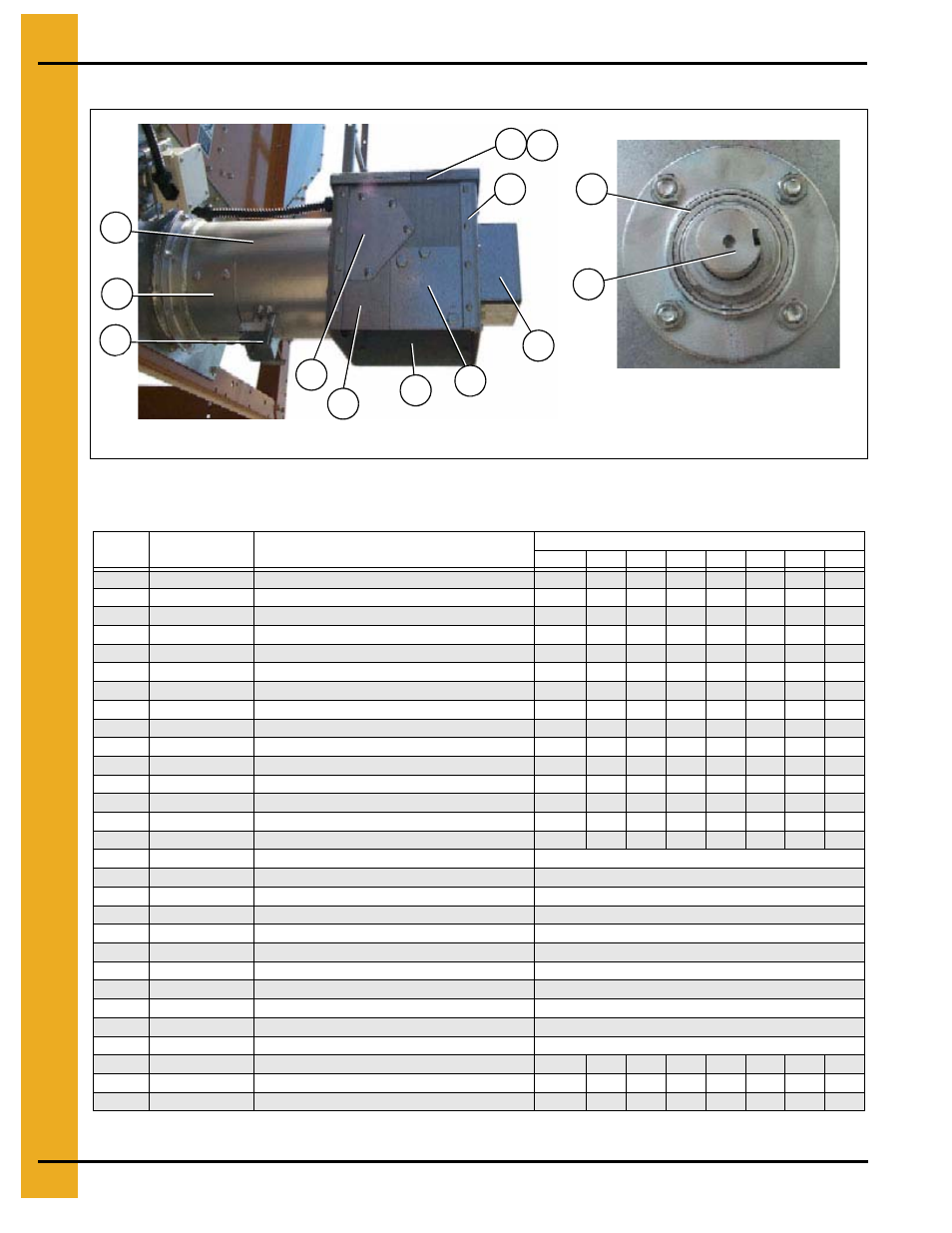

Figure 1S
Bottom Auger Parts List (See Figure 1R and 1S)
REF # PART # DESCRIPTION
QTY
108T 112 114 116 118 120 122 126
1 D01-1214 PLENUM CLOSURE DOOR, REAR 1 1 1 1 1 1 1 1
2 D01-1134 PLENUM CLOSURE DOOR 3 5 6 7 8 9 10 12
3 D01-1819 BOTTOM AUGER 8' 1
3 D21-0017 AUGER BTM FRONT 1 1 1
3 D01-0607 AUGER BTM FRONT 1
3 D31-0092 AUGER BTM FRONT 1 1
3 D31-0092 AUGER BTM FRONT (116-3/8" LONG) 1
4 D01-0801 AUGER BTM REAR 12' 1
4 D31-0267 AUGER BTM REAR 1 1 1 2 2
4 D61-0184 AUGER BTM REAR (117-7/8" LONG) 1
5 D01-1290 HANGER BEARING BOTTOM J-PLATE 2 2 2 2 2 4 4
6 D01-1291 HANGER BEARING BOTTOM C-CHANNEL 1 1 1 1 1 2 2
7 D01-1246 HANGER BEARING ASSEMBLY (SHORT) 2 2 2 2 2 3 3
8 D31-0076 SHAFT, AUGER SPLICE 2 2 2 2 2 3 3
9-19 D01-0481-MS DISCHARGE BOX ASSEMBLY 1 1 1 1 1 1 1 1
9 D01-1884 DISCHARGE WELDMENT 1/ASSEMBLY
10 D01-1886 MOISTURE SAMPLER TUBE COVER PLATE 1/ASSEMBLY
11 D01-0405 GRAIN SAMPLER ASSEMBLY 1/ASSEMBLY
12 D01-1752 DISCHARGE SIDE COVER 1/ASSEMBLY
13 D01-1751 DISCHARGE SIDE PANEL MC 1/ASSEMBLY
14 D31-0298 DISCHARGE SIDE PANEL 1/ASSEMBLY
15 D01-1885 MOISTURE SAMPLER COVER PLATE 1/ASSEMBLY
16 D01-1650 REAR AUGER BEARING SHIELD 1/ASSEMBLY
17 D31-0299 DISCHARGE BOX BEARING PLATE 1/ASSEMBLY
18 D01-0466 DISCHARGE TOP PANEL 1/ASSEMBLY
19 D01-0467 DISCHARGE TOP FLAPPER 1/ASSEMBLY
20 D32-0001 FLANGETTE BEARING 1 1 1 1 1 1 1 1
21 D31-0005 SHAFT, TOP AND BOT AUGER STUB 1 1 1 1 1 1 1 1
* D31-0079 DISCHARGE AUGER WELDMENT 1 1 1 1 1 1 1 1
* NOT SHOWN
19
Auger bearing
Rear discharge box
9
10
11
18
17
16
15
14
13
12
20
21
