PNEG-545 100 Series Portable Dryer
1. Main Structure Assembly
Ladder and Fan Assemblies

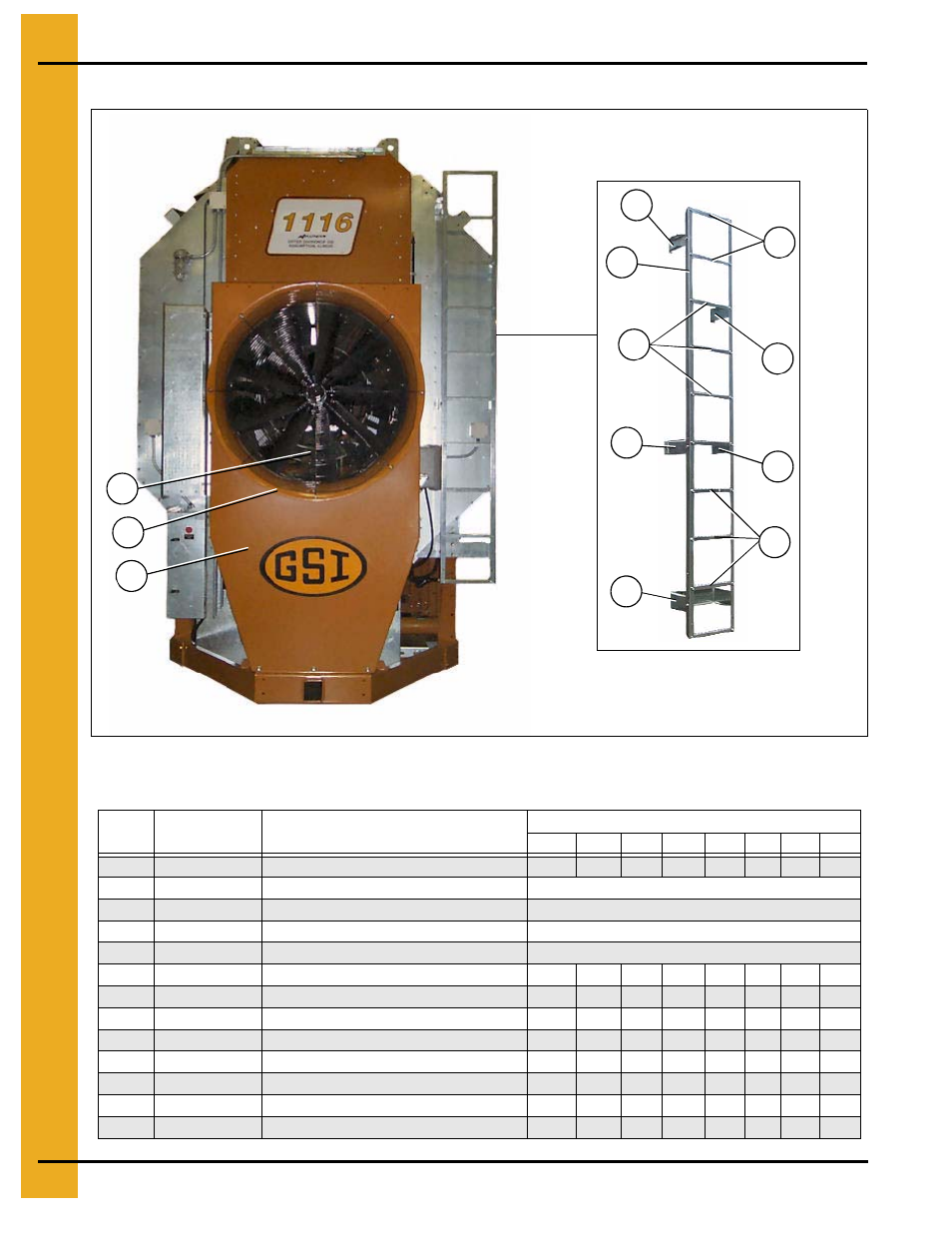

Figure 1Q
Ladder and Fan Assemblies Parts List
REF #
PART #
DESCRIPTION
QTY
108T
112
114
116
118
120
122
126
1-4
D31-0293
LADDER ASSEMBLY, TALL PROFILE
1
1
2
2
2
2
2
2
1
D01-1012
LADDER BRACKET
4 PER ASSEMBLY
2
D31-0020
LADDER RAIL
2 PER ASSEMBLY
3
D01-0112
LADDER RUNG
10 PER ASSEMBLY
4
D01-0114
LADDER LOWER BRACKET
1 PER ASSEMBLY
5
CD-0544
GRILL GUARD: 36"
1
1
5
CD-0547
GRILL GUARD: 40 AND 42"
1
1
1
1
1
1
6
CD-0543-Y
VENTURI: 36" OCHRE
1
1
6
CD-0545-Y
VENTURI: 40" OCHRE
1
1
6
CD-0546-Y
VENTURI: 42" OCHRE
1
1
1
1
7
D51-0007
FRONT FAN SUPPORT 1-36"
1
1
7
D01-1458
FRONT FAN SUPPORT 1-40"
1
1
7
D51-0132
FRONT FAN SUPPORT 1-42"
1
1
1
1
Front and rear ladder assembly
1
2
3
4
1
5
1
1
7
6
3
3
