4. Dryer Electrical Conduits
PNEG-545 100 Series Portable Dryer 49

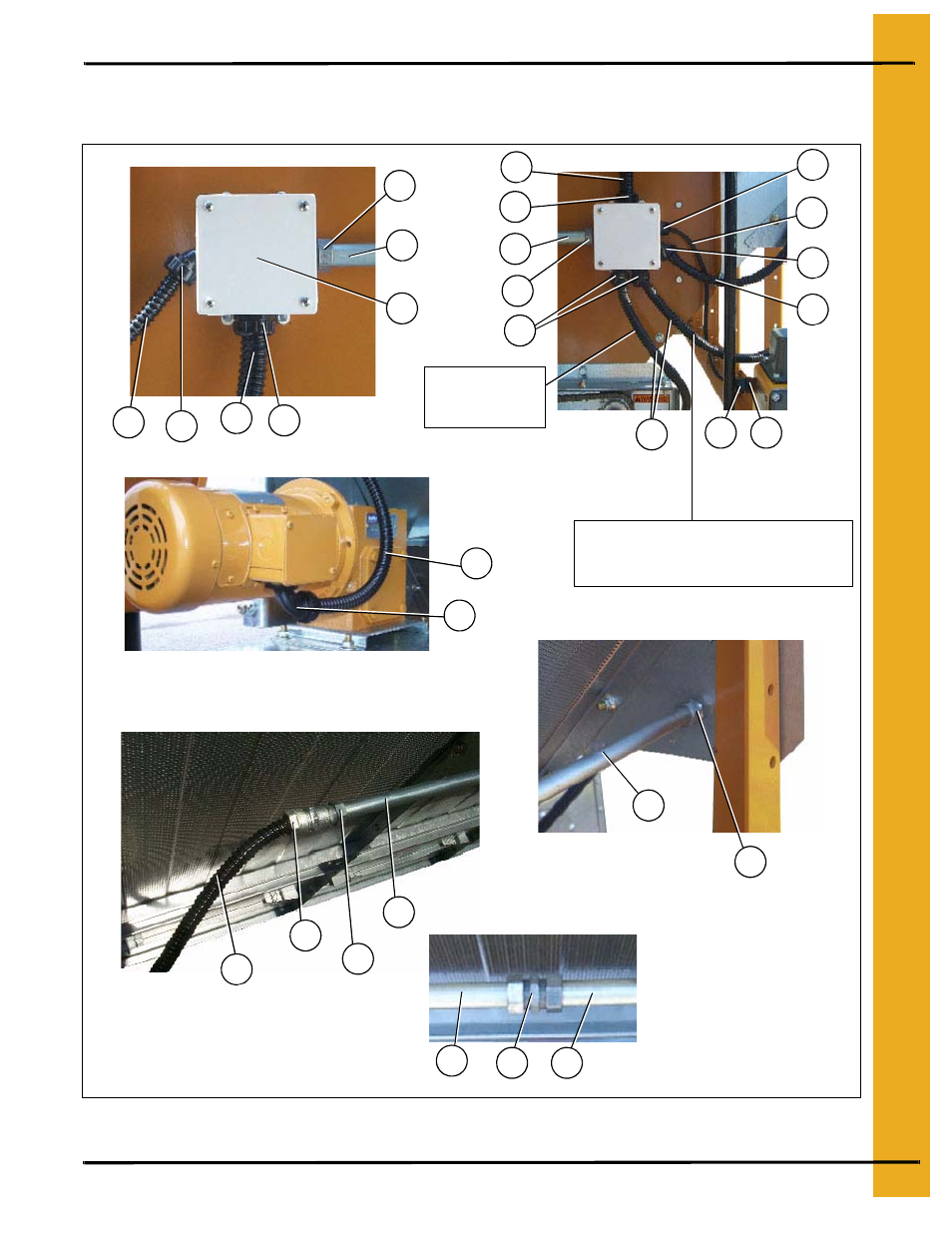

Lower Junction Box, Meter Roll Motor Conduit and Rear
Discharge Conduit
Figure 4C
Lower junction box (left)
Rear discharge switch conduit at rear left gusset
where 1/2" EMT conduit terminates.
Meter roll speed sensor and rear discharge
switch conduit. This is a photo of the front
section of the conduit that runs through the
gussets on the left side of the dryer.
Meter roll motor conduit connection
Lower junction box (right)
Coupler for 1/2" EMT conduit
14
13
12
1
1
11
1
2
3 4
Conduit to meter
roll motor
(see photo below)
2
6
5
4
3 8
9
2
1
8 10 1
13
7
5
6
14
15 14 14
Conduit to meter roll speed sensor and
rear discharge switch
(See photos below and on next page).
