PNEG-545 100 Series Portable Dryer
3. Fan/Heaters
NG Pipe Train Assemblies (Continued)

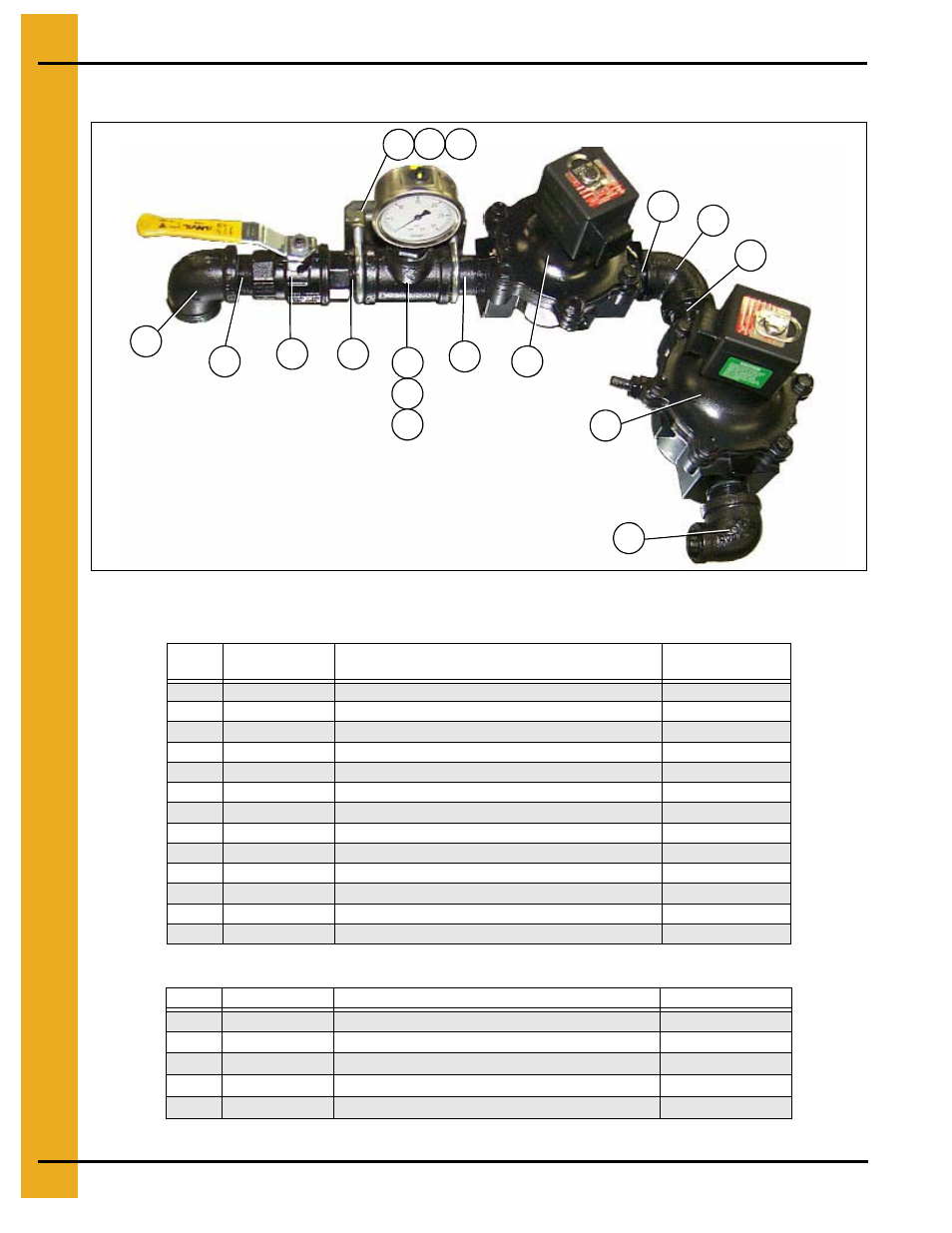

Figure 3J 40" and 42" Fan/Heater NG Pipe Train Assembly
40" and 42" Fan/Heater NG Pipe Train Assembly Parts List
REF #
PART #
DESCRIPTION
40'' AND 42''
FANS
1
THH-4115
ELBOW, 1"-90° SCH 40
2
2
007-1104-4
NIPPLE, CLOSE 1"
3
3
007-1296-8
BALL VALVE, 1" W/LEVER HANDLE
1
4
007-1106-9
TEE, 1" x 1" x 3/4"
1
5
D07-0027
REDUCER, 3/4"-1/4" HEX BUSHING
1
6
D08-0022
GAUGE, PRESSURE 0-15#
1
7
007-1242-2
NIPPLE, 1" x 2" SCH 40
2
8
THH-4164
ELBOW, 1"-90° STREET SCH 40
1
9
056-2224-6
VALVE, SOLENOID 1" NPT 115V DIN
1
10
056-2230-3
VALVE, SOLENOID 1" NPT 115V W/BYP
1
11
326-1047-9
U-BOLT 5/16"-18 x 1-3/8" x 2-3/16"
2
12
401-5503-8
PLUMBING MOUNTING BRACKET
1
13
401-5255-5
PLUMBING MOUNTING BASE BRACKET
1
REF #
PART #
DESCRIPTION
ORIFICE SIZE
*
THF-3246
ORIFICE FOR 40" FANS W/15 HP MOTORS
.516"
*
THF-3248
ORIFICE FOR 42" FANS W/20 HP MOTORS
.547"
*
THF-3250
ORIFICE FOR 42" FANS W/25 HP MOTORS
.578"
*
THF-3251
ORIFICE FOR 42" FANS W/30 HP MOTORS
.594"
*
THF-3253
ORIFICE FOR 42" FANS W/40 HP MOTORS
.641"
* NOT SHOWN
12
13
5
6
1
2
3
2
4
7
9
10
7
1
2
11
8
