8

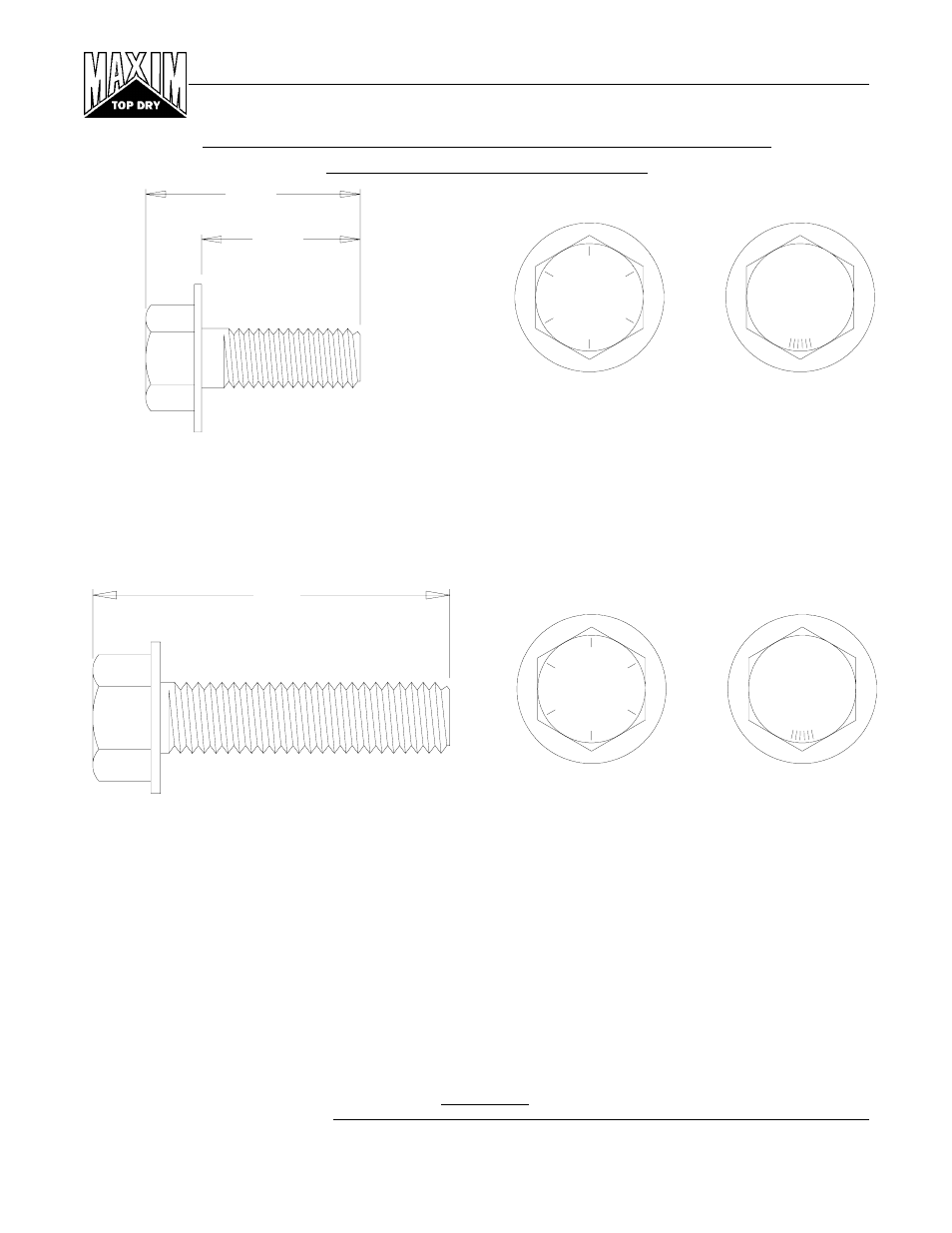

18' Autoflow
SIDE VIEW
REFER TO TOP DRY TANK BOLTING REQUIREMENTS
FOR COMPLETE BOLT USAGE
1.000"
1.377"
GRADE 8
GRADE 8.2
TOP VIEW
Figure #7
SIDE VIEW
S-7928
1.873"
GRADE 8
GRADE 8.2
TOP VIEW
.375" x 1.500" hex flanged head without a plastic sealing washer.
Note: The only washers shipped loose with the bins are the steel flat washers. The 5/16" steel flat washer
(S-845) is used where the base angle attaches to the sheet and some are used at the main eave clips. The
3/8" steel flat washers (S-248) are used at the stiffener splices and some are used in the roof rafter splices.
This bolt is used to attach the wall bracket to the sidewall and stiffener. A steel flat washer is used on the
nut side of the connection.
This bolt is used to splice the stiffeners together on the flanges. A steel flat washer is used on the nut side of
the connection. They are also used on "c" channel splices and mounting "c" channel to wall bracket.
.375" x 1.000" hex flanged head without a plastic sealing washer.
S-7927
REV. 11-20-96
