45
18' Autoflow
Grain Systems, Inc. Assumption, Ill.
REV. 11-20-96
Sizing angle is to be
installed on inside of bin
sidewall sheet as shown.
The flanges on transition top are to go
on the outside of transition sides. The
flanges on transition bottom are to go
on the inside of transition sides.
* Hardware Package
not shown
- Included in
Hardware Package

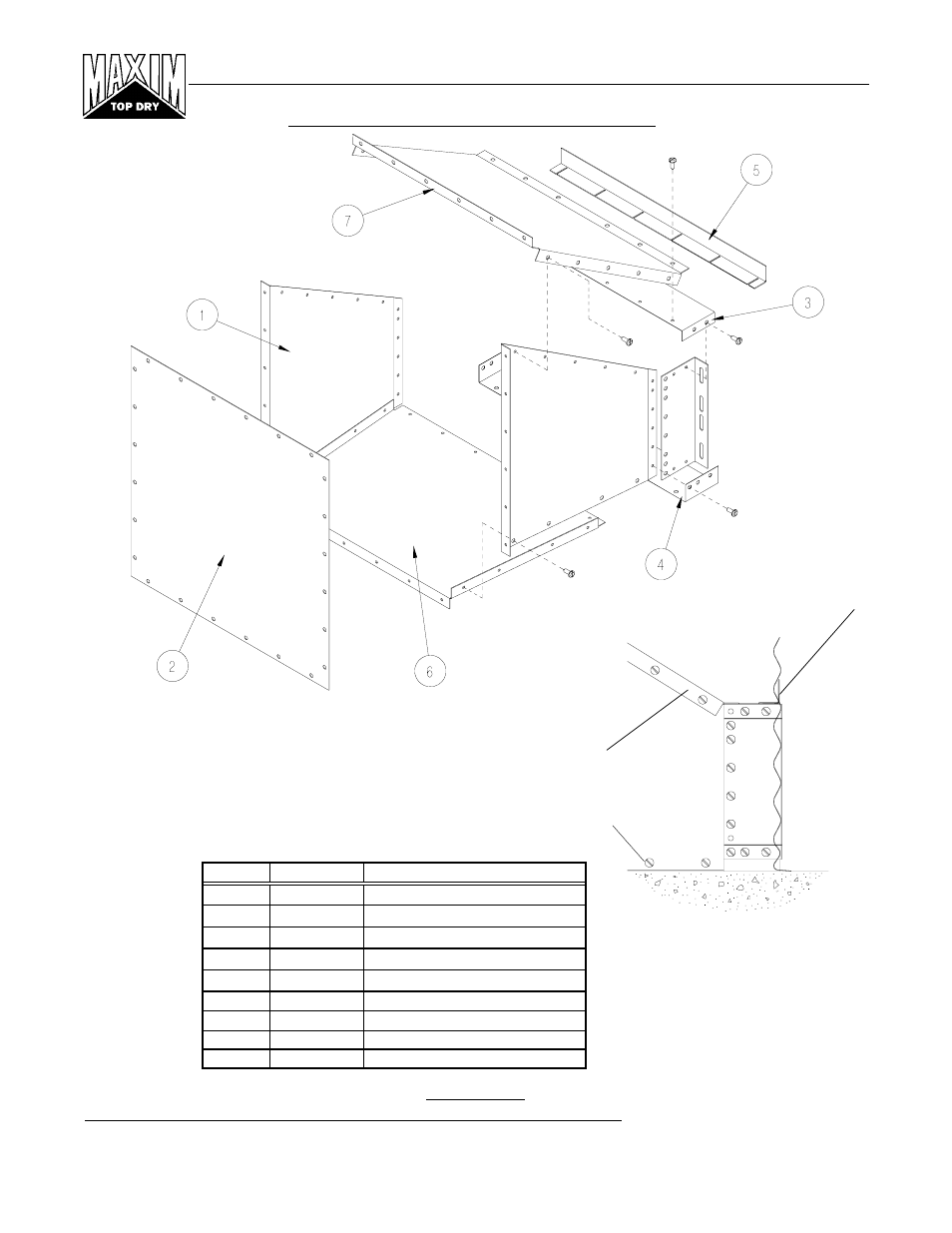

Figure #53
Key Part Number Description
1 TR-4724-1 Transition side
1 TR-4724-2 Transition side
2 TR-4767 Transition faceplate
3 TR-4726 Top entrance collar piece
4 TR-4727 Bottom entrance collar
5 TR-4728 Sizing angle
6 TR-4729 Transition bottom
7 TR-4730 Transition top
8 TR-4731 Entrance collar side bracket
TRANSITION ASSEMBLY (TR-4734)
