Perforated center band, Figure #48 – Grain Systems PNEG-366 User Manual
Page 40
Grain Systems, Inc. Assumption, Ill.
40
18' Autoflow

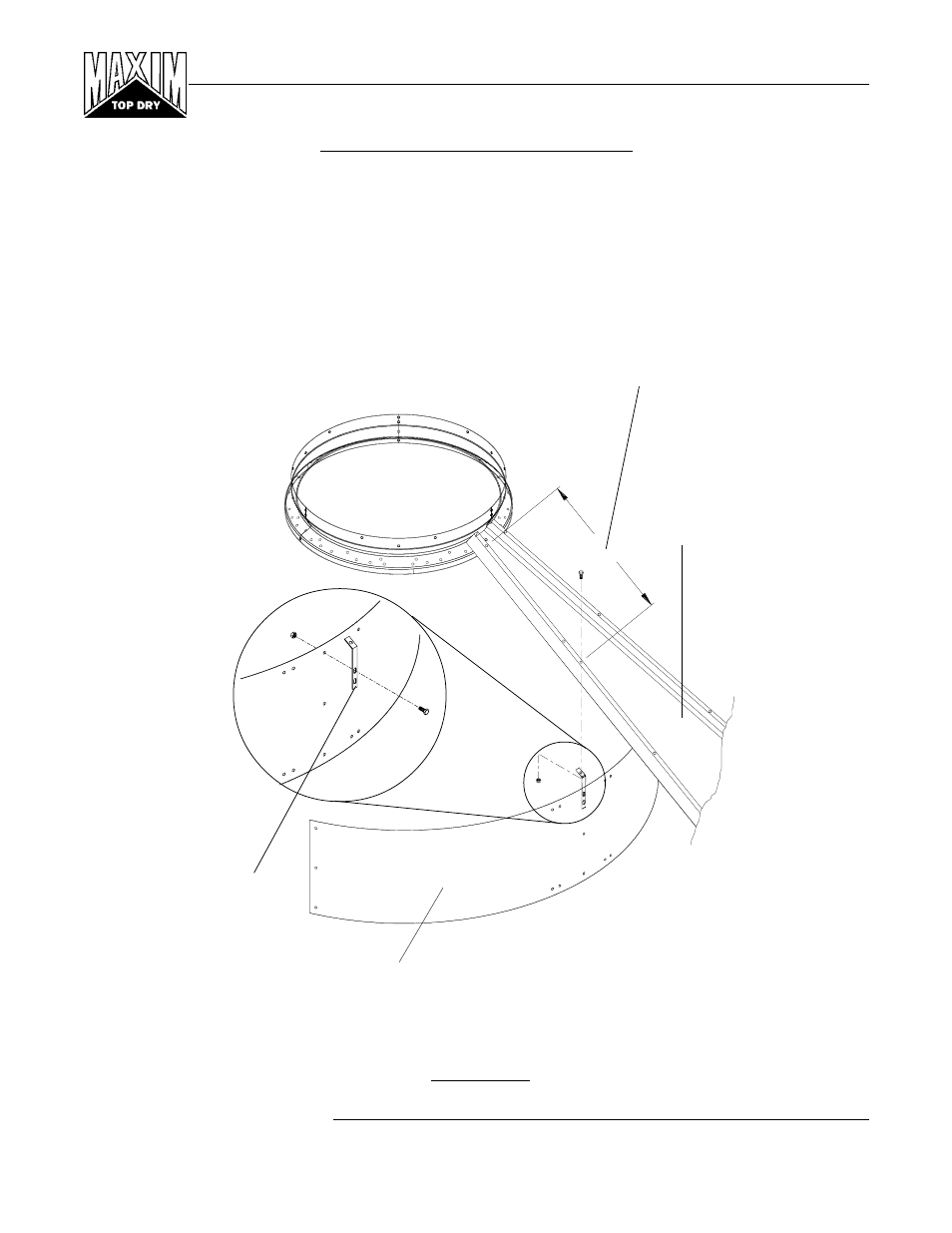

PERFORATED CENTER BAND
Drill (6) 3/8" diameter holes equally spaced as shown above for top band clips. Attach clips using 5/16" x 3/
4" bin bolts. Add perforated band sections. Note that these do not attach to the leveling bands but hang down
on the inside of the top inner leveling band.
Measure down 24.1/2"
from first hole in roof
sheet and drill hole for
band clip.
TD-100107
Top Band Clip
(6) Equally spaced
TD-100545
(3) Perforated Band
Figure #48
Roof Sheet
REV. 11-20-96
