Grain Systems PNEG-366 - Manual (Page 14)

Grain Systems, Inc. Assumption, Ill.
14
18' Autoflow
FC-4207516 16 GA.
BLUE
FC-4207518 18 GA.
ORANGE
FC-4207516 16 GA.
BLUE
FC-4207518 18 GA.
ORANGE
3/8" DIA. HEX FLANGED
HEAD BOLT (NO
SEALING WASHER)
USE 3/8" X 1.1/2"
BOLT, NUT AND WASHER

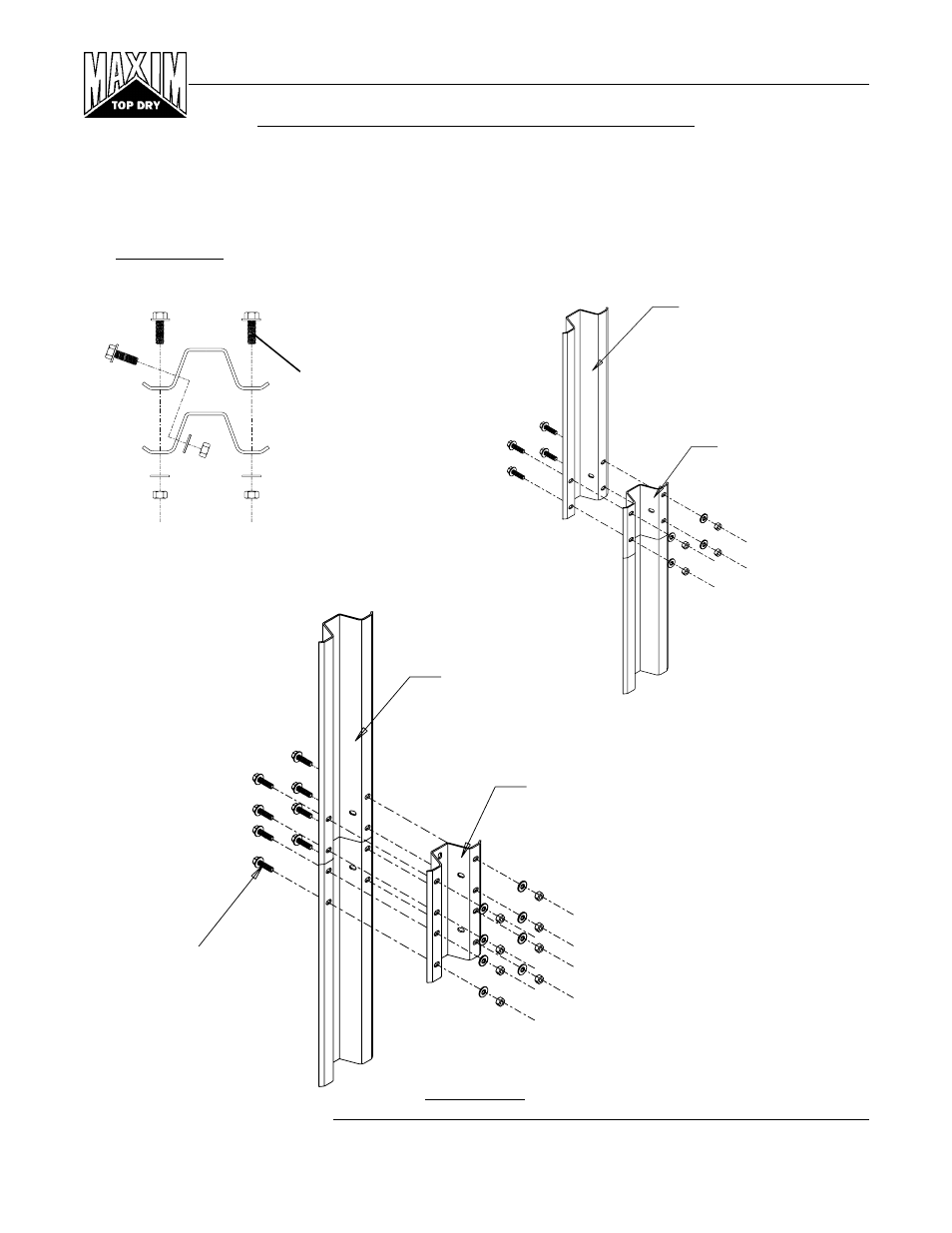

SPLICE PLATE JOINT
(TOP VIEW)
OFFSET JOINT CONNECTION
DETAIL
FC-4206308 8 GA.
YELLOW
FC-42062 10 GA.
PURPLE
FC-42076 SPLICE
3/8" DIA. HEX FLANGED
HEAD BOLT (NO
SEALING WASHER)
Figure #12
When installing bottom stiffeners, you may find that in some cases the stiffener with base plate attached
will not rest on the foundation (due to unlevel concrete, etc.) Shim plates have been furnished and should be
used to fill opening between base plate and concrete.
IMPORTANT: If shim plates are not used where required, the downward pressure of the stiffeners will
not be transferred directly to the foundation, and bin failure could result.
STIFFENER INSTALLATION & LOCATION
REV. 11-20-96
