18' Autoflow
Grain Systems, Inc. Assumption, Ill.

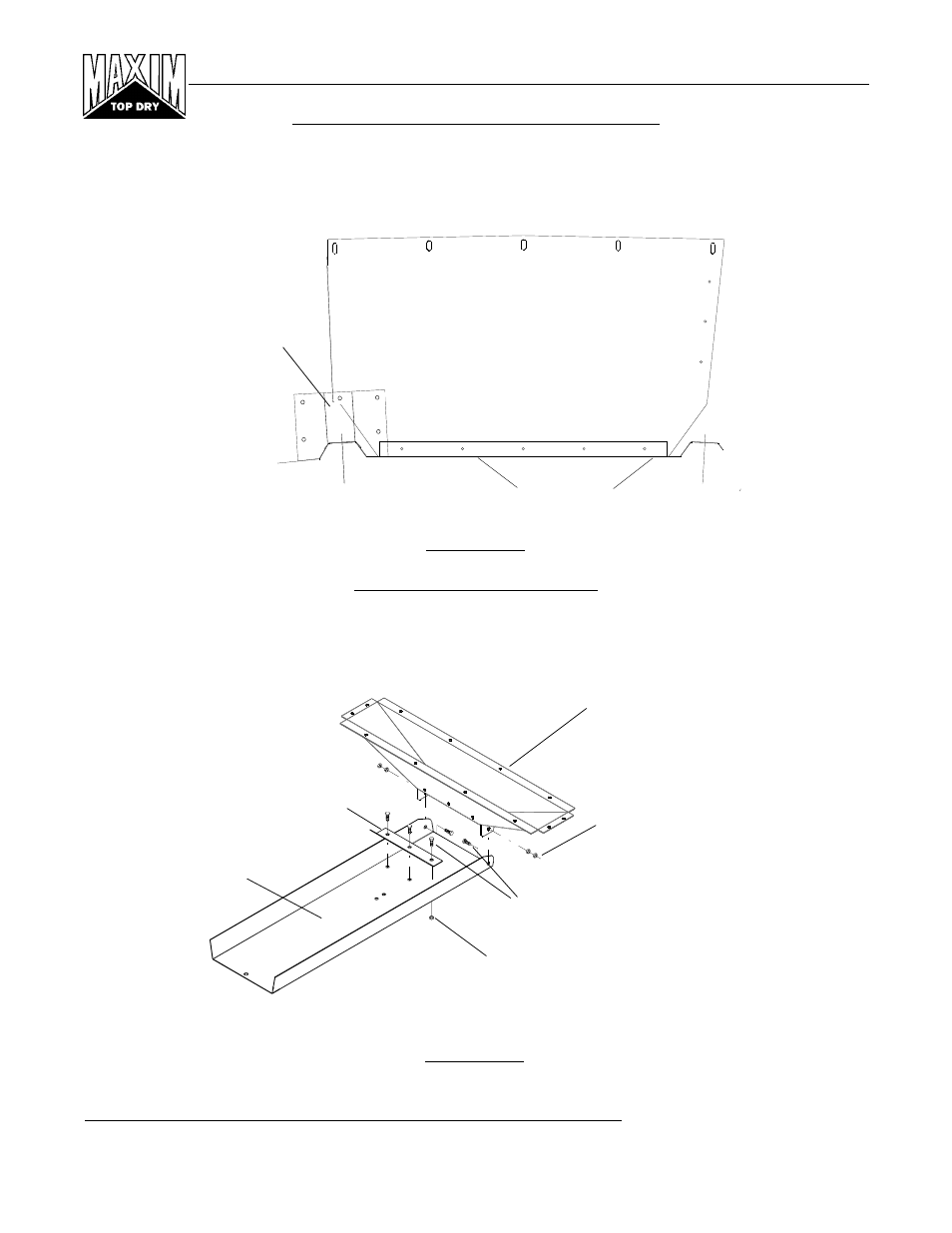

OUTER DUMP CHUTES
Bolt a TD-100598 angle dam to each dump chute using (3)1/4" x 5/8" bolts and nuts, as shown below. Use 1/4" x
5/8" bolts and double nuts to fasten dump chutes to hopper. Do not tighten first nut down. Lock second nut to first
nut and make sure chutes raise and lower freely.
Figure #30
TD-100647
Dump Hopper Assembly
S-1102
1/4" Nut (2 per bolt)
S-1102
1/4" Nut (1 per bolt)
S-1429
1/4" x 5/8" Bolt
TD-100598
Angle Dam
TD-100017
Dump Chute
Figure #31
REV. 11-20-96
FLASHING SPLICE INSTALLATION
The flashing splice pieces can now be attached to the eave flashing to seal around the rib of the floor sheet as shown
with (S-280) #10 self-drilling screws.
Top Ring
#10 Self-drilling Screws
(S-280)
TD-100648
Eave Flashing
(as viewed from inside the bin)
TD-100649
Eave Flashing
Splice
