18' Autoflow
Grain Systems, Inc. Assumption, Ill.

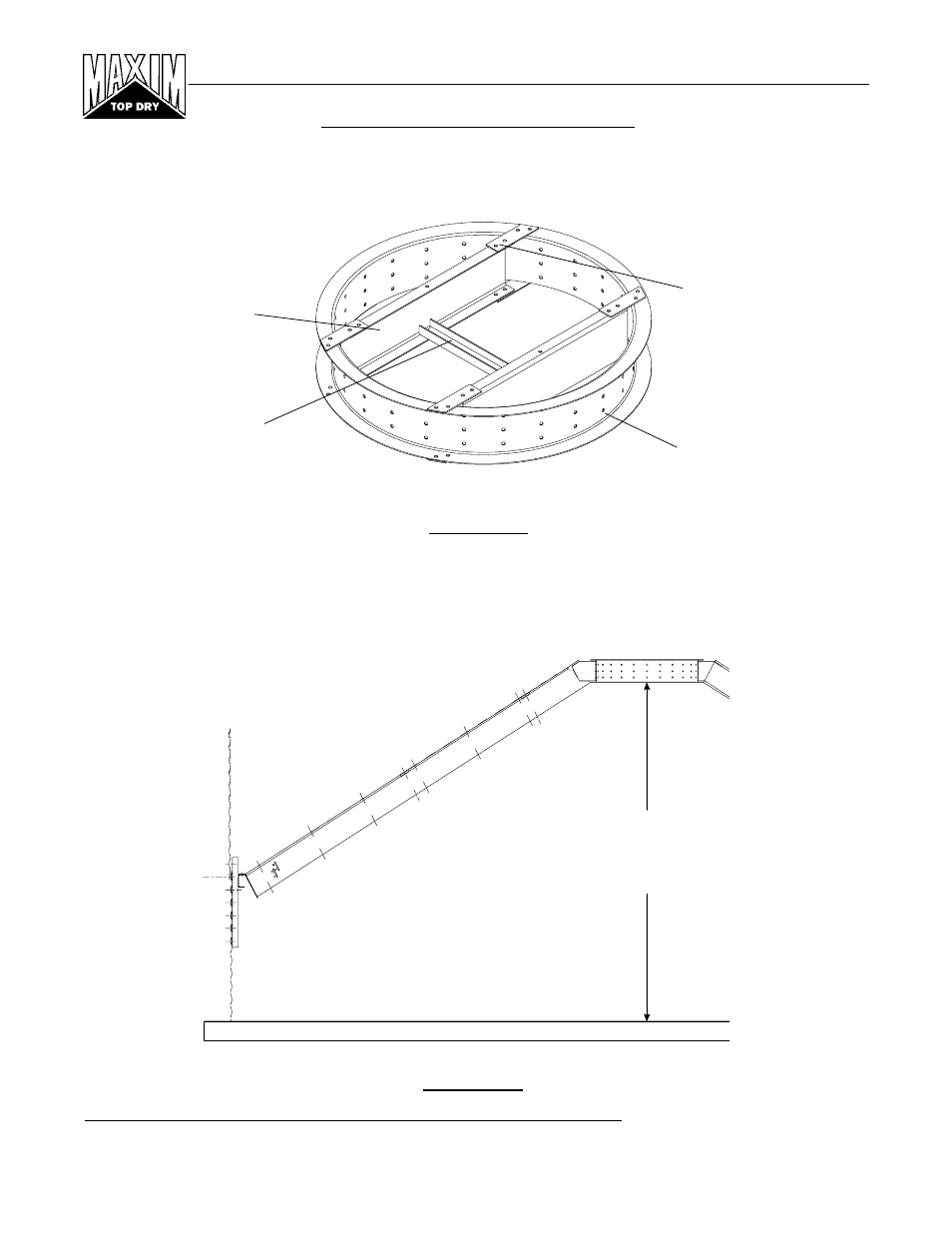

CENTER COLLAR ASSEMBLY
Add channel braces and brace plates to center collar as shown using 3/8" x 1" bolts and nuts. (Do not attach cross channel
until floor is done.)
Position the center collar at the center of the bin and raise it to approximately 7'-0.3/4" measuring from the bottom
edge of the collar to the concrete.
TD-100460
Channel Brace Plate
TD-100630
Center Collar
TD-100459
Channel Brace
TD-100004
Center Collar Cross
Channel
(Don't install until floor
is completed)
Figure #21
Figure #22
7'-0.3/4"
REV. 11-20-96
