Loading Fanfold Media
Fanfold media feeds through rear label entrance slot or opening.
1. Open the printer media cover.
2. Push the deck lock lever back to open the pivoting deck.
3. Move the label roll guide to the end of media hanger beam then place roll guide to horizontal
position.
4. Remove the 3 inch core adapters from the media hanger beam.
5. Insert fanfold media through the rear label entrance slot.
6. Thread leading edge of fanfold label under the media guide bar onto the platen roller.
7. Adjust the media width guide to fit label width.
8. Push both sides of pivoting deck down to close it, ensuring the latches engage properly.
9. Use the Configuration Utility to set the media sensor type and calibrate the selected sensor.
Note: Calibrate the gap/black mark sensor when changing media.

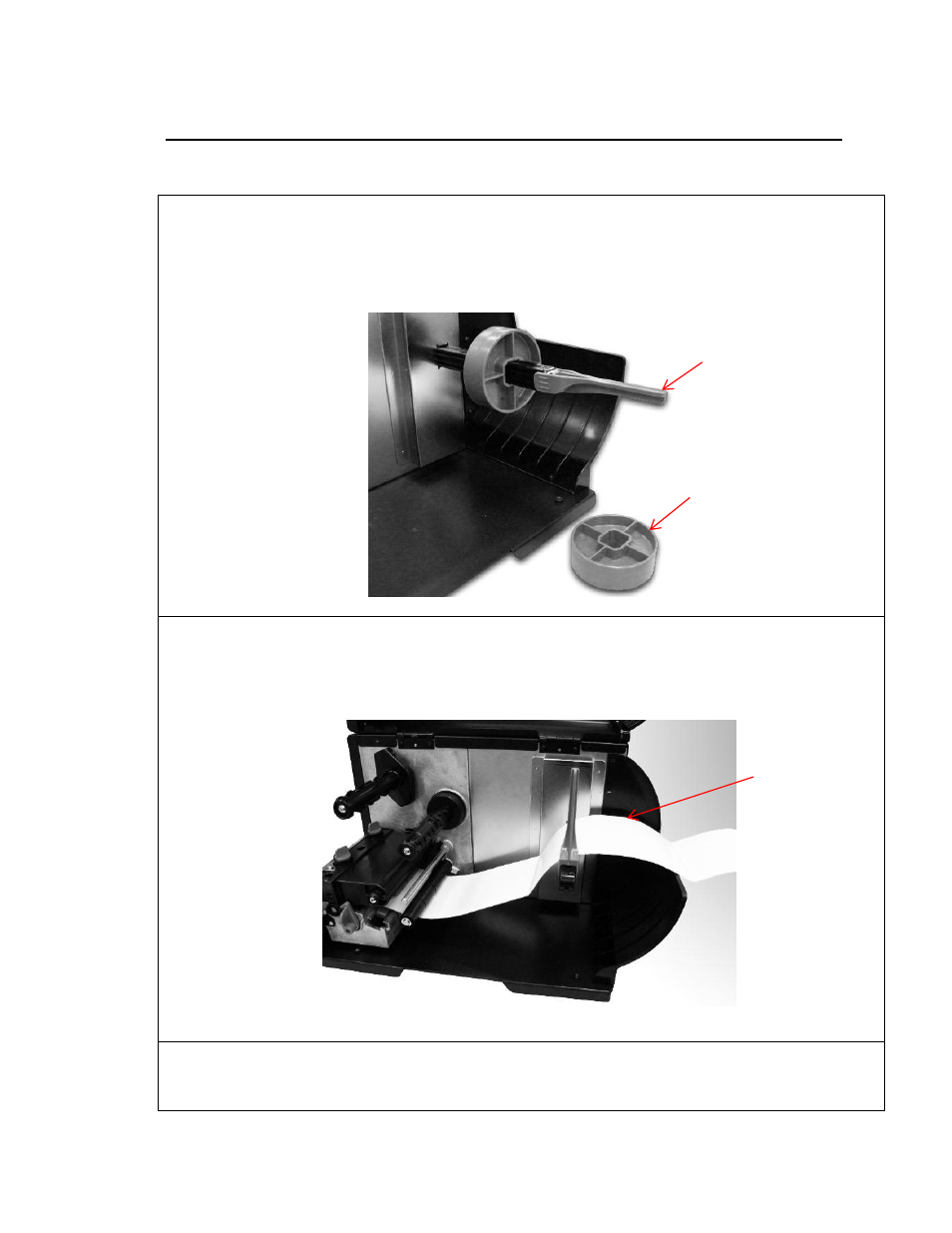

Fanfold
Media
Label Roll
Guide
3 Inch Core
Adapters (2)
