Ribbon Installation
Loading Ribbon

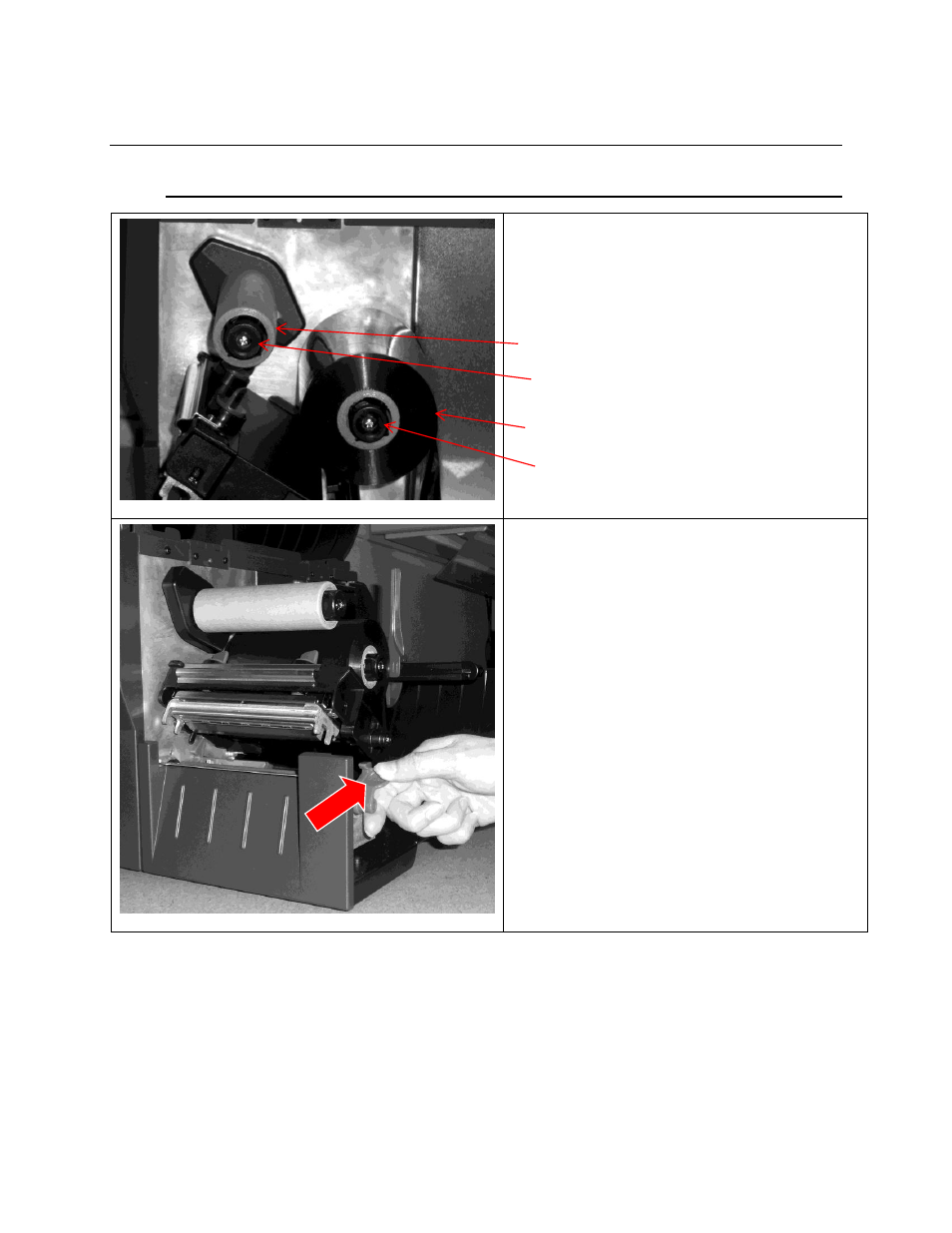

1. Open the printer media cover.
2. Load the ribbon onto ribbon supply spindle
and ribbon core onto ribbon take-up spindle.
3. Push the paper core and ribbon roll to the
inboard end of each spindle.
4. Push the deck lock lever back to open the
pivoting deck.
Ribbon Core
Ribbon Take-Up Spindle
Ribbon
Ribbon Supply
Spindle
