Printronix T2N User Manual
Page 23
23

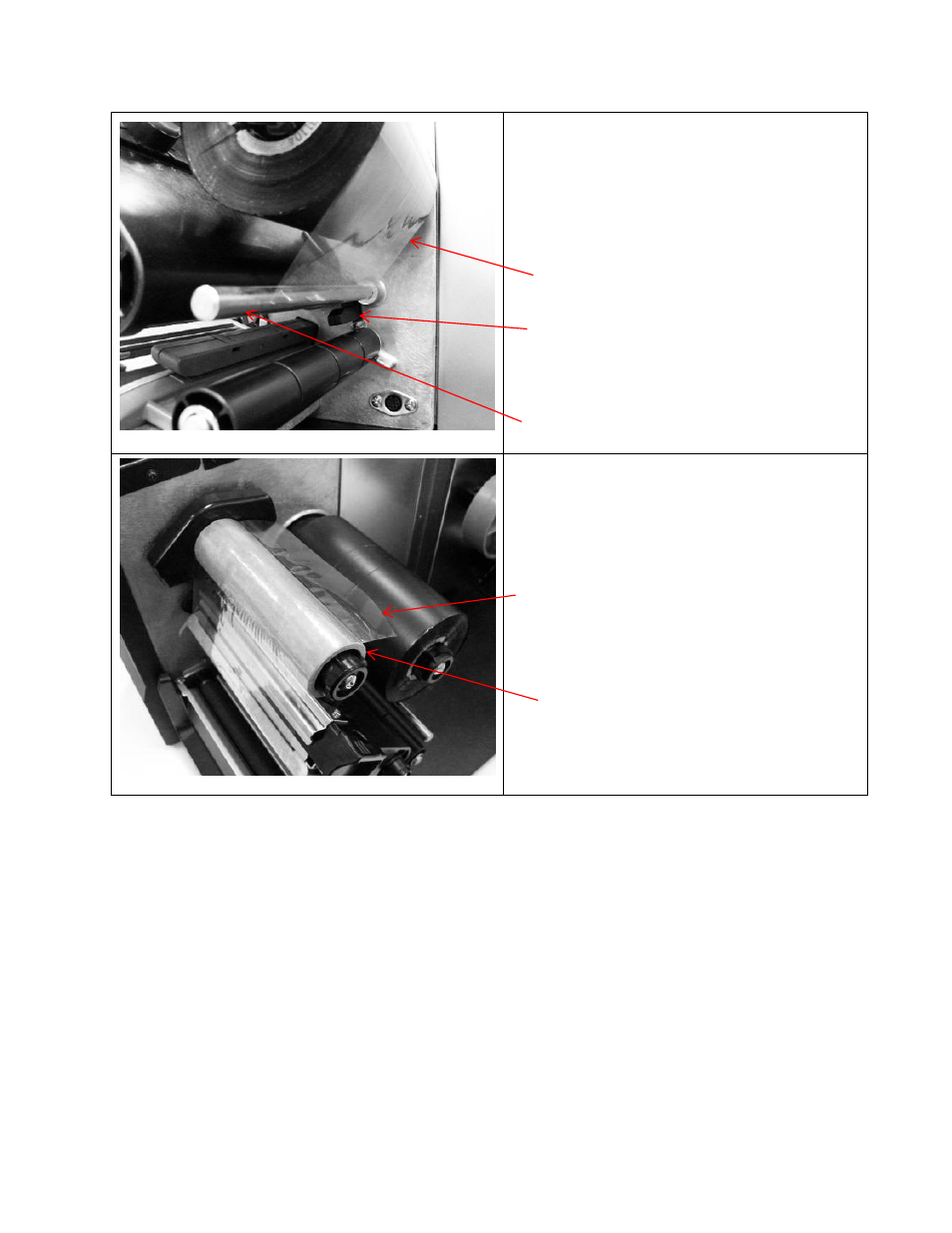

5. Thread the ribbon under ribbon guide bar and
through ribbon sensor slot. (See page 25 for
ribbon loading diagram or refer to diagram on
printer media cover.)
6. Tape ribbon leader onto ribbon core. Keep
ribbon wrinkle-free.
Ribbon Sensor
Ribbon Guide Bar
Ribbon Leader
Ribbon Core
Ribbon Leader
