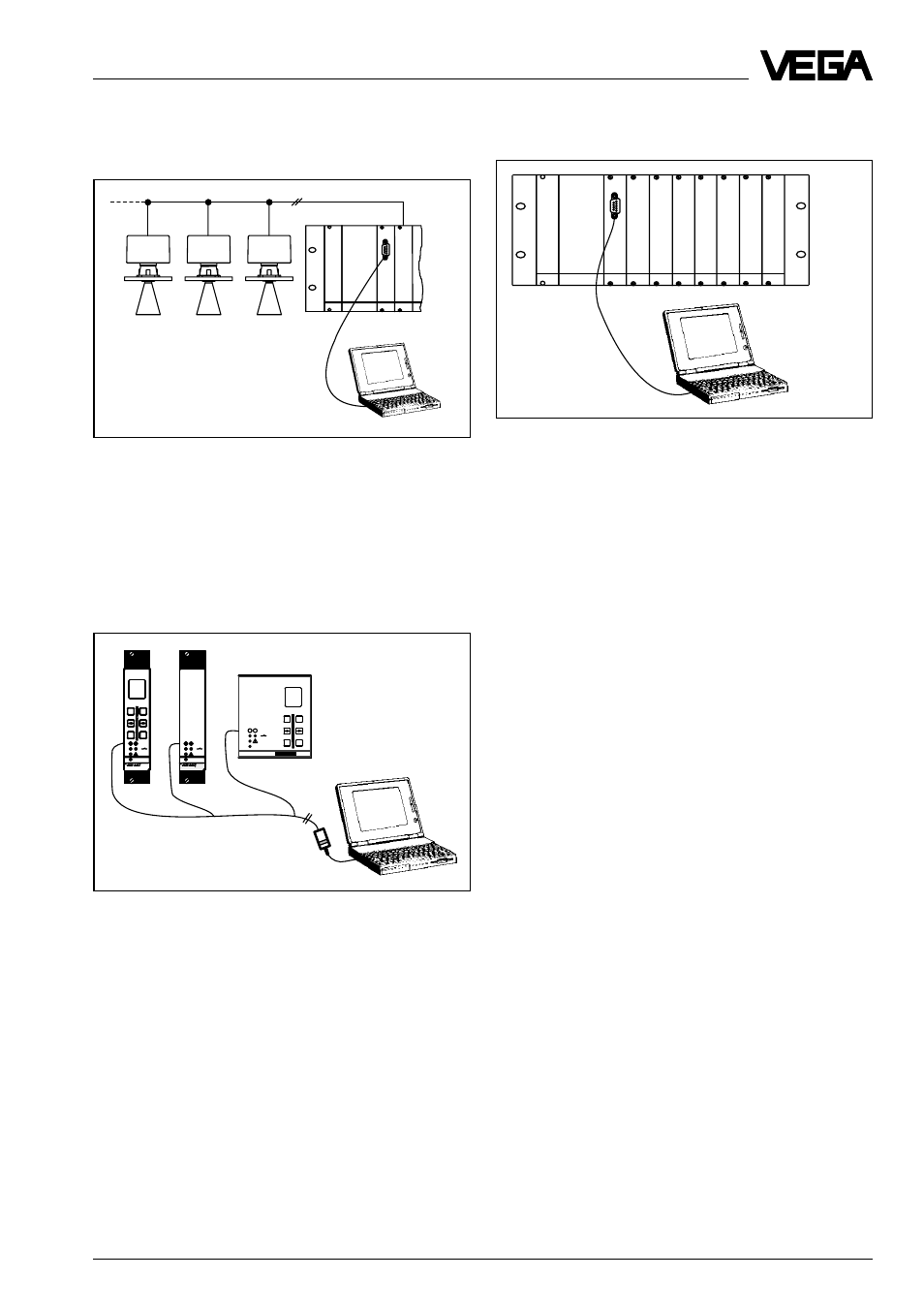

3.4 VVO on the CPU-card of
VEGALOG
The PC is connected via a RS 232-cable to
the CPU-card of VEGALOG 571. In this case
a VEGACONNECT 2 is not necessary.
3.5 VVO on the signal conditioning
instrument
VEGAMET 614
+
OK
-
ESC
100
%
CONNECT
2 1
on
Ser. No.
12345678
ESC OK
- +
1 2
on
100
%
CONNECT
514 V
1 2
on
CONNECT
514 V
VEGACONNECT 2
As with the sensors, also for connection to a
signal conditioning instrument, a VEGACON-
NECT 2 should be used. It is plugged to the
"CONNECT“-sockets on the front plate of the
signal conditioning instrument.
3.6 VVO on VEGACOM
The PC is connected via a RS 232-cable to
the D-SUB-plug in the front plate of VEGA-
COM 557. Also here, as with VEGALOG,
there is no VEGACONNECT 2 required.
Therefore an access to all instruments is
possible.
