VEGA Visual Operating 43
Set-up of the processing system VEGALOG
11 Set-up of the processing system VEGALOG
Connect the CPU-card of VEGALOG
and the PC with the RS 232-interface
cable (as described under "3.5 VVO on
the CPU-card“). Then start VVO. When
VVO is already started and you con-
nect VEGALOG, push the function key

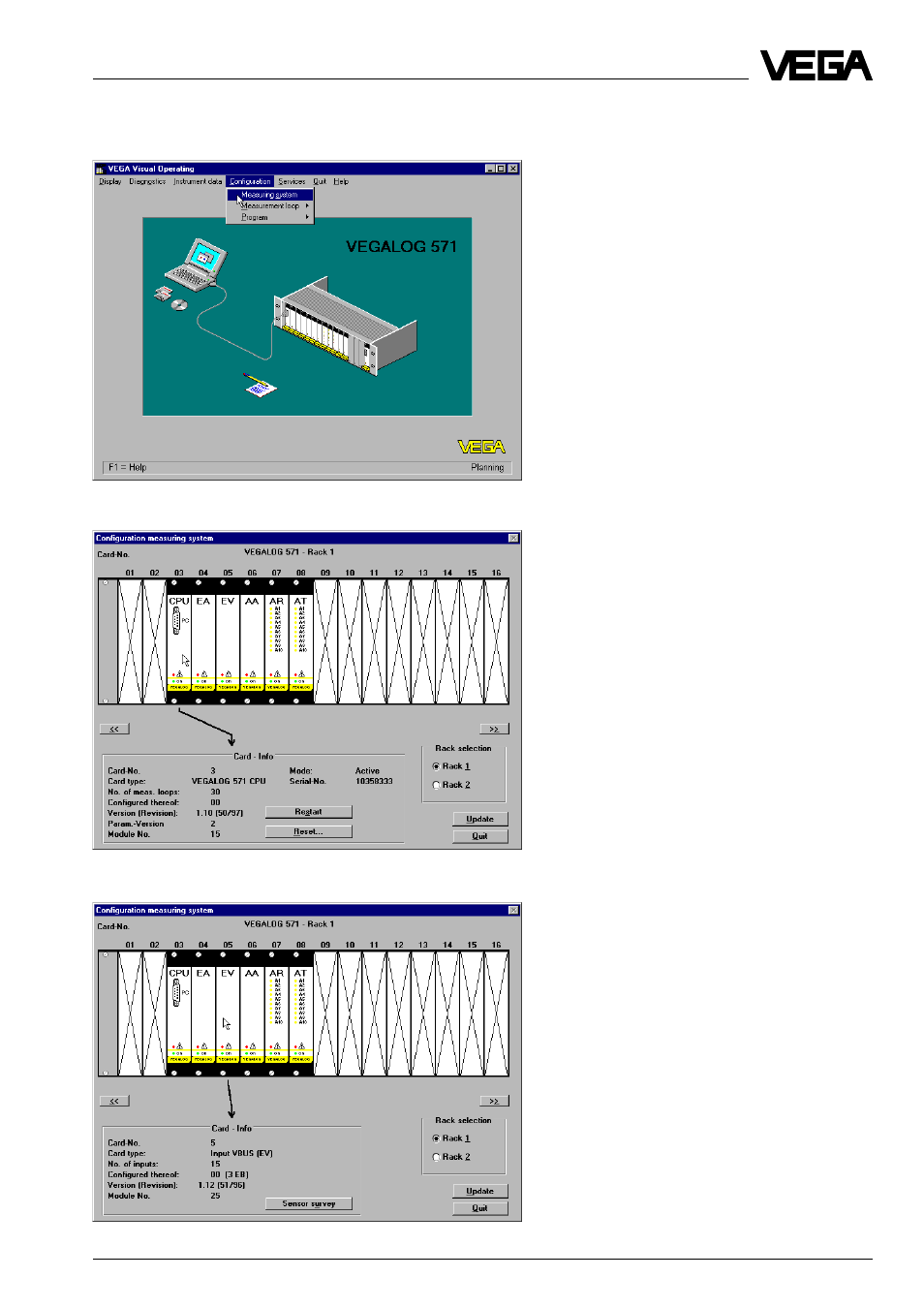

F8 on the PC. Then the monitor shows
this picture. First click to
Configuration
and then to
Measuring system to con-
figure VEGALOG.
Your VEGALOG is now displayed ac-
cording to your configuration. By click-
ing to a card (e.g. CPU-card) or
clicking the buttons
<< and >> you
can enquire card-info on all available
VEGALOG-cards. If you have clicked
to the CPU-card (as shown), you can
carry out
Restart (corresponds to
short-term switching off the CPU) or
Reset. With Reset all already created
measurement loops of VEGALOG are
deleted.
When you have enquired EV-card (EV
stands for input - VBUS-sensor), you
can click to the button
Sensor survey.
Then all VBUS-sensors will be listed in
the window "Sensor survey Card-No. X“
which are connected to the EV-card.
