VEGA Visual Operating 57
General VVO-functions

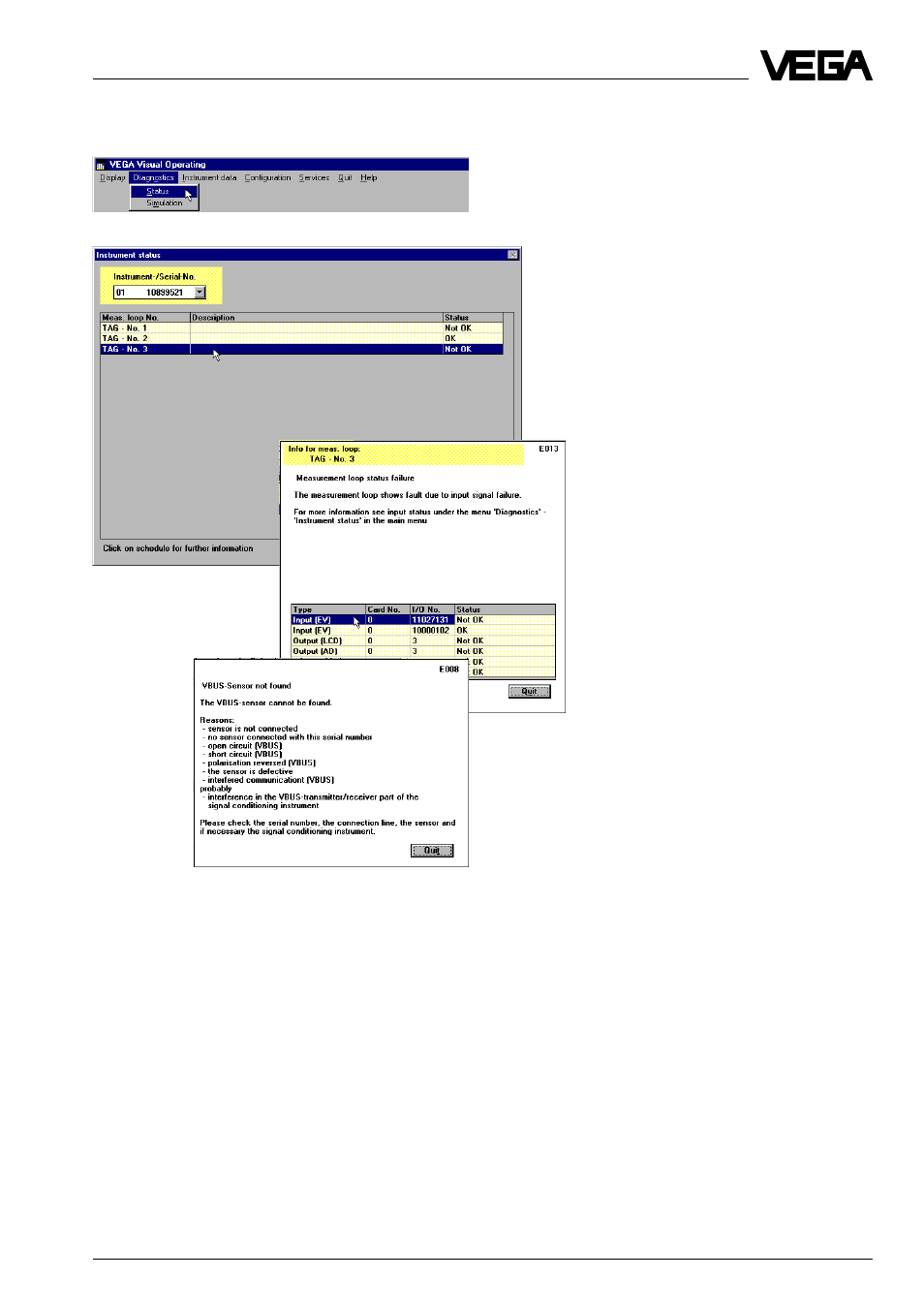

12.10 Instrument status
When you want to know if your measurement
loops function without problems, you can
click in the VVO-main menu to
Diagnostics,
then to
Status. In the window "Status“
you see dependent on the configuration
several measurement loops. Choose
the measurement loop you want to
display and click to
OK.
In the window "Info to meas.
loop…“ you will see in this exam-
ple that the input as well as the
analogue output (AA) are inter-
fered. When you now click to the
table, e.g. to
Input, you get further
information on the possible failure
reason. With
Quit you return to the
VVO-main menu.
