34 VEGA Visual Operating

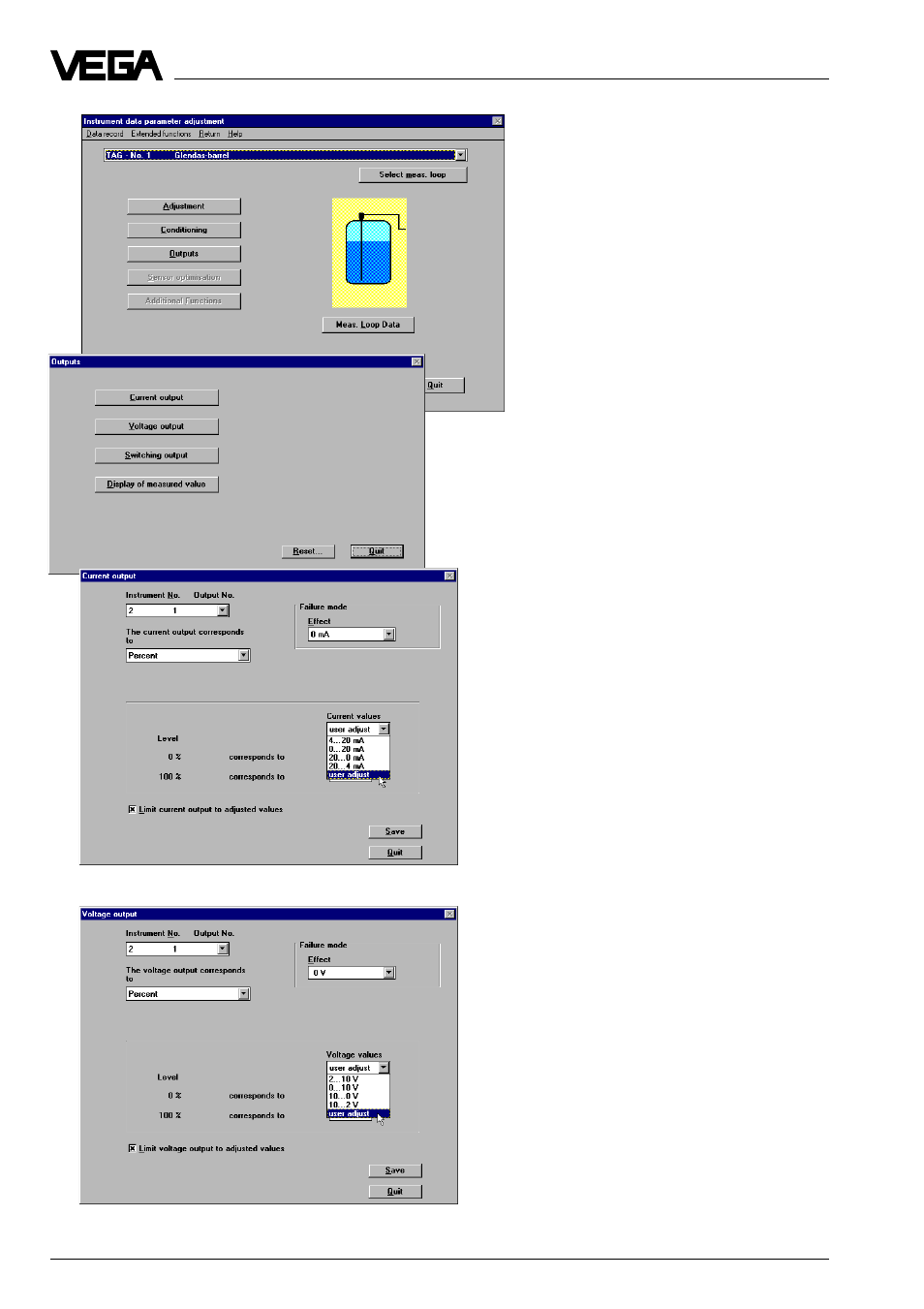

Set-up of a signal conditioning instrument VEGAMET 614
In the window "Outputs“ you first of all
click to
Current output. In the window
"Current output“ you can choose the value
of the current outputs of the sensor in
case of failure. The current values can be
inverted and user adjustment is also
possible, i.e. for 0 % and 100 % individual
values (between 0 mA and 20 mA) can be
defined.
Save when you have modified an
adjustment. Then you return to the window
"Outputs“.
In the window "Voltage output“ you can
determine the failure mode for the output
voltage. The voltage values can be in-
verted, user adjustment is also possible,
i.e. for 0 % and 100 % individual values
(between 0 V and 10 V) can be defined.
Save when you have modified an adjust-
ment.
